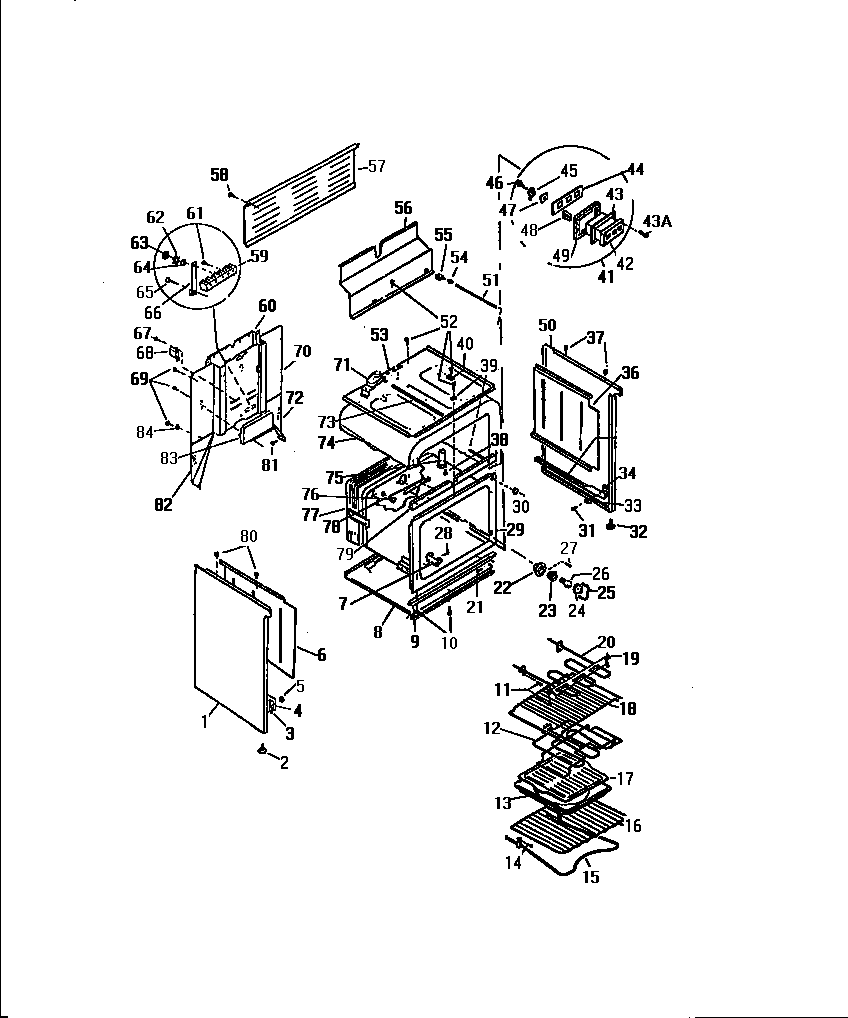

KF560GDV2 06 – BODY, SIDE PANELSadmin2025-04-26T11:48:43+00:00KF560GDV2 06 – BODY, SIDE PANELS
Products
| Position | Product |
|---|
| 1 | WCI K5024608 |
| 4 | RAIL, DWR, LH |
| 7 | BRACKET THERM. BULB |
| 8 | WCI K5276502 |
| 9 | CHANNEL, OV. SUPT. |
| 12 | WCI K1313230 |
| 13 | WCI K1317973 |
| 15 | WCI K1312553 |
| 16 | RACK (2) |
| 17 | WCI K1317972 |
| 18 | WCI K5133401 |
| 19 | HANGER |
| 20 | 5303051516 Frigidaire Broil Element |
| 22 | CUP, OVEN LT |
| 23 | 316116400 Frigidaire Oven Light Socket |
| 24 | 5304524341 Frigidaire Lens |
| 25 | RETAINING WIRE |
| 26 | WCI Q63749 |
| 28 | 08002868 Frigidaire 0 Screw Assembly |
| 29 | WCI K5024701 |
| 30 | PLUG-BUTTON 3/4`` |
| 31 | SCREW |
| 32 | LEG |
| 33 | GUIDE |
| 34 | SPACER, RAIL |
| 35 | RAIL, DWR., RH |
| 36 | RETAINER-INSUL (2) |
| 38 | SCREW |
| 39 | WASHER, PADDED |
| 40 | RETAINER |
| 41 | WCI Q160978 |
| 42 | BLOCK |
| 43 | WCI Q22652 |
| 44 | WCI Q291142 |
| 45 | WCI Q81559 |
| 46 | WCI Q414002 |
| 47 | WCI Q273020 |
| 48 | WCI Q62643 |
| 49 | WCI Q208505 |
| 50 | WCI K5024607 |
| 51 | PUSH ROD |
| 53 | WCI K5025802 |
| 54 | WCI K1322682 |
| 55 | SWITCH-DOOR |
| 56 | WCI K5029503 |
| 57 | COVER-WIRE |
| 59 | TERMINAL BLOCK |
| 60 | COVER, WIRE |
| 61 | SCREW |
| 62 | WCI Q500411 |
| 63 | WCI Q401002 |
| 64 | WASHER (6) |
| 66 | STRAP-GROUND |
| 68 | WCI K5290501 |
| 70 | WCI K5275902 |
| 71 | WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL |
| 72 | WCI K1325113 |
| 73 | ROD |
| 74 | WCI K1311331 |
| 75 | VENT TUBE |
| 76 | WCI KGM142017 |
| 77 | INSULATION-OVEN BACK |
| 79 | CHANNEL, OVEN SUPPORT |
| 80 | BUMPER |
| 81 | WCI K1154542 |
| 82 | WCI K1325114 |
| 83 | WCI K5134501 |
| 84 | WCI Q410505 |
