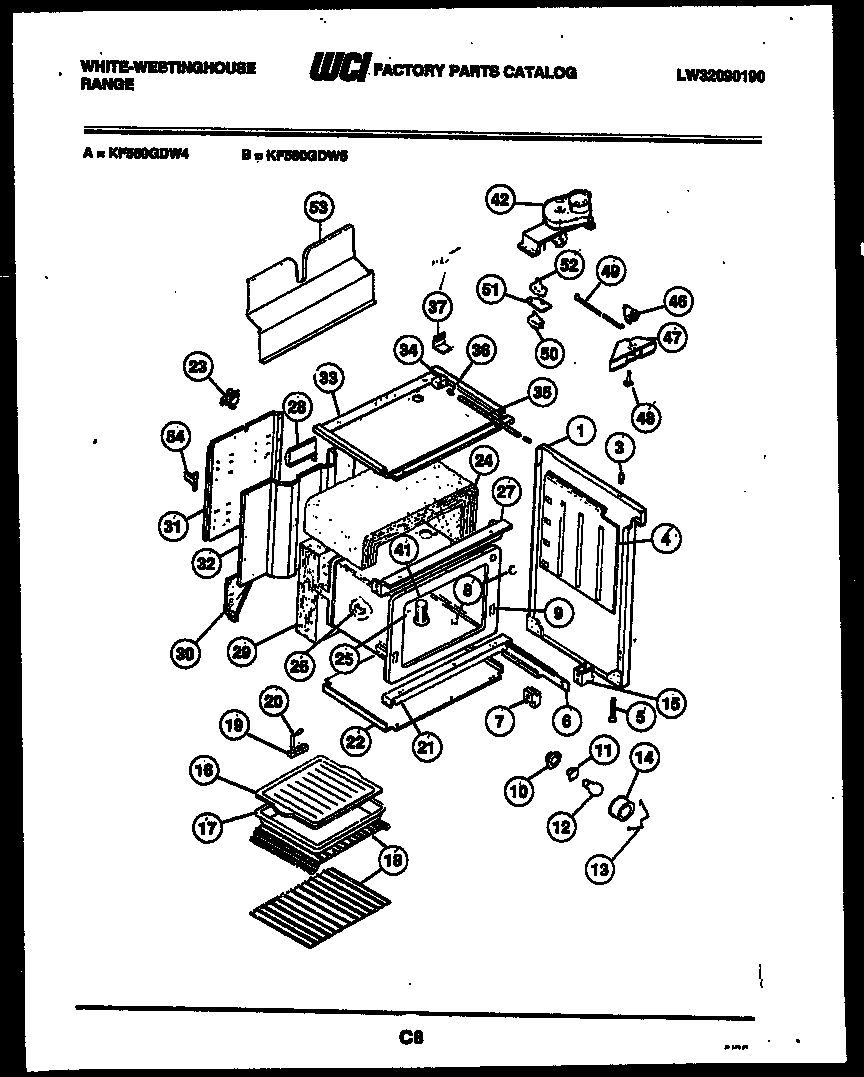

KF560GDW5 07 – BODY PARTSadmin2025-04-26T11:47:53+00:00KF560GDW5 07 – BODY PARTS
Products
| Position | Product |
|---|
| *72285 | WCI Q000160978 |
| *72285 | ANTI-TIP KIT, (NON-ILLUSTRATED) |
| 1 | SIDE PANEL, RH WHITE |
| 1A | SIDE PANEL, LH WHITE |
| 3 | BUMPER, COOKTOP (4) |
| 4 | RETAINER, INSULATION (2) |
| 5 | LEG, LEVELLER (4) |
| 6A | RAIL, DRAWER LH |
| 6 | WCI 5308015746 |
| 7 | GUIDE-DRAWER FRNT (2) |
| 8 | BUTTON-PLUG |
| 9 | WCI 3204605 |
| 10 | WCI 3051511 |
| 11 | 316116400 Frigidaire Oven Light Socket |
| 12 | 316538904 Frigidaire Oven Lamp Light |
| 13 | RETAINER-LENS |
| 14 | 5304524341 Frigidaire Lens |
| 15 | SPACER, DRAWER RAIL (2) |
| 16 | WCI 3205234 |
| 17 | WCI 3206373 |
| 17 | WCI 3200723 |
| 18A | RACK-OVEN OFFSET |
| 18 | 316067902 Frigidaire Oven Rack |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | STRAP-GROUND |
| 21 | CHANNEL - OVEN SUPPORT LOWER |
| 22 | WCI 3206275 |
| 23 | WCI K005328001 |
| 25 | PLUG BUTTON - THERMO BULB HOLE |
| 26 | BRKT - THERMO BULB |
| 27 | CHANNEL-OVEN SUPPORT UPPER |
| 28 | WCI 3051634 |
| 29 | INSULATION |
| 30 | WCI 3017481 |
| 30A | WCI 3017482 |
| 31 | WIRE, COVER |
| 32 | WCI 3017480 |
| 33 | WCI 08012542 |
| 33A | WASHER-PADDED (3) (NON-ILLUSTRATED) |
| 34 | WCI 3017799 |
| 35 | WCI 08007445 |
| 36 | WCI 08007444 |
| 37 | BRACKET-LIGHT SWITCH |
| 41 | TUBE-OVEN VENT |
| 42 | LATCH, MOTOR |
| 46 | WCI 3202387 |
| 47 | HOUSING-DOOR LATCH |
| 48 | AXLE - HINGE (2) |
| 49 | WCI 3051649 |
| 50 | WCI K001315370 |
| 51 | WCI 08003090 |
| 52 | SWITCH - UPPER |
| 53 | WCI 5303209282 |
| 54 | BALLAST-LAMP (NON-ILLUSTRATED) |
