KF57U56 01 – COMPRESSOR (REV 10)
Written by
in

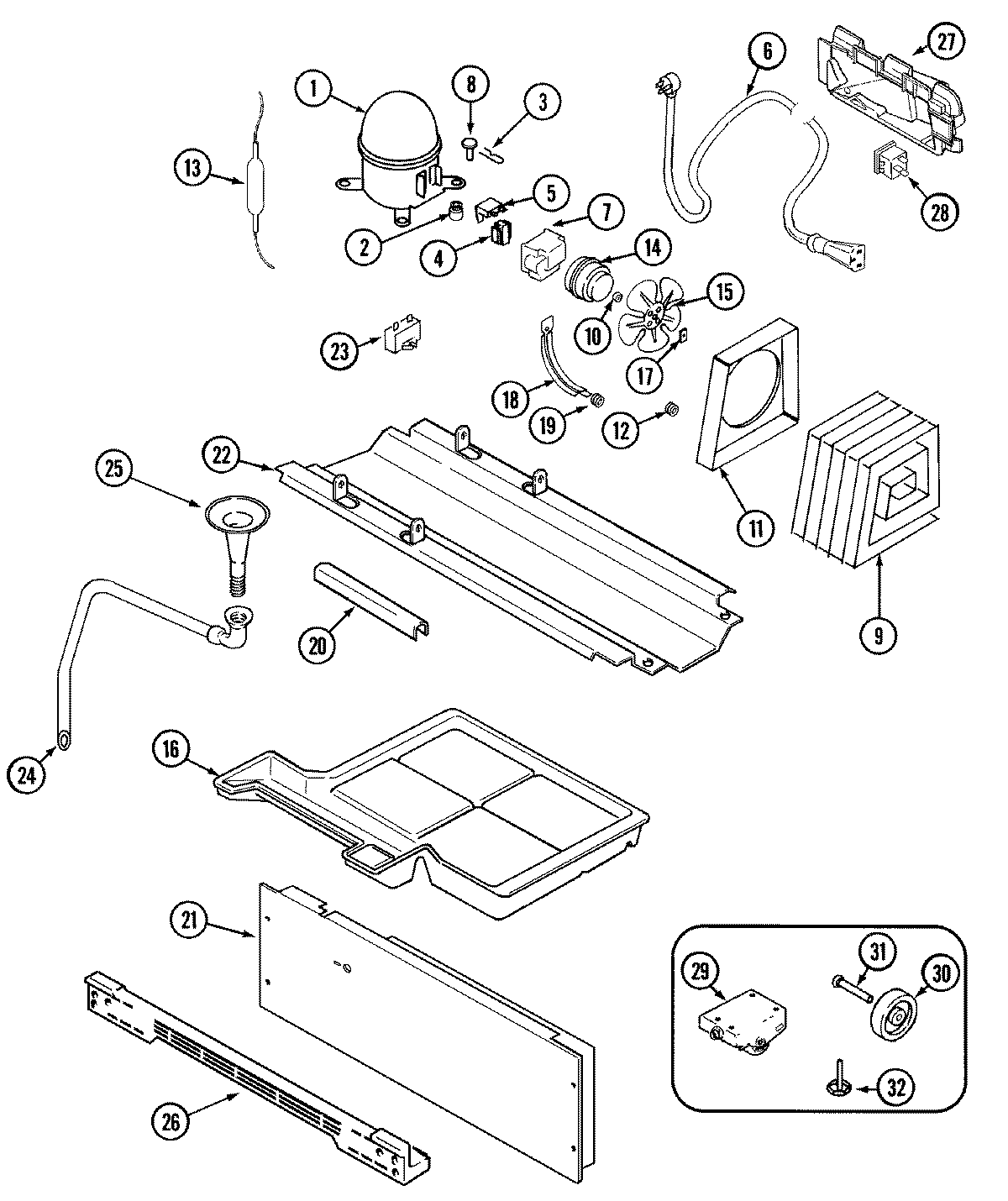

KF57U56 01 – COMPRESSOR (REV 10)
Products
Position
Product
1
MAY 61004873
1
MAY 12001726
2
WP4387558 Whirlpool Refrigerator Compressor Grommet
3
MAY 61003099
4
MAY 61001832
5
MAY 61004872
6
MAY 61004874
7
WP61002138 Whirlpool Refrigerator Terminal Cover
8
MAY 52656-2
9
MAY 61004378
9
MAY 61005452
10
MAY 61001686
11
MAY 61001941
12
MAY 61002033
13
WPW10143759 Whirlpool Dryer Filter
14
MAY 65275-33
14
MAY 61002084
15
MAY 60683-1
16
MAY 61004095
17
WP486692 Whirlpool Refrigerator Nut
18
MAY 61001414
19
GROMMET, BRACKET
20
MAY 61004584
21
MAY 65275-50
21
MAY 61004953
22
MAY 61005269
22
WP67006715 Whirlpool Refrigerator Screw
23
MAY 61004637
24
MAY 53516-9
24
MAY 61003133
25
MAY 61004751
26
SCREW
26
MAY 61004053
27
MAY 61004485
27
MAY 61004875
28
MAY 61004876
29
WP489478 Whirlpool Refrigerator Screw
29
MAY 61005232
30
WP61003826 Whirlpool Wheel
31
WP61002104 Whirlpool Refrigerator Pin Wheel
32
MAY 61002014
32
MAY 69810-1
33
MAY 12001550
←
