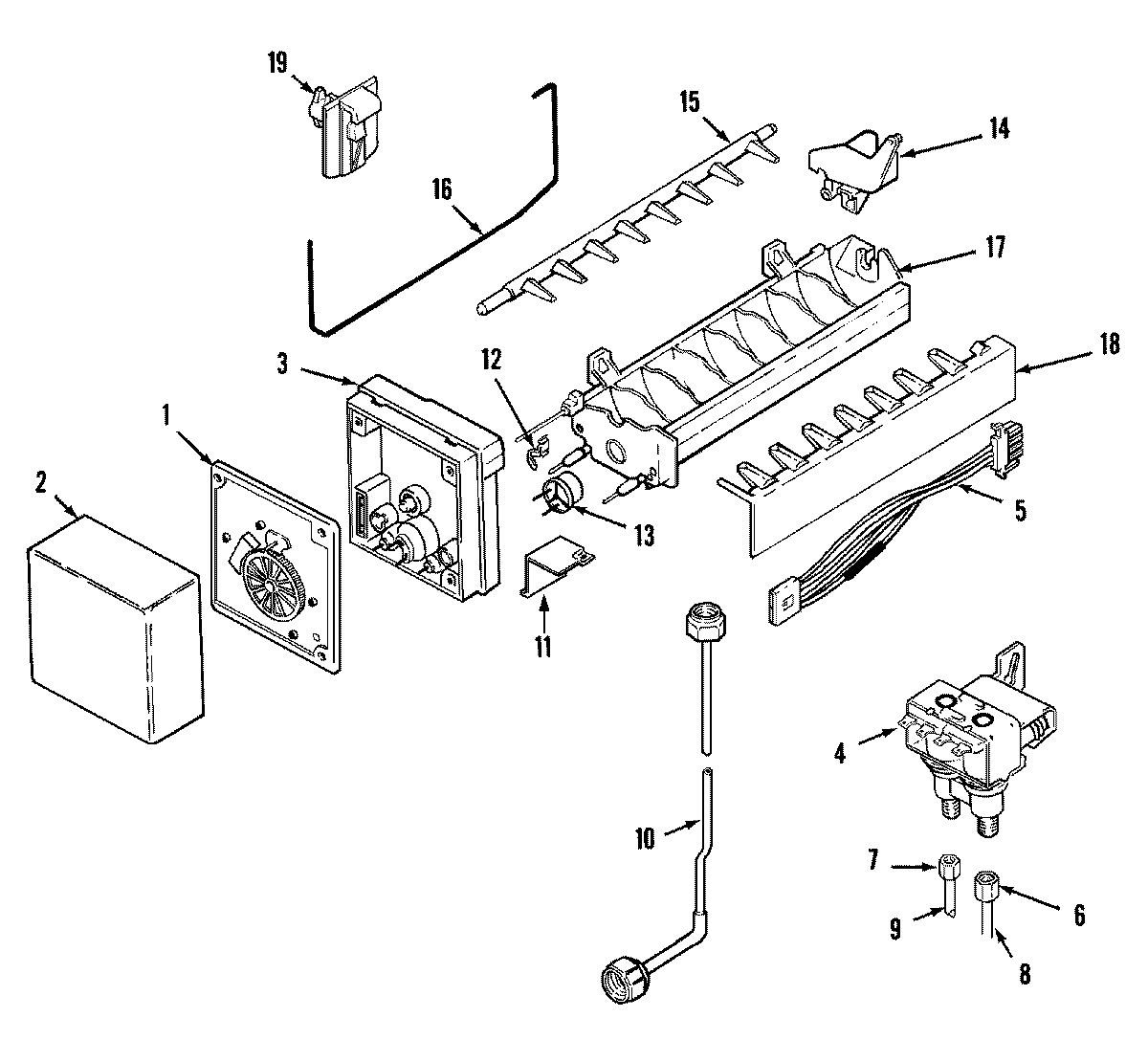

KF57U56 12 – ICE MAKER

KF57U56 12 – ICE MAKER

Written by

in

KF57U56 12 – ICE MAKER

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
1MAY 61001014
2MAY 61001982
2MAY 61004608
3WP2195914 Whirlpool Refrigerator Ice Maker Housing
3SCREW
4MAY 61004413
4MAY 61002819
5MAY 61006044
5MAY 61005573
6MAY 69583-2
7WP627018 Whirlpool Refrigerator Nut
8SEE NOTE GROUND WIRE, GREEN
9MAY 67579-26
10MAY 61001858
11BRACKET, MODULE & HEATER
11MAY 95108-1
12WP2315522 Whirlpool Refrigerator Clip
13WP627985 Whirlpool Icemaker Cycling Thermostat
13MAY 95093-1
14WP628356 Whirlpool Refrigerator Fill Cup
15WP627843 Whirlpool Refrigerator Ejector Arm
16MAY 61004136
17MAY Y06100047
18WP2182124 Whirlpool Refrigerator Stripper Arm
19WP61005028 Whirlpool Refrigerator Support
