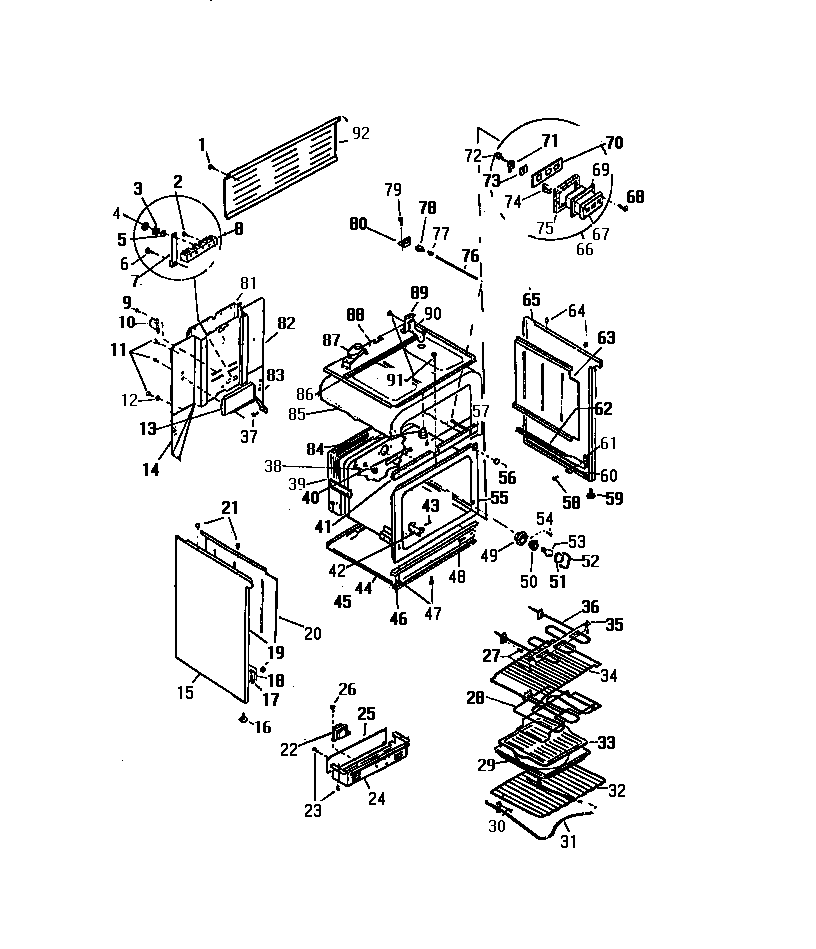

KF590HDD1 07 – BODY & RACKSadmin2025-04-26T11:49:32+00:00KF590HDD1 07 – BODY & RACKS
Products
| Position | Product |
|---|
| 3 | WCI Q500411 |
| 4 | WCI Q401002 |
| 5 | WASHER (6) |
| 7 | STRAP-GROUND |
| 8 | TERMINAL BLOCK |
| 10 | WCI K5290501 |
| 12 | WCI Q410505 |
| 13 | WCI K5134501 |
| 14 | WCI K1325114 |
| 15 | END PANEL, LH, ALMOND |
| 18 | RAIL, DWR, LH |
| 28 | WCI K1313230 |
| 29 | WCI K1317973 |
| 31 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 32 | RACK (2) |
| 33 | WCI K1317972 |
| 34 | WCI K5133401 |
| 35 | HANGER |
| 36 | 5303051516 Frigidaire Broil Element |
| 38 | WCI KGM142017 |
| 39 | INSULATION-OVEN BACK |
| 41 | WCI K1323502 |
| 42 | BRACKET THERM. BULB |
| 45 | WCI K5276502 |
| 46 | CHANNEL, OV. SUPT. |
| 49 | CUP, OVEN LT |
| 50 | 316116400 Frigidaire Oven Light Socket |
| 51 | 5304524341 Frigidaire Lens |
| 52 | RETAINING WIRE |
| 53 | WCI Q63749 |
| 54 | 08002868 Frigidaire 0 Screw Assembly |
| 55 | WCI K5024701 |
| 56 | PLUG-BUTTON 3/4`` |
| 57 | SCREW |
| 58 | SCREW |
| 59 | LEG |
| 60 | GUIDE |
| 61 | SPACER, RAIL |
| 62 | RAIL, DWR., RH |
| 63 | RETAINER-INSUL (2) |
| 64 | BUMPER |
| 65 | END PANEL, RH, ALMOND |
| 66 | WCI Q160978 |
| 67 | BLOCK |
| 68 | SCREW |
| 69 | WCI Q22652 |
| 70 | WCI Q291142 |
| 71 | WCI Q81559 |
| 72 | WCI Q414002 |
| 73 | WCI Q273020 |
| 74 | WCI Q62643 |
| 75 | WCI Q208505 |
| 76 | WCI K1322683 |
| 77 | WCI K1322682 |
| 78 | SWITCH-DOOR |
| 80 | WCI K1311371 |
| 81 | COVER, WIRE |
| 82 | WCI K5275902 |
| 83 | WCI K1325113 |
| 84 | WCI K5055201 |
| 85 | WCI K1311331 |
| 86 | WCI K5303702 |
| 88 | WCI K5025704 |
| 89 | WCI K5130701 |
| 90 | WCI K5130601 |
| 92 | COVER-WIRE |
