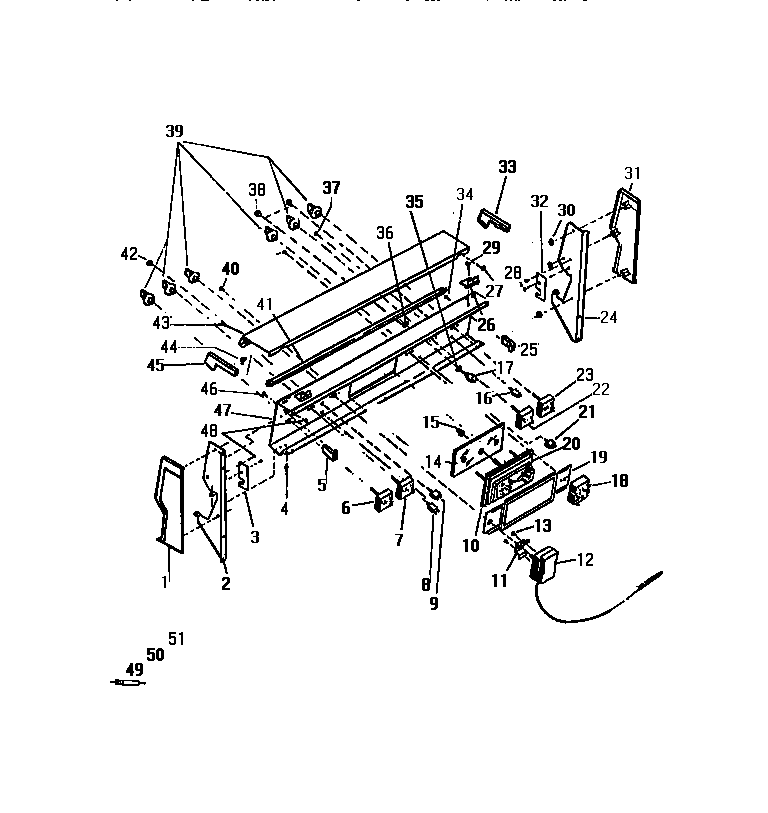

KF590HDD2 02 – BACKGUARD

Products

Position	Product
1	WCI K5030401
2	WCI K5025201
4	WCI K1164566
9	LIGHT, SIGNAL (CLEAN & OVEN 250V.)
10	BEZEL
11	WCI K5267103
12	WCI K1324562
13	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
14	WCI K1167678
15	KNOB, TIMER
16	LIGHT SIGNAL (OVEN 250V)
17	WCI K5057501
18	WCI K5328201
19	WCI K5296301
20	WCI K5033001
21	LIGHT,SIGNAL (SURFACE UNIT 125V)
22	WCI K5130501
23	5303935086 Frigidaire Oven Top Burner Switch Kit
24	WCI K5025202
25	WCI K5046401
26	WCI K5297501
27	5308014215 Frigidaire Oven Screw
28	08002868 Frigidaire 0 Screw Assembly
29	WCI K1164550
30	NUT (3)
31	WCI K5030402
32	WCI K5025001
33	WCI K5033502
35	WCI Q501442
36	WCI Q501444
39	KNOB (6)
40	SCREW
41	WCI K1313090
42	LENS
43	WCI K5030702
44	WCI K5033301
45	WCI K5033501
46	SCREW
47	WCI K5327701
49	WCI K5044001
50	WCI K5044101
51	WCI K5044102
