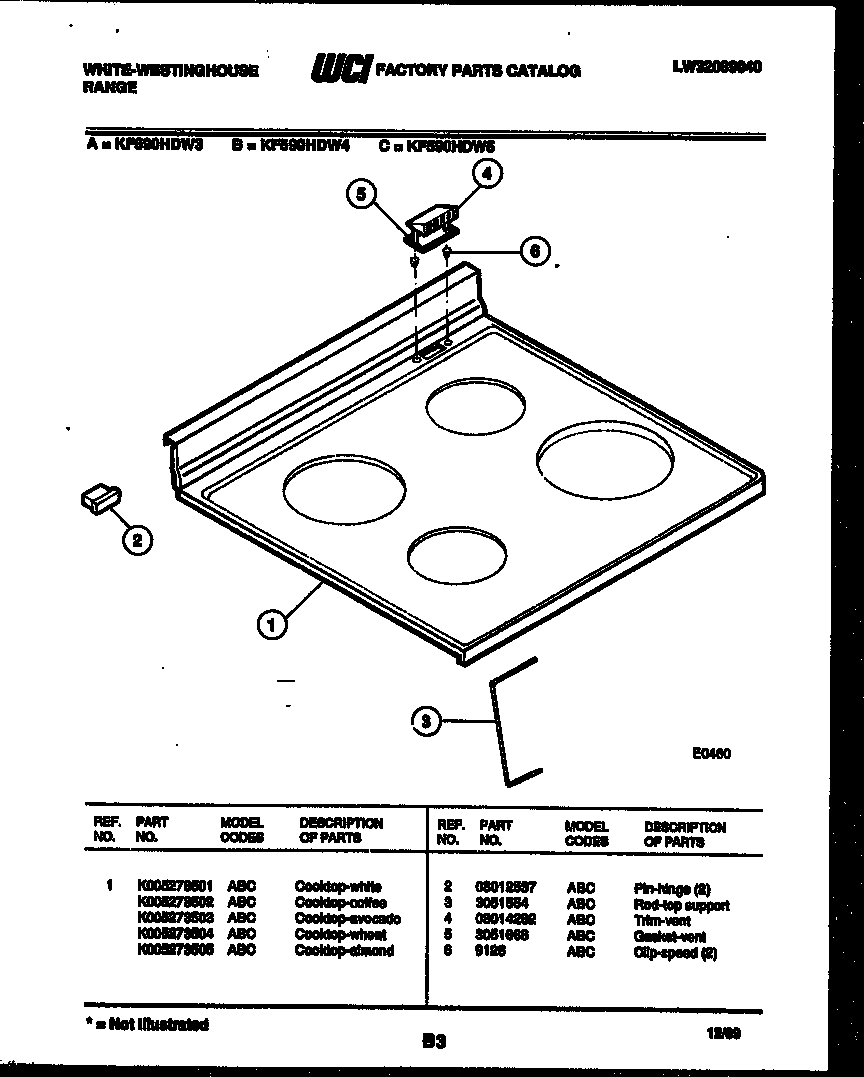

KF590HDD3 03 – COOKTOP PARTS
Products
| Position | Product |
|---|---|
| 1 | WCI K005273505 |
| 2 | PIN, HINGE (2) |
| 3 | ROD-TOP SUPPORT |
| 4 | WCI 08014262 |
| 5 | GASKET, OVEN VENT TUBE |
| 6 | CLIP-CAPILLARY (NON-ILLUSTRATED) |
