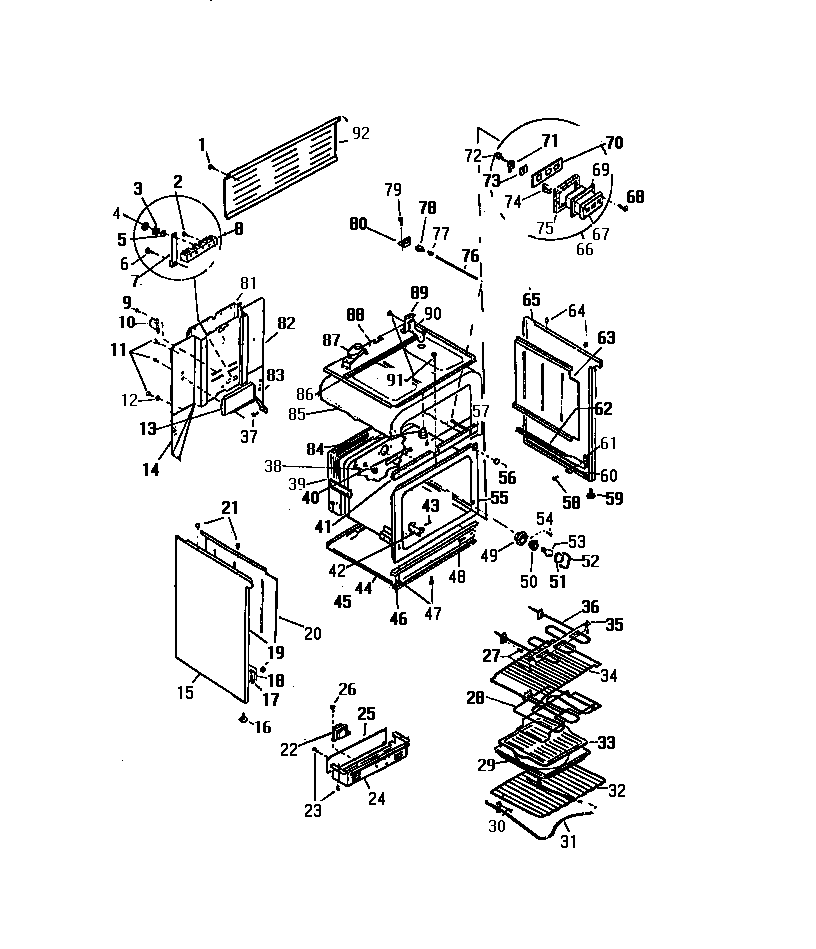

KF590HDH0 07 – BODY & RACKS

Products

Position	Product
3	WCI Q500411
4	WCI Q401002
5	WASHER (6)
7	STRAP-GROUND
8	TERMINAL BLOCK
12	WCI Q410505
14	WCI K1325114
15	PANEL-END RH-WHEAT
18	RAIL, DWR, LH
22	WCI Q52613
24	WCI K1315121
25	WCI K1303601
26	WCI K1164563
28	WCI K1313230
29	WCI K1317973
31	5303051519 Frigidaire Oven 2600W Bake Element
32	RACK (2)
33	WCI K1317972
34	WCI K5133401
35	HANGER
36	5303051516 Frigidaire Broil Element
38	WCI KGM142017
39	INSULATION-OVEN BACK
41	WCI K1323502
42	BRACKET THERM. BULB
44	WCI K1317644
46	CHANNEL, OV. SUPT.
49	CUP, OVEN LT
50	316116400 Frigidaire Oven Light Socket
51	5304524341 Frigidaire Lens
52	RETAINING WIRE
53	WCI Q63749
54	08002868 Frigidaire 0 Screw Assembly
55	WCI K5024701
56	PLUG-BUTTON 3/4“
57	SCREW
58	SCREW
59	LEG
60	GUIDE
61	SPACER, RAIL
62	RAIL, DWR., RH
63	RETAINER-INSUL (2)
64	BUMPER
65	WCI K5024609
66	WCI Q160978
67	BLOCK
68	SCREW
69	WCI Q22652
70	WCI Q291142
71	WCI Q81559
72	WCI Q414002
73	WCI Q273020
74	WCI Q62643
75	WCI Q208505
76	WCI K1322683
77	WCI K1322682
78	SWITCH-DOOR
80	WCI K1311371
81	COVER, WIRE
82	WCI K5275902
83	WCI K1325113
84	WCI K5055201
85	WCI K1311331
86	WCI K5303702
88	WCI K5025704
89	WCI K5130701
90	WCI K5130601
92	COVER-WIRE
