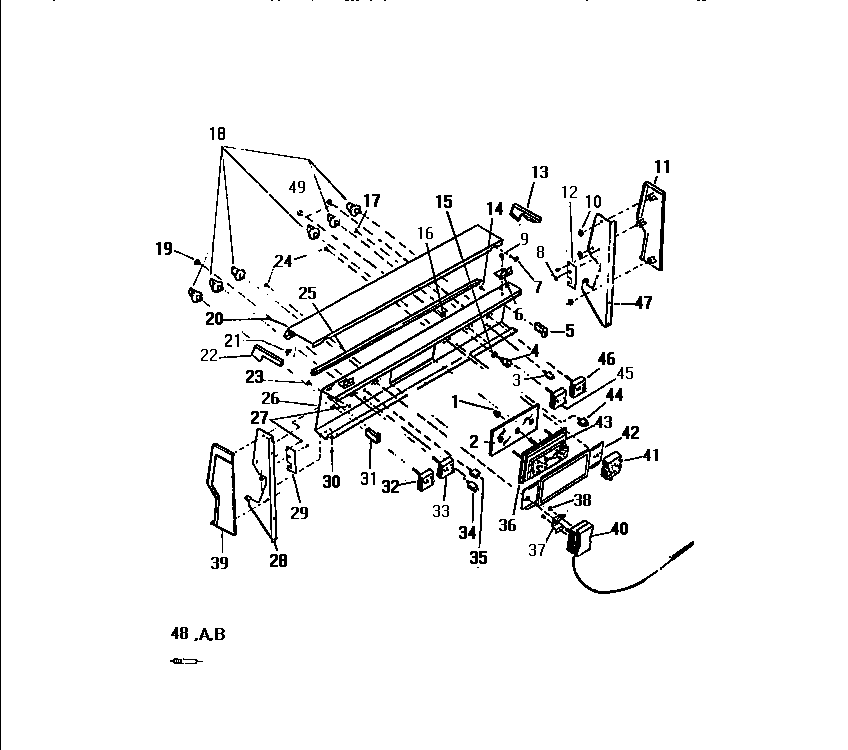

KF590HDH1 02 – BACKGUARD

Products

Position	Product
1	KNOB, TIMER
2	WCI K1167678
4	WCI K5057501
6	WCI K5297501
7	5308014215 Frigidaire Oven Screw
8	08002868 Frigidaire 0 Screw Assembly
9	WCI K1164550
10	NUT (3)
11	WCI K5030402
13	WCI K5033502
15	WCI Q501442
16	WCI Q501444
18	KNOB (6)
20	WCI K5030702
21	WCI K5033301
22	WCI K5033501
23	SCREW
24	SCREW
25	WCI K1313090
26	WCI K5273302
28	WCI K5025201
29	WCI K5025001
30	WCI K1164566
31	WCI K5046401
34	LIGHT SIGNAL (OVEN 250V)
35	LIGHT, SIGNAL (CLEAN & OVEN 250V.)
36	BEZEL
37	WCI K5267103
38	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
39	WCI K5030401
40	WCI K1324562
41	WCI K5067801
42	WCI K5296301
43	WCI K5033001
44	LIGHT,SIGNAL (SURFACE UNIT 125V)
45	WCI K5130501
46	5303935086 Frigidaire Oven Top Burner Switch Kit
47	WCI K5025202
48B	WCI K5044102
48	WCI K5044001
48A	WCI K5044101
49	LENS
