KF590HDH2 05 – DOOR LATCH ASSEMBLY

KF590HDH2 05 – DOOR LATCH ASSEMBLY

Written by

in

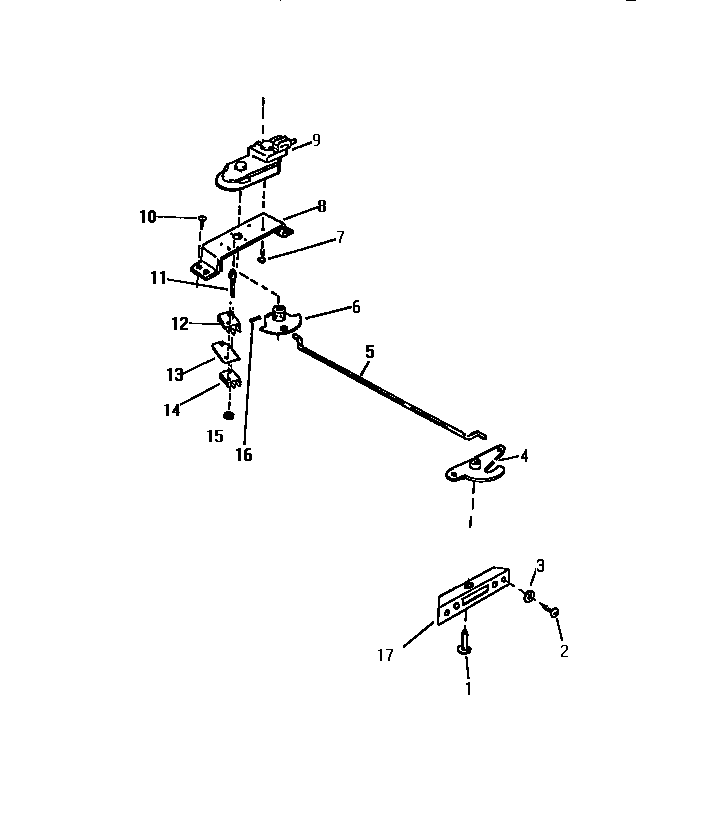

KF590HDH2 05 – DOOR LATCH ASSEMBLY

Products

PositionProduct
1AXLE
2WCI K1164550
3WASHER, PADDED
4WCI K5260202
5WCI K5271201
6WCI K5151605
7WCI K5151604
8SUPPORT
9WCI K5151603
1008002868 Frigidaire 0 Screw Assembly
11WCI K5151610
12SWITCH-LOWER
13INSULATOR
14WCI K1167190
155303013272 Frigidaire Oven Nut
16WCI K5151606
17HOUSING, DOOR LATCH
