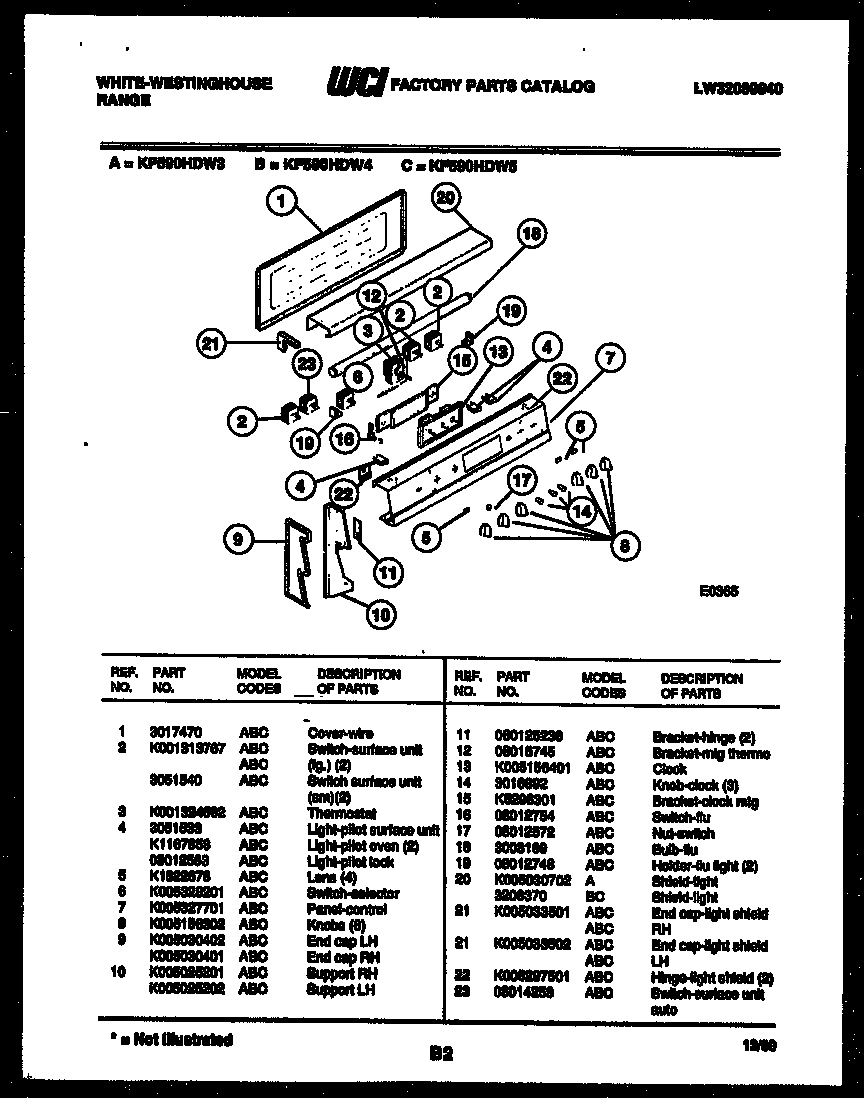

KF590HDH3 02 – CONTROL PANEL

Products

Position	Product
1	WCI 3017470
2A	5303935086 Frigidaire Oven Top Burner Switch Kit
3	WCI K001324562
4B	WCI 08012563
4	LIGHT-PILOT SURFACE UNIT
4A	LIGHT SIGNAL (OVEN 250V)
5	LENS
6	WCI K005328201
7	WCI K005327701
8	KNOBS (6)
9A	WCI K005030401
9	WCI K005030402
10A	WCI K005025202
10	WCI K005025201
11	WCI 080125238
12	BRACKET-THERM MTG
13	WCI K005156401
14	WCI 3016892
15	WCI K5296301
16	SWITCH - FLUORESCENT
17	NUT-KNURLED
18	WCI 3008189
19	RECEPTACLE-LAMP, RH / LH
20	WCI K005030702
21	WCI K005033501
21A	WCI K005033502
22	WCI K005297501
23	SWITCH S/U-AUTO BRNR
