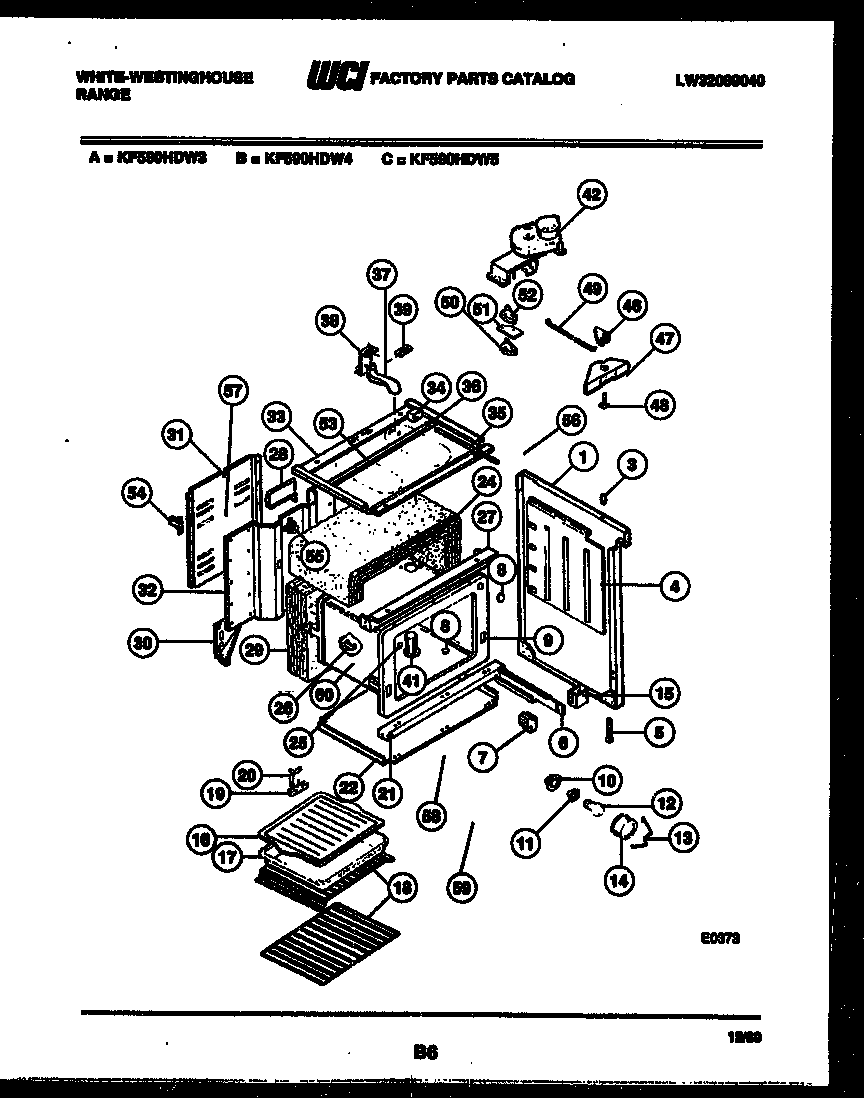

KF590HDV4 06 – BODY PARTS

Products

Position	Product
1B	PANEL-END RH AVOC
1C	PANEL-END LH AVOC
3	BUMPER
4	WCI K001325388
5	LEG, LEVELLER (4)
6A	WCI K005269902
6	WCI 08015746
7	GUIDE-DRAWER FRNT (2)
8	WCI 3051784
9	WCI 3204605
10	WCI K001325530
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI K001325529
14	5304524341 Frigidaire Lens
15	SPACER-DRAWER RAIL (2)
16	WCI 3205234
17	WCI 3206373
18	316067902 Frigidaire Oven Rack
18A	WCI K005133401
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	CHANNEL - OVEN SUPPORT LOWER
22	WCI 3203574
24	WCI K001311331
25	PLUG BUTTON - THERMO BULB HOLE
26	BRACKET-THERMO BULB (2)
27B	ANTI-TIP KIT, (NON-ILLUSTRATED)
27	WCI K001318075
28	WCI K5134501
29	INSULATION-OVEN BACK
30A	GUSSET REAR, LH
30	GUSSET, RH
31	COVER - WIRE
32	WCI 3017480
33	WCI K005025704
33A	WASHER-PADDED
34	WCI 3017799
35	WCI K001167847
36	WCI 08007444
37	WCI K005130601
38	WCI K005130701
39	GASKET, OVEN VENT TUBE
41	WCI K005055201
42	WCI 3051650
46	WCI K005260202
47	WCI K001324830
48	AXLE-HINGE (2)
49	WCI K005271201
50	WCI K001315370
51	INSULATOR (2)
52	WCI K001167190
53	WCI K005303702
54	BALLAST-LAMP (NON-ILLUSTRATED)
55	WCI K005328001
