KF590HDW2 05 – DOOR LATCH ASSEMBLY – Aparts

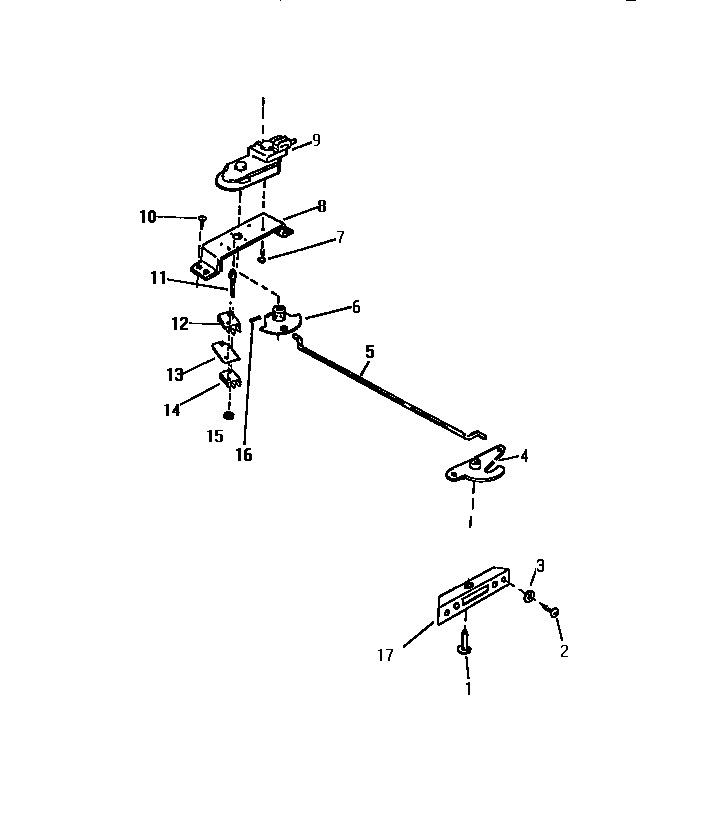

KF590HDW2 05 – DOOR LATCH ASSEMBLY

Products

Position	Product
1	AXLE
2	WCI K1164550
3	WASHER, PADDED
4	WCI K5260202
5	WCI K5271201
6	WCI K5151605
7	WCI K5151604
8	SUPPORT
9	WCI K5151603
10	08002868 Frigidaire 0 Screw Assembly
11	WCI K5151610
12	SWITCH-LOWER
13	INSULATOR
14	WCI K1167190
15	5303013272 Frigidaire Oven Nut
16	WCI K5151606
17	HOUSING, DOOR LATCH
