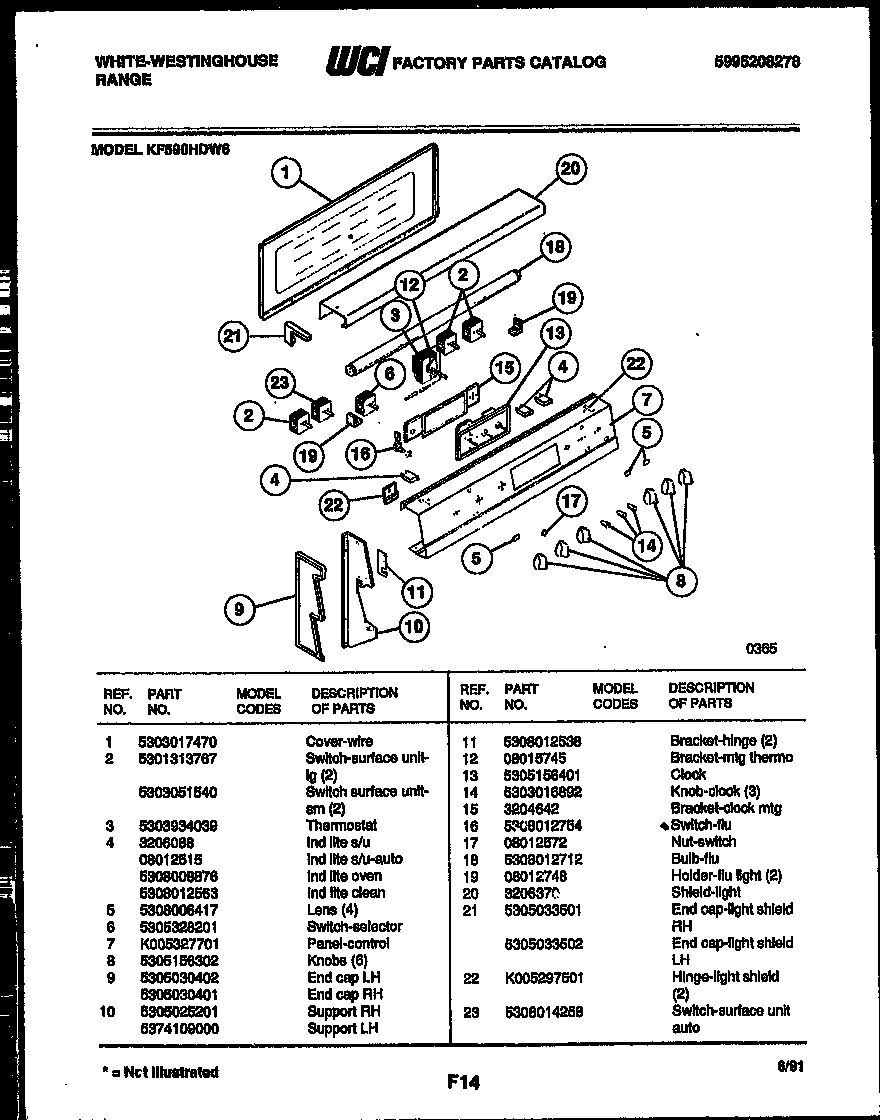

KF590HDW6 02 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4B	INDICATOR LIGHT, OVEN
4C	LIGHT-PILOT OVEN & CLEAN
4A	IND LITE OVEN
4	IND LITE SURF UNIT
5	LENS (2)
6	WCI 5305328201
7	WCI K005327701
8	KNOBS (6)
9	WCI 5305030402
9A	WCI 5305030401
10A	SUPPORT LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
12	BRACKET-THERM MTG
13	WCI 5305156401
14	WCI 5303016892
15	BRACKET-MTG CLOCK
16	SWITCH, FLUORESCENT
17	NUT-KNURLED
18	LAMP-FLUORESCENT, BACKGROUND
19	RECEPTACLE-LAMP, RH / LH
20	WCI 3206370
21	WCI 5305033501
21A	WCI 5305033502
22	WCI K005297501
23	SWITCH, S/U AUTO
