KF615DTE1 2 – Aparts

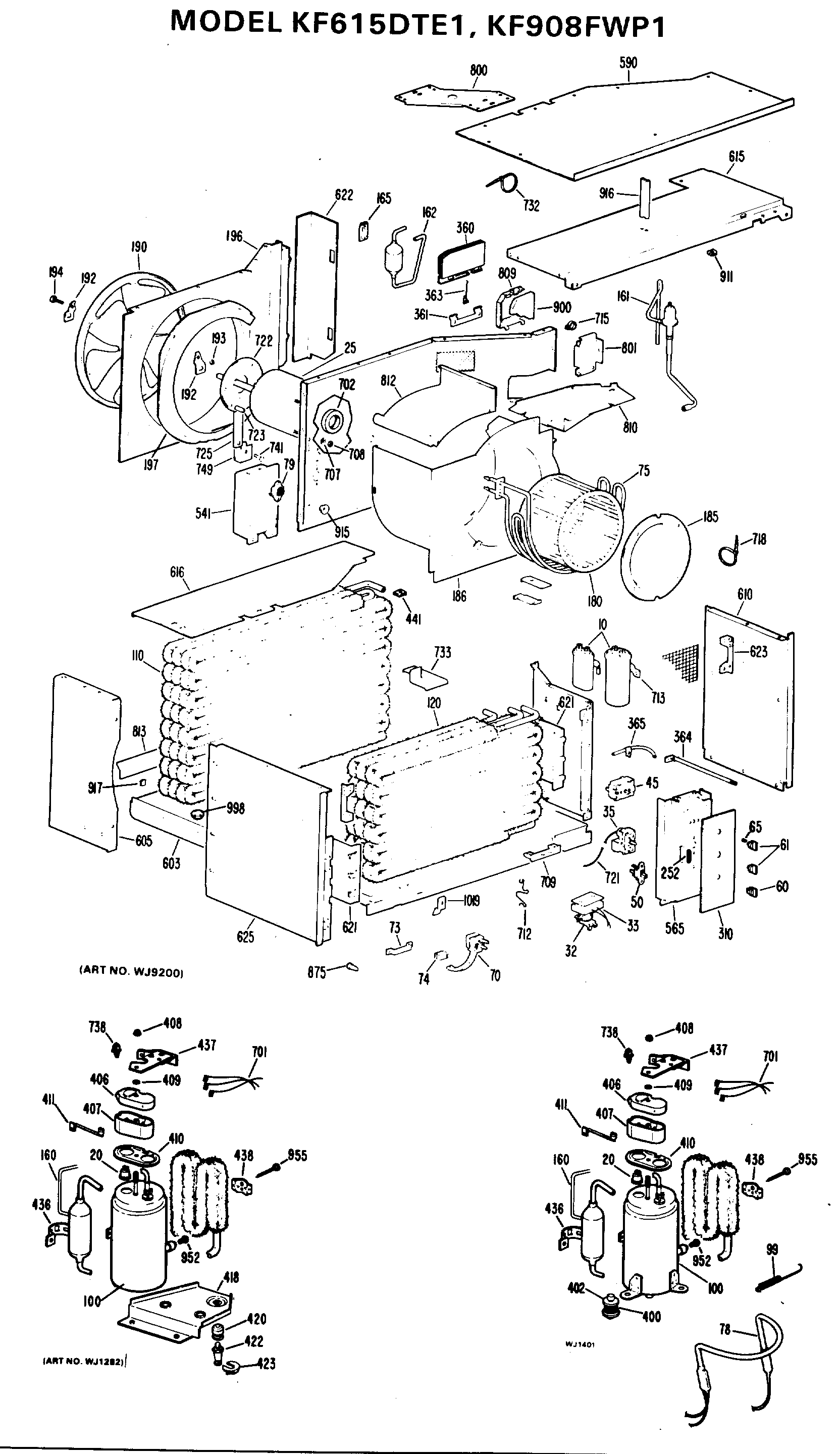

KF615DTE1 2

Products

Position	Product
10	CAPACITOR 5 MFD
10	GEN WJ20X0587
20	GEN WJ23X0093
35	GEN WJ28X0512
45	GEN WJ26X0219
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	GEN WJ35X0102
73	CLAMP POWER CORD
74	GROMMET CORD POWER
160	CAPILLARY .031 CUT TO 25
160	CAPILLARY .042 CUT TO 15
160	CAPILLARY .054 CUT TO 16
165	GEN WJ62X0220
165	GEN WJ56X0051
165	GEN WJ56X0036
180	INDOOR BLOWER
186	GEN WJ76X0231
190	GEN WJ73X0147
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0236
197	BAFFLE
310	GEN WJ07X0677
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	GEN WJ14X0096
365	GEN WJ14X0095
400	GEN WJ02X0259
400	GEN WJ02X0257
400	GEN WJ02X0258
402	GEN WJ01X0347
406	GEN WJ79X0302
407	GEN WJ79X0301
408	GEN WJ01X0292
410	GEN WJ43X0333
411	CONDUCTOR TERMINAL CAP
436	ACCUMULATOR CLAMP
441	GEN WJ02X0479
565	GEN WJ79X0356
590	GEN WJ79X0232
603	GEN WJ89X0087
610	GEN WJ82X0142
615	GEN WJ79X0348
616	GEN WJ79X0374
621	GEN WJ81X0068
622	GEN WJ82X0149
625	GEN WJ82X0144
701	GEN WJ36X0016
702	GEN WJ43X0351
708	GEN WJ01X0445
709	SINK HEAT
713	GEN WJ03X0313
713	GEN WJ03X0279
715	GEN WJ02X0410
715	GEN WJ02X0392
718	GEN WJ02X0416
721	SLEEVE CAPILLARY THERM
732	WIRE STRAP
800	GEN WJ65X0321
801	PLATE
809	TUBE SEAL CLAMP
810	COVER EVAPORATOR
813	GEN WJ70X0152
875	GEN WJ01X0737
900	GEN WJ60X0018
916	SPACER
917	GEN WJ02X0263
952	SCREW 10-16 X 5/8" HEX
998	GEN WJ01X0402
998	PLUG 30FR HOLD DOWN BOLT
1019	CLIP CHASSIS TO CABINET
