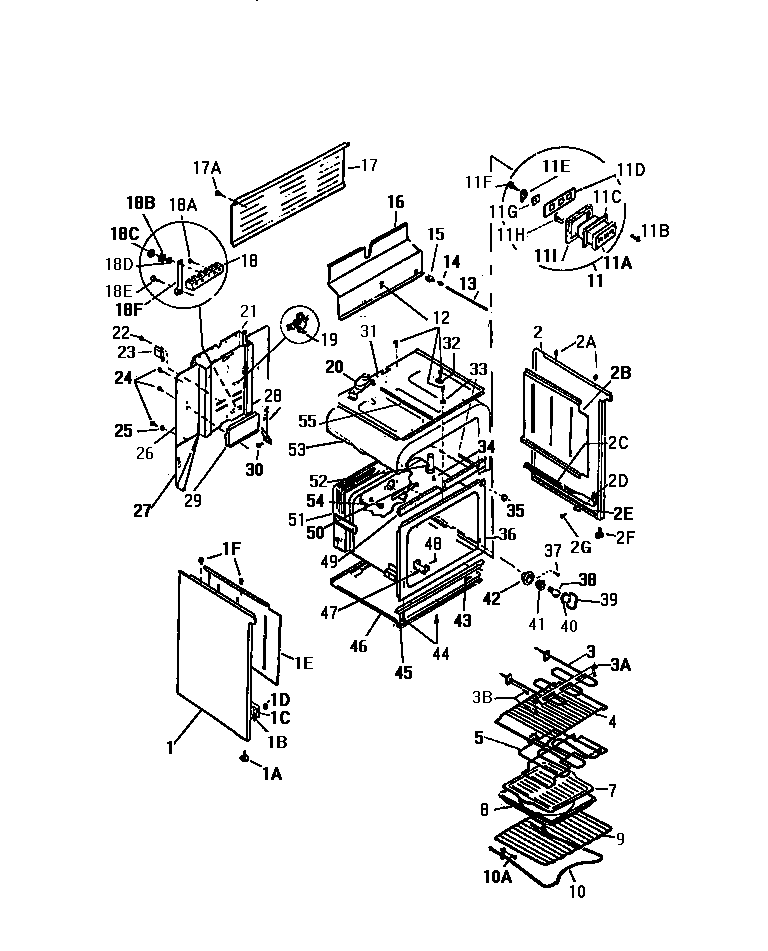

KF650GDD3 06 – BODY, SIDE PANELSadmin2025-04-26T11:00:58+00:00KF650GDD3 06 – BODY, SIDE PANELS
Products
| Position | Product |
|---|
| 1C | RAIL, DWR, LH |
| 1E | WCI K1326388 |
| 1 | END PANEL, LH, ALMOND |
| 2F | LEG |
| 2D | SPACER, RAIL |
| 2E | GUIDE |
| 2C | RAIL, DWR., RH |
| 2A | BUMPER |
| 2 | END PANEL, RH, ALMOND |
| 2G | SCREW |
| 2B | WCI K1375388 |
| 3 | 5303051516 Frigidaire Broil Element |
| 3A | WCI K1314458 |
| 4 | WCI K5133401 |
| 5 | WCI K1313230 |
| 7 | WCI K1317972 |
| 8 | WCI K1317973 |
| 9 | RACK (2) |
| 10 | WCI K1312863 |
| 11I | WCI Q208506 |
| 11E | WCI Q81159 |
| 11C | WCI Q22662 |
| 11F | WCI Q414002 |
| 11 | WCI Q160978 |
| 11D | WCI Q291142 |
| 11G | WCI Q273020 |
| 11H | WCI Q62643 |
| 11A | BLOCK |
| 13 | PUSH ROD |
| 14 | WCI K1322682 |
| 15 | WCI K5328101 |
| 16 | WCI K5029505 |
| 17 | COVER-WIRE |
| 18 | TERMINAL BLOCK |
| 18C | WCI Q401002 |
| 18F | STRAP-GROUND |
| 18D | WASHER (6) |
| 18B | WCI Q500411 |
| 19 | WCI K5328001 |
| 20 | WCI 0000000 |
| 21 | COVER, WIRE |
| 23 | WCI K5290501 |
| 25 | WCI Q410505 |
| 26 | WCI K5275904 |
| 27 | GUSSET REAR, LH |
| 28 | GUSSET, RH |
| 29 | WCI K5134501 |
| 30 | WCI K1164540 |
| 31 | WCI K5025802 |
| 32 | RETAINER |
| 33 | WASHER, PADDED |
| 34 | SCREW |
| 35 | PLUG-BUTTON 3/4`` |
| 36 | WCI K5024701 |
| 38 | WCI Q63749 |
| 39 | RETAINING WIRE |
| 40 | WCI K1326628 |
| 41 | WCI K1326527 |
| 42 | WCI K1325630 |
| 43 | SCREW |
| 45 | WCI K1315106 |
| 46 | WCI K5276502 |
| 47 | BRACKET THERM. BULB |
| 48 | 08002868 Frigidaire 0 Screw Assembly |
| 49 | CHANNEL, OVEN SUPPORT |
| 51 | WCI K5066901 |
| 52 | VENT TUBE |
| 53 | WCI K1311331 |
| 54 | WCI KGM142017 |
| 55 | ROD |
