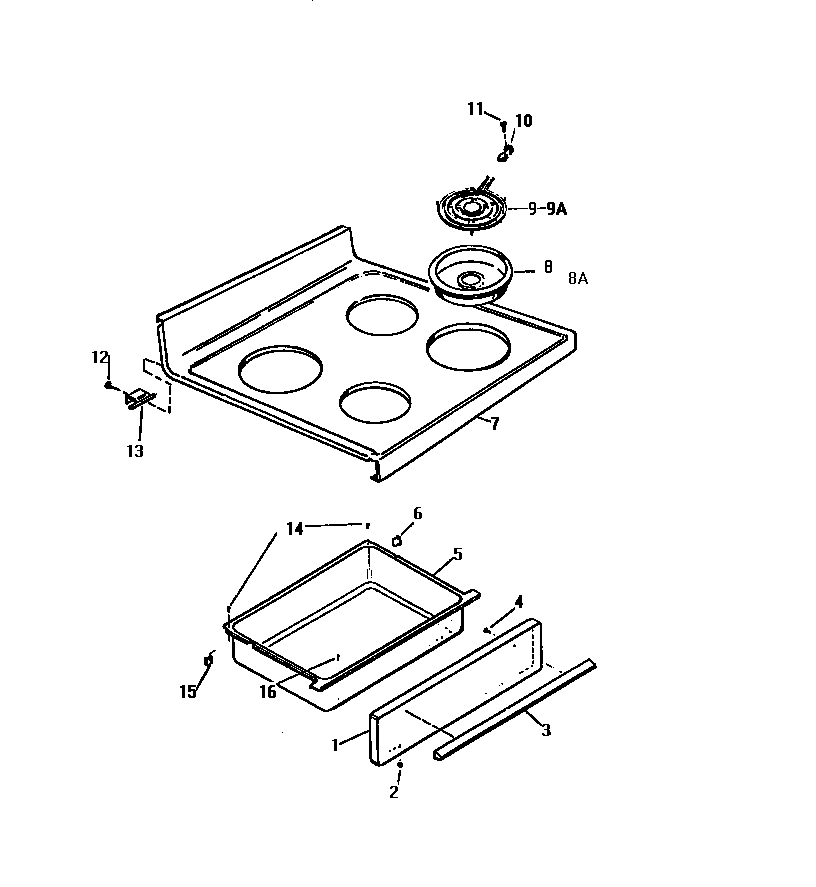

KF650GDF1 03 – TOP, DRAWER

Products

Position	Product
1	WCI K1325097
2	5303013272 Frigidaire Oven Nut
3	HANDLE
5	DRAWER
7	PLATEFORM FR. AV.
8A	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
8	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
9	318372211 Frigidaire Oven 6" Electric Range Burner Kit
9A	316442301 Frigidaire Oven 8 Coil Element 2600W
10	5303935058 Frigidaire Oven Burner Receptacle Kit
11	5308014215 Frigidaire Oven Screw
12	08002868 Frigidaire 0 Screw Assembly
13	WCI K5024901
15	GUIDE
16	SCREW
