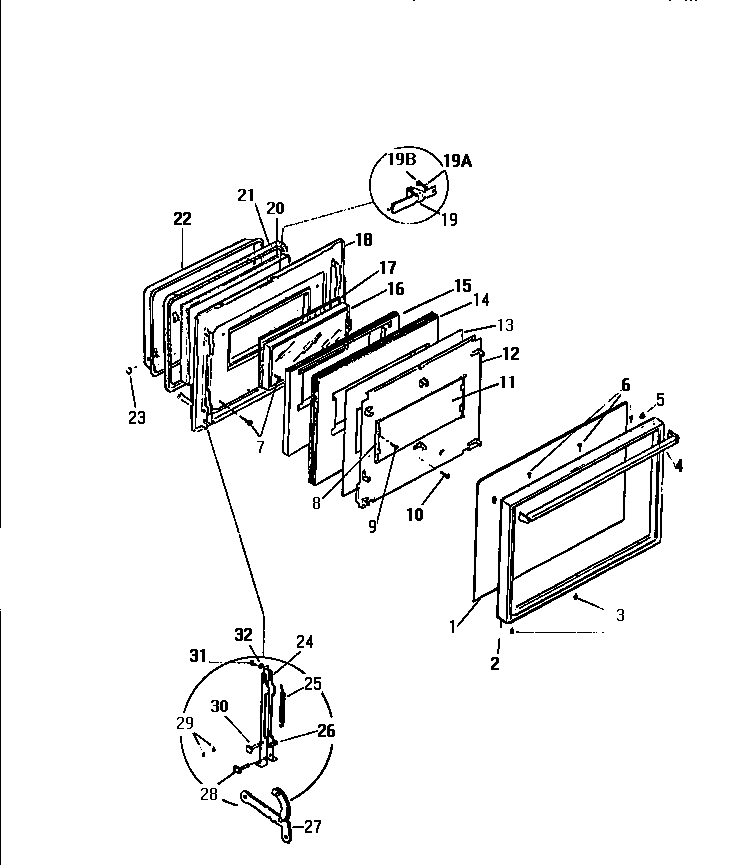

KF650GDF2 04 – DOOR

Products

Position	Product
1	WCI K5027201
2	FRAME – CHROME OVEN DOOR
4	HANDLE ASSY (INCLUDES STANCHION)
5	SCREW
8	RETAINER, GLASS (2)
9	08002868 Frigidaire 0 Screw Assembly
10	WCI K1164557
11	WCI K1317924
12	WCI KK5276901
13	WCI K1318825
14	WCI K1322652
15	WCI K1322651
16	WCI K1322068
17	WCI K1322069
18	WCI K1324721
19	STRIKE ASSEMBLY
20	WCI K1322622
21	GASKET
22	WCI K1323752
23	WCI KGM142001
24	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
25	WCI K1302501
26	ROLLER PACKAGE-OVEN DOOR (2)
27	ARM ASSY.
28	AXLE
30	RIVET
31	WCI K1164550
32	WASHER, PADDED
