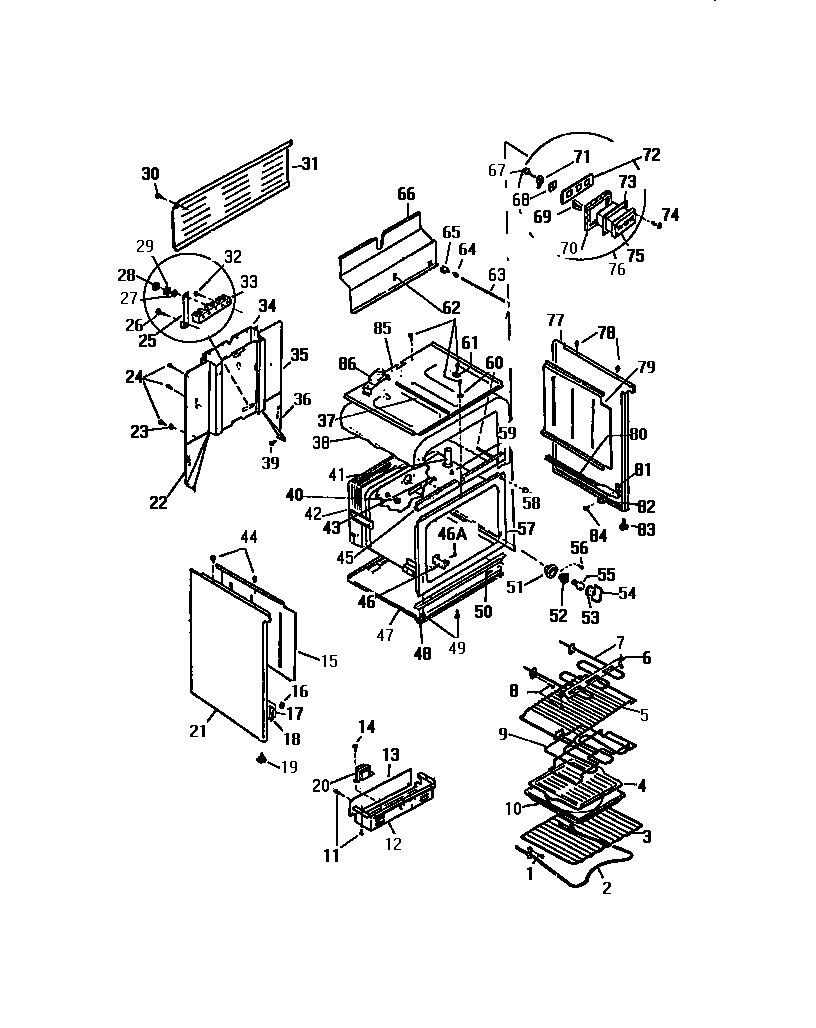

KF650GDH1 06 – BODY, SIDE PANELS

Products

Position	Product
2	5303051519 Frigidaire Oven 2600W Bake Element
3	RACK (2)
4	WCI K1317972
5	WCI K5133401
6	HANGER
7	5303051516 Frigidaire Broil Element
9	WCI K1313230
10	WCI K1317973
12	WCI K1315121
13	WCI K1303601
14	WCI K1164563
17	RAIL, DWR, LH
20	WCI Q52613
21	PANEL-END RH-WHEAT
22	WCI K1325114
23	WCI Q410505
25	STRAP-GROUND
27	WASHER (6)
28	WCI Q401002
29	WCI Q500411
31	COVER-WIRE
33	TERMINAL BLOCK
34	WCI K1315110
35	WCI K1317817
36	WCI K1325113
37	ROD
38	WCI K1311331
40	WCI KGM142017
41	VENT TUBE
42	INSULATION-OVEN BACK
45	CHANNEL, OVEN SUPPORT
46	BRACKET THERM. BULB
47	WCI K1317644
48	CHANNEL, OV. SUPT.
51	CUP, OVEN LT
52	316116400 Frigidaire Oven Light Socket
53	5304524341 Frigidaire Lens
54	RETAINING WIRE
55	WCI Q63749
56	08002868 Frigidaire 0 Screw Assembly
57	WCI K5024701
58	PLUG-BUTTON 3/4“
59	SCREW
60	WASHER, PADDED
61	RETAINER
63	PUSH ROD
64	WCI K1322682
65	SWITCH-DOOR
66	WCI K5032101
67	WCI Q414002
68	WCI Q273020
69	WCI Q62643
70	WCI Q208505
71	WCI Q81559
72	WCI Q281142
73	WCI Q22652
74	SCREW
75	BLOCK
76	WCI Q160978
77	WCI K5024609
78	BUMPER
79	RETAINER-INSUL (2)
80	RAIL, DWR., RH
81	SPACER, RAIL
82	GUIDE
83	LEG
84	SCREW
85	WCI K5025802
