KF650GDH2 06 – BODY, SIDE PANELS – Aparts

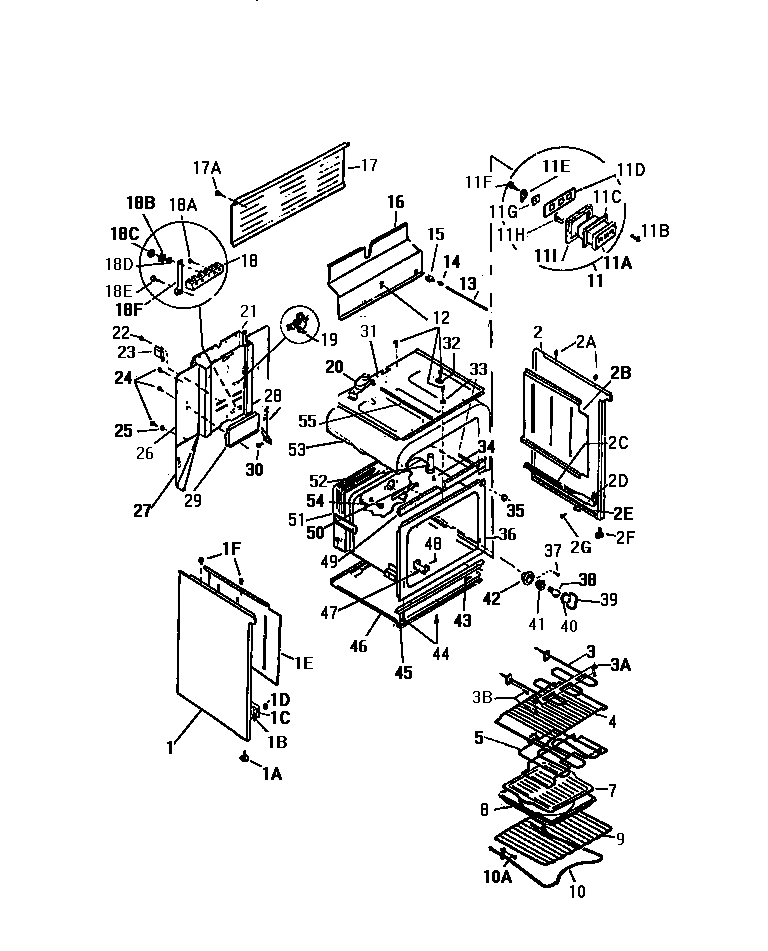

KF650GDH2 06 – BODY, SIDE PANELS

Products

Position	Product
1E	WCI K1326388
1	PANEL-END RH-WHEAT
1C	RAIL, DWR, LH
2D	SPACER, RAIL
2E	GUIDE
2F	LEG
2A	BUMPER
2G	SCREW
2C	RAIL, DWR., RH
2B	WCI K1375388
2	WCI K5024609
3A	WCI K1314458
3	5303051516 Frigidaire Broil Element
4	WCI K5133401
5	WCI K1313230
7	WCI K1317972
8	WCI K1317973
9	RACK (2)
10	WCI K1312863
11A	BLOCK
11D	WCI Q291142
11	WCI Q160978
11I	WCI Q208506
11F	WCI Q414002
11C	WCI Q22662
11E	WCI Q81159
11H	WCI Q62643
11G	WCI Q273020
13	PUSH ROD
14	WCI K1322682
15	SWITCH-DOOR
16	WCI K5029503
17	COVER-WIRE
18F	STRAP-GROUND
18C	WCI Q401002
18B	WCI Q500411
18	TERMINAL BLOCK
18D	WASHER (6)
19	WCI K5328001
20	WCI 0000000
21	COVER, WIRE
23	WCI K5290501
25	WCI Q410505
26	WCI K5275902
27	WCI K1325114
28	WCI K1325113
29	WCI K5134501
30	WCI K1164540
31	WCI K5025802
32	RETAINER
33	WASHER, PADDED
34	SCREW
35	PLUG-BUTTON 3/4``
36	WCI K5024701
38	WCI Q63749
39	RETAINING WIRE
40	WCI K1326628
41	WCI K1326527
42	WCI K1325630
43	SCREW
45	WCI K1315106
46	WCI K5276502
47	BRACKET THERM. BULB
48	08002868 Frigidaire 0 Screw Assembly
49	CHANNEL, OVEN SUPPORT
51	WCI K5066901
52	VENT TUBE
53	WCI K1311331
54	WCI KGM142017
55	ROD
