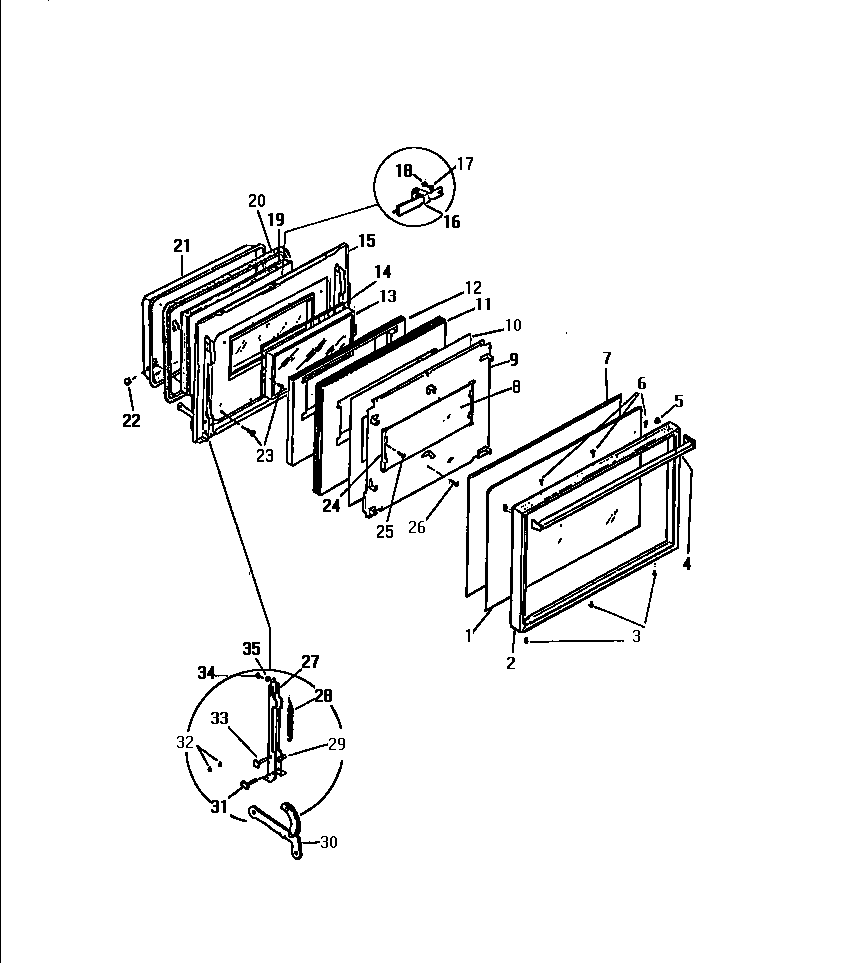

KF650GDW0 04 – DOOR

Products

Position	Product
1	WCI K5027201
2	WCI K5027101
4	HANDLE ASSY (INCLUDES STANCHION)
5	SCREW
7	WCI K5030801
8	WCI K1317924
9	WCI K1323173
10	WCI K1318825
11	WCI K1322652
12	WCI K1322651
13	WCI K1322068
14	WCI K1322069
15	WCI K1324721
16	STRIKE ASSEMBLY
19	WCI K1322622
20	GASKET
21	WCI K1323752
22	WCI KGM142001
24	RETAINER, GLASS (2)
25	08002868 Frigidaire 0 Screw Assembly
26	WCI K1164557
27	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
28	WCI K1302501
29	ROLLER PACKAGE-OVEN DOOR (2)
30	ARM ASSY.
31	AXLE
33	RIVET
34	WCI K1164550
35	WASHER, PADDED
