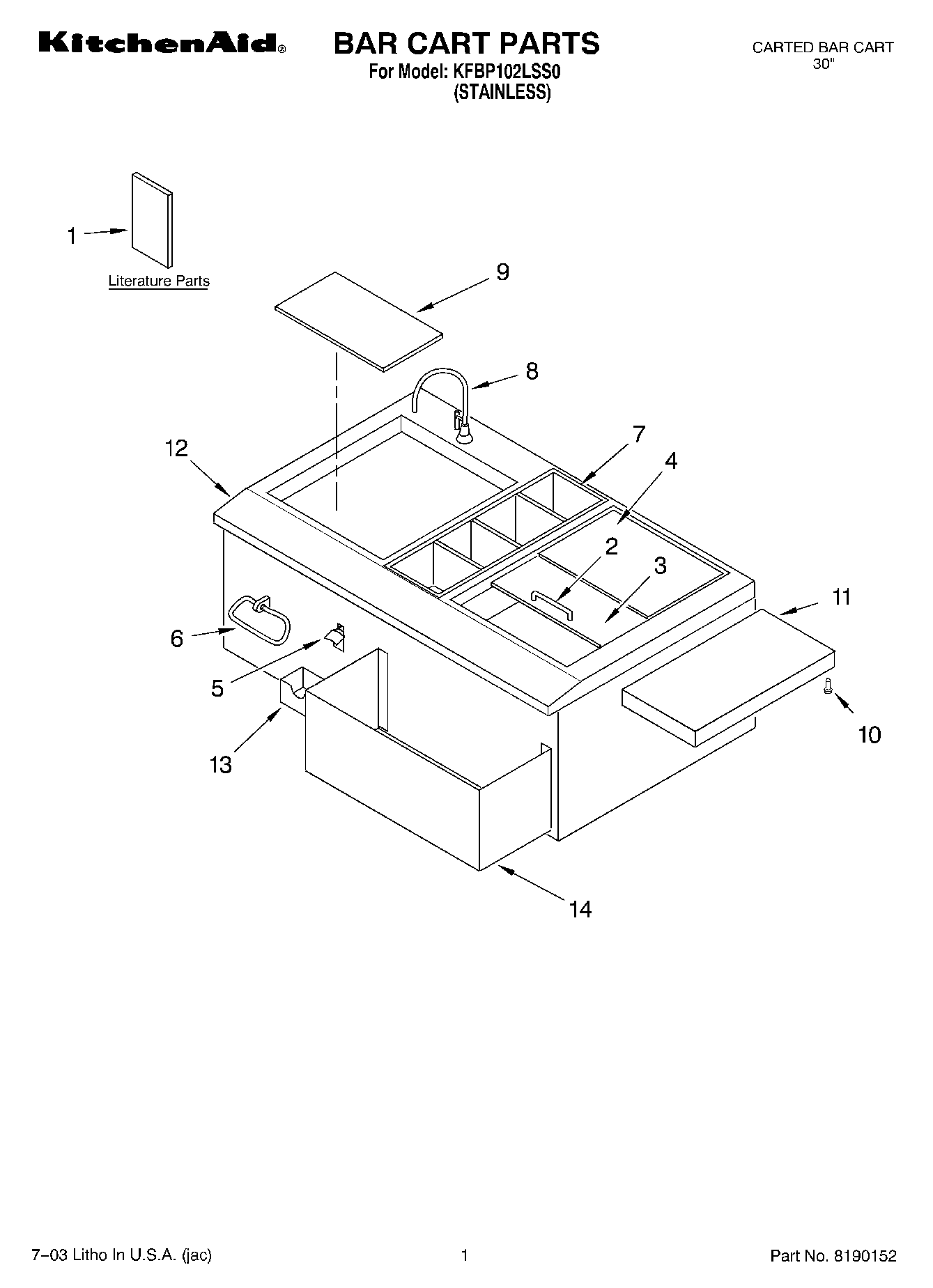

KFBP102LSS0 01 – BAR CART PARTS
Written by
in
KFBP102LSS0 01 – BAR CART PARTS
Products
Position
Product
1
U & C GUIDE / INSTRUCTIONS, INSTALLATION
2
Handle
3
Cover, Bottom
4
Cover, Top
5
Opener, Bottle
6
Ring, Towel
7
Bin, Bottle (4)
8
Faucet
9
Board, Cutting
10
Bumper (6)
11
Shelf, Side (2)
12
Bullnose Asy
13
Bin, Bottle Cap
14
Nut, Brass 1 1/8“ X 1/4“ x 10
14
Cabinet Door-Right
14
FOLLOWING PARTS NOT ILLUSTRATED
14
Panel, Rear Access
14
Fitting, Brass 3/4“Hose X 3/4“NPT
14
EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
14
Handle, Door (2)
14
Screw – Casters
14
W/O Brake
14
W/Brake
14
Holder, Bottle/ Condiment Bin
14
Tubing, Vinyl 3/8OD X .062 Wall
14
Drain, Brass 1 X 1 1/2“
14
WP2004333 Whirlpool Refrigerator Nut
14
Logo, Kitchenaid
14
Latch-Magnetic
14
Screw 1/4-20X3/8SS
14
Bin, Storage
14
BRACKET, BULLNOSE (RIGHT)
14
BRACKET, BULLNOSE (LEFT)
14
LOCKNUT, FAUCET
14
Fitting, Brass Wtr Fltr 1/2“X1/4“
14
Strainer (Stopper, Crumb)
14
Drain, Stainless 2“ X 1 1/2“
14
Cabinet Door-Left
←
