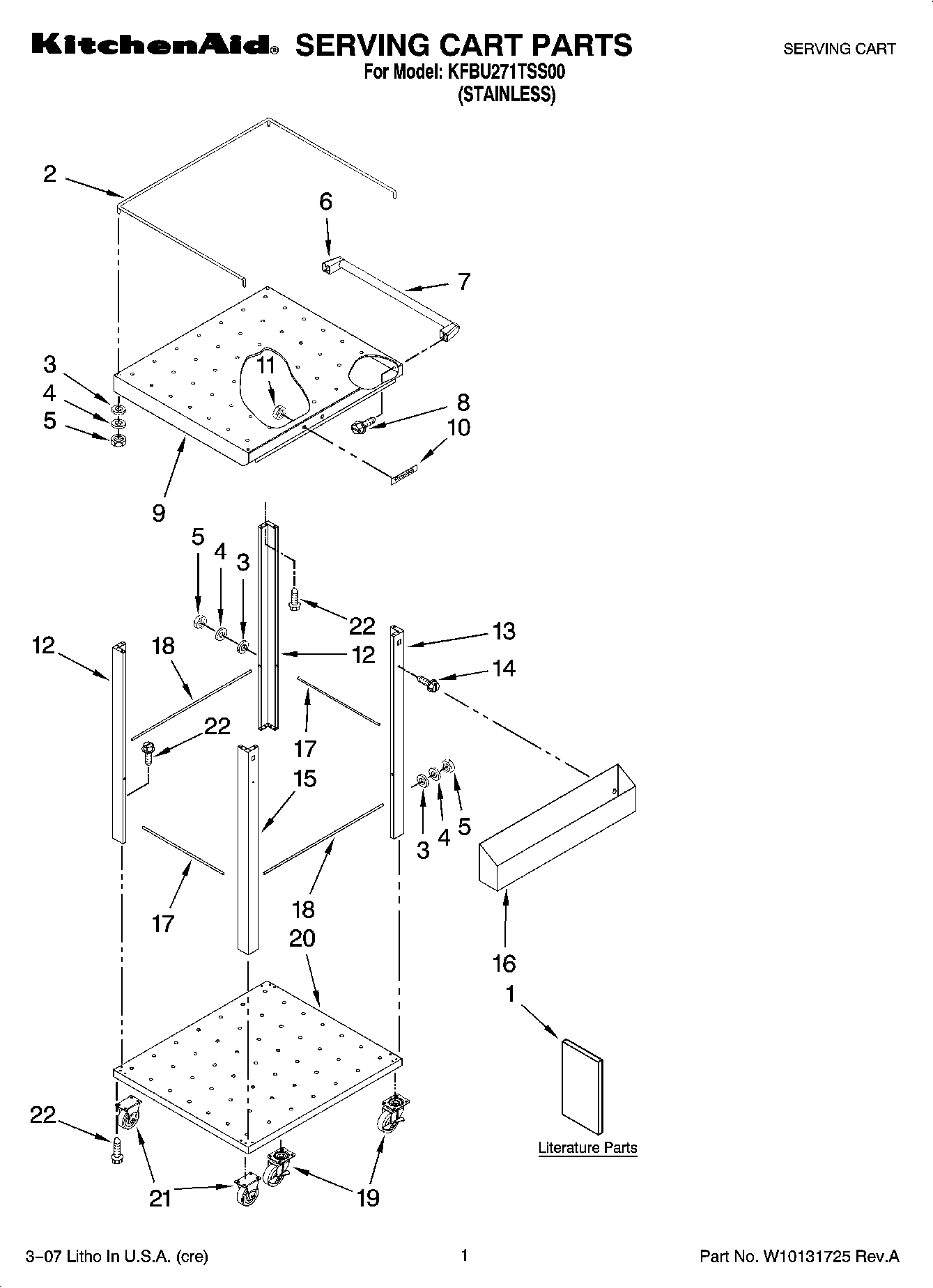

KFBU271TSS00 01 – SERVING CART PARTS

Products

Position	Product
1	Literature (Installation Instructions)
2	Rail, Top
3	Washer, Flat 1/4``
4	Washer, Spring 1/4``
5	Nut, 1/4``
6	Bracket, Handle
7	Handle, Door
8	Screw, 5/32 X 10
9	Panel, Top
10	Nameplate
11	Nut, 5/32
12	Support, Rear
13	Support, Front Rt.
14	Screw, 1/4`` X 10
15	Support, Front Lf.
16	Tray, Condiment
17	Rail, Bottom (Rt & Lf)
18	Rail, Bottom (Front & Rear)
19	Caster (W/Brake)
20	Panel, Bottom
21	Caster
22	Screw, 1/4`` X 16
