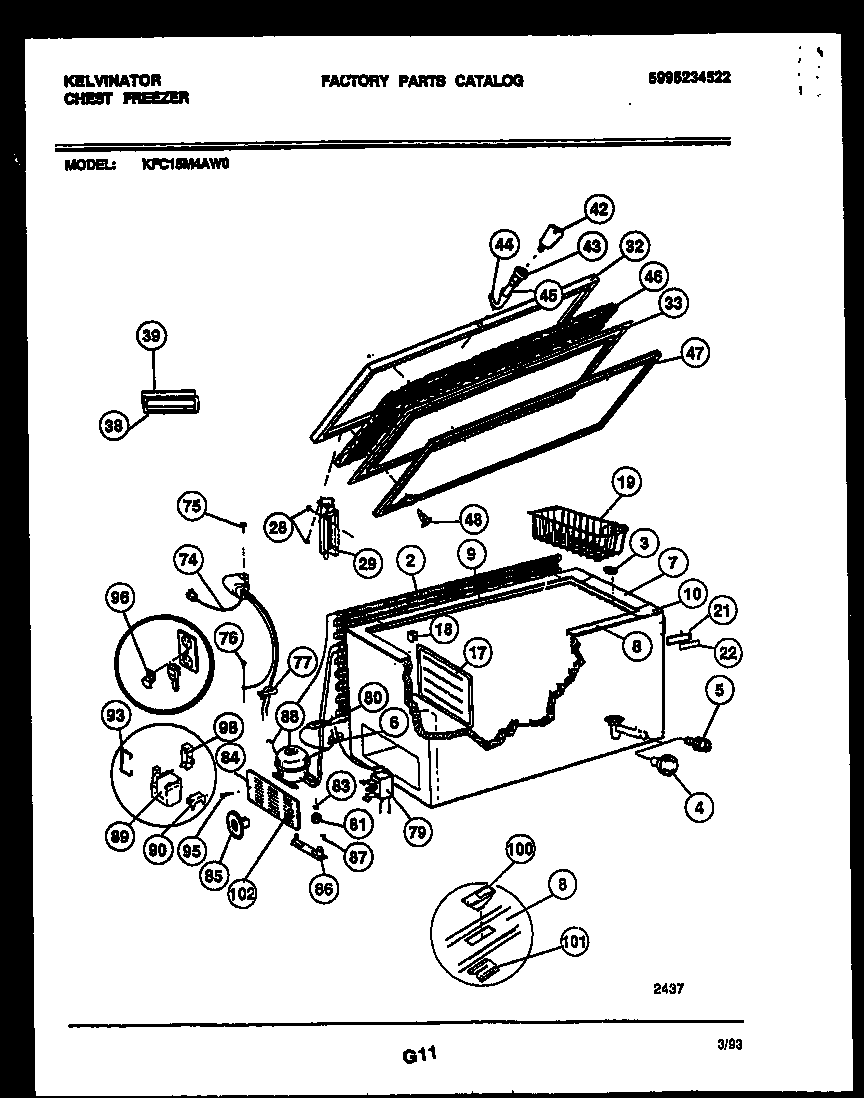

KFC15M4AW0 02 – CHEST FREEZER PARTS

Products

Position	Product
2	WCI 5303280307
3	WCI 216208300
4	WCI 5300128045
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	WCI 216110802
8	WCI 216111602
9	WCI 216111002
10	WCI 216110702
17	WCI 216128200
18	WCI 5306594584
19	WCI 216080300
21	WCI 216208100
22	WCI 216208000
28	WCI 5309950602
29	297321900 Frigidaire Refrigerator Hinge Assembly
32	PANEL-LID
33	WCI 216058104
38	HANDLE
39	GASKET, WHITE
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5303925107
44	WCI 5300300791
45	Washer-sealing
46	WCI 5300128901
47	WCI 216079901
48	5303212828 Frigidaire Refrigerator Primary Clip
74	WCI 216089600
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
79	5304496560 Frigidaire Refrigerator Cold Control Kit
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP, SPRING MTG
84	WCI 216022700
85	WCI 216034505
86	WCI 5303212615
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	WCI 216120800
89	WCI 216008900
90	WCI 5303206816
93	WCI 216147800
95	216858001 Frigidaire Refrigerator Screw
96	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
98	5304464438 Frigidaire Compressor Run Capacitor
100	LATCH, DOOR
101	WCI 216080800
102	PLUG-INDICATOR
