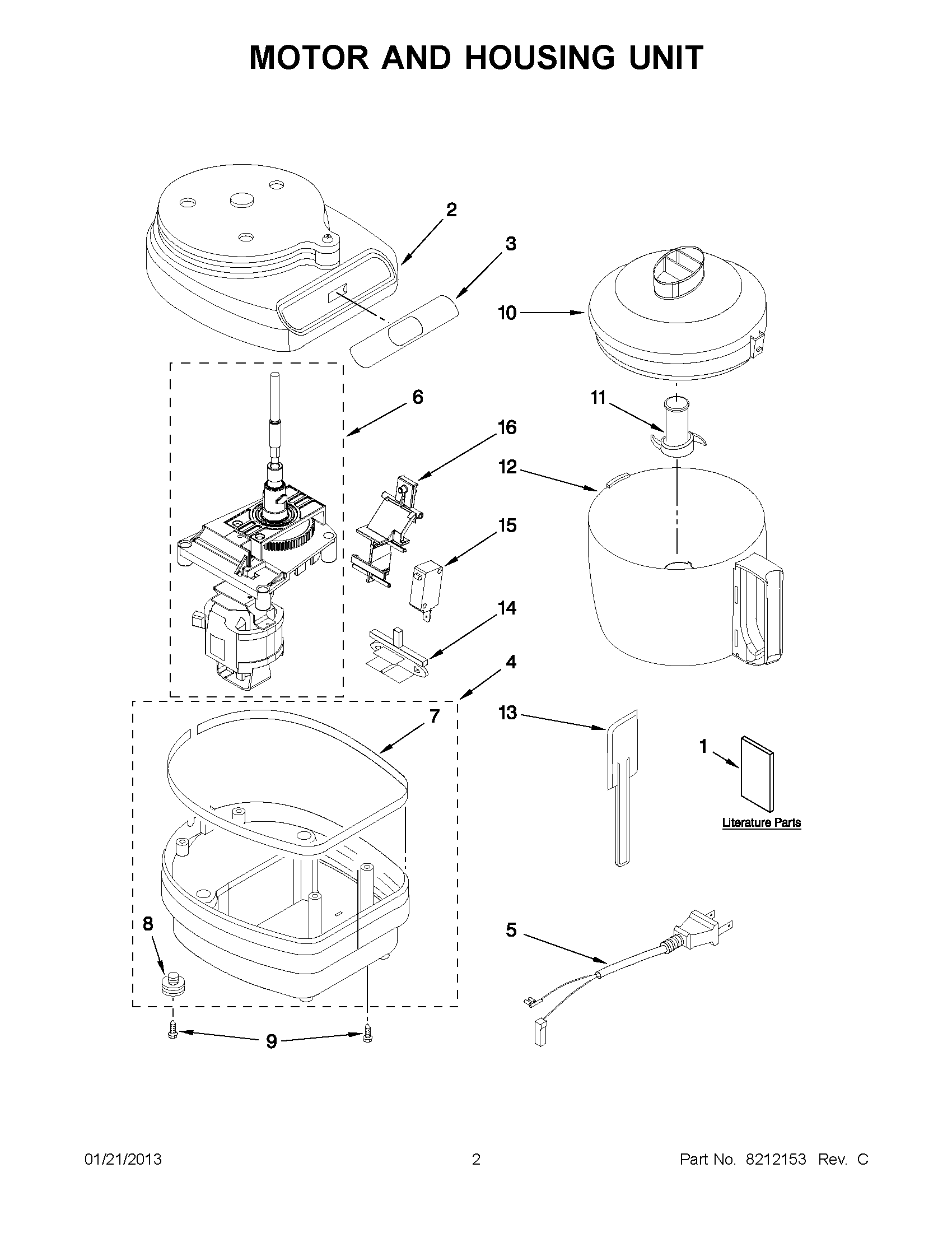

KFC3100BU2 01 – MOTOR AND HOUSING UNIT

Products

Position	Product
1	Use & Care Guide, Trilingual
2	Upper Housing (Blue Willow)
2	Upper Housing (Chrome)
2	Upper Housing (Onyx Black)
2	Upper Housing (Cobalt Blue)
2	Upper Housing (Empire Red)
2	Upper Housing (White)
2	Upper Housing (Pink)
3	Overlay (White)
3	Overlay (Empire Red)
3	Overlay (Cobalt Blue)
3	Overlay (Onyx Black & Chrome Models)
3	Overlay (Blue Willow)
3	Overlay (Pink)
4	Base (Cobalt Blue)
4	Base (White)
4	Base (Empire Red)
4	Base (Pink)
4	Base (Blue Willow)
4	Base (Chrome)
4	Base (Onyx Black)
5	Cord, Power (Black)
5	Cord, Power (White)
6	Motor Assembly
7	Band, Trim
8	Foot, Black
9	Screw
10	LID ASSEMBLY
11	Blade Assembly
12	BOWL ASSEMBLY
13	Spatula
14	Plate, Backing (Pulse Switch)
15	Switch, Micro
16	Mount, Micro Switch
