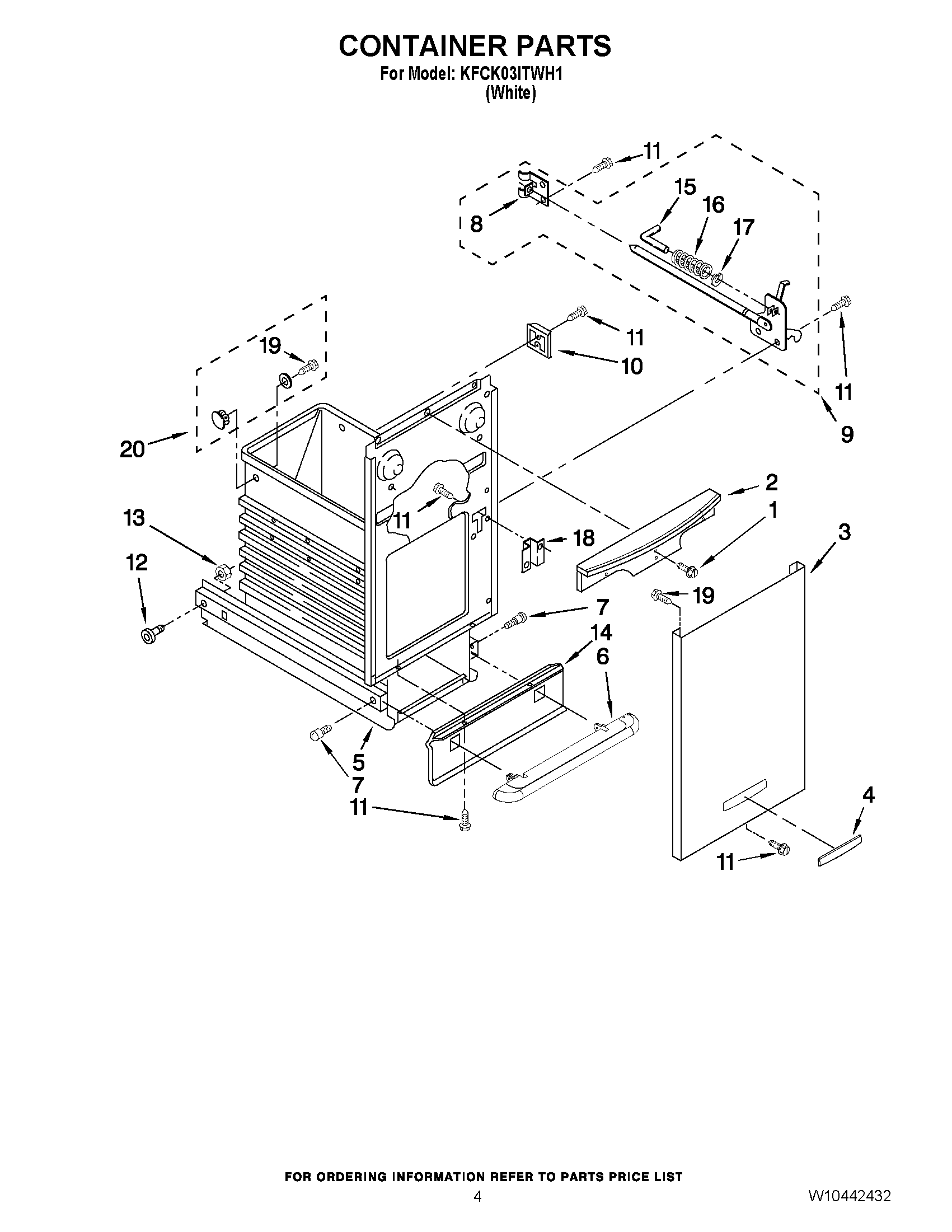

KFCK03ITWH1 04 – CONTAINER PARTS

Products

Position	Product
1	SCREW
2	HANDLE
3	Panel, Container (White)
4	W10021860 Whirlpool Dishwasher Nameplate
5	WPW10451276 Whirlpool Compactor Container
6	9871989W Whirlpool Compactor Foot Pedal Assembly
7	WP780263 Whirlpool Compactor Screw
8	WP776395 Whirlpool Compactor Guide
9	675379 Whirlpool Compactor Drawer Latch
10	9871125 Whirlpool Compactor Actuator
11	WP489478 Whirlpool Refrigerator Screw
12	WP9871602 Whirlpool Compactor Bearing
13	WP776356 Whirlpool Compactor Nut
14	W10917704 Whirlpool Compactor Guard
15	Pin
16	775736 Whirlpool Compactor Spring
17	Ring, “E“
18	775665 Whirlpool Compactor Plate Latch
19	WP3196175 Whirlpool Screw
20	RETAINER, BAG
