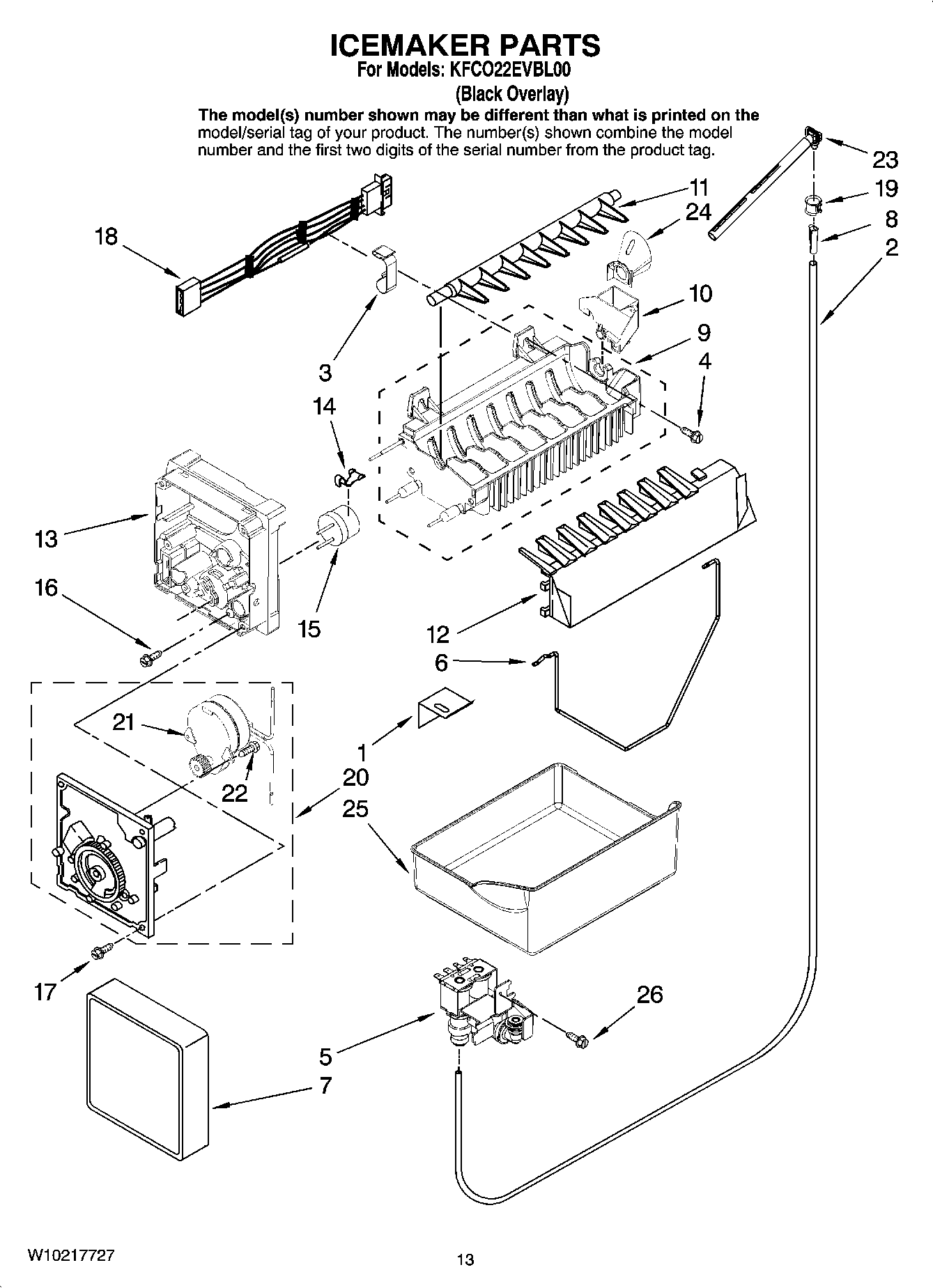

KFCO22EVBL00 07 – ICEMAKER PARTS

Products

Position	Product
1	Bracket, Ice Maker
2	WPB5705307 Whirlpool Refrigerator Tube
3	Clamp
4	WP681249 Whirlpool Screw Assembly
5	WP67006531 Whirlpool Water Inlet Valve
6	ARM-SHUT
7	W10153710 Whirlpool Refrigerator Front Cover
8	WPA3223101 Whirlpool Refrigerator Insert PL
9	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10	W10122561 Whirlpool Refrigerator Cup Fill
11	WP627843 Whirlpool Refrigerator Ejector Arm
12	WP2182124 Whirlpool Refrigerator Stripper Arm
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	WP489464 Whirlpool Refrigerator Screw
18	WPD7813010 Whirlpool Refrigerator Wire Harness
19	WPM0114003 Whirlpool Microwave Speed Clip Clamp
20	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	489136 Whirlpool Refrigerator Screw
23	W11176463 Whirlpool Refrigerator Water Tube
24	12918001 Whirlpool Refrigerator Funnel
25	WP67001255 Whirlpool Ice Bucket
26	WP489128 Whirlpool Refrigerator Screw
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
