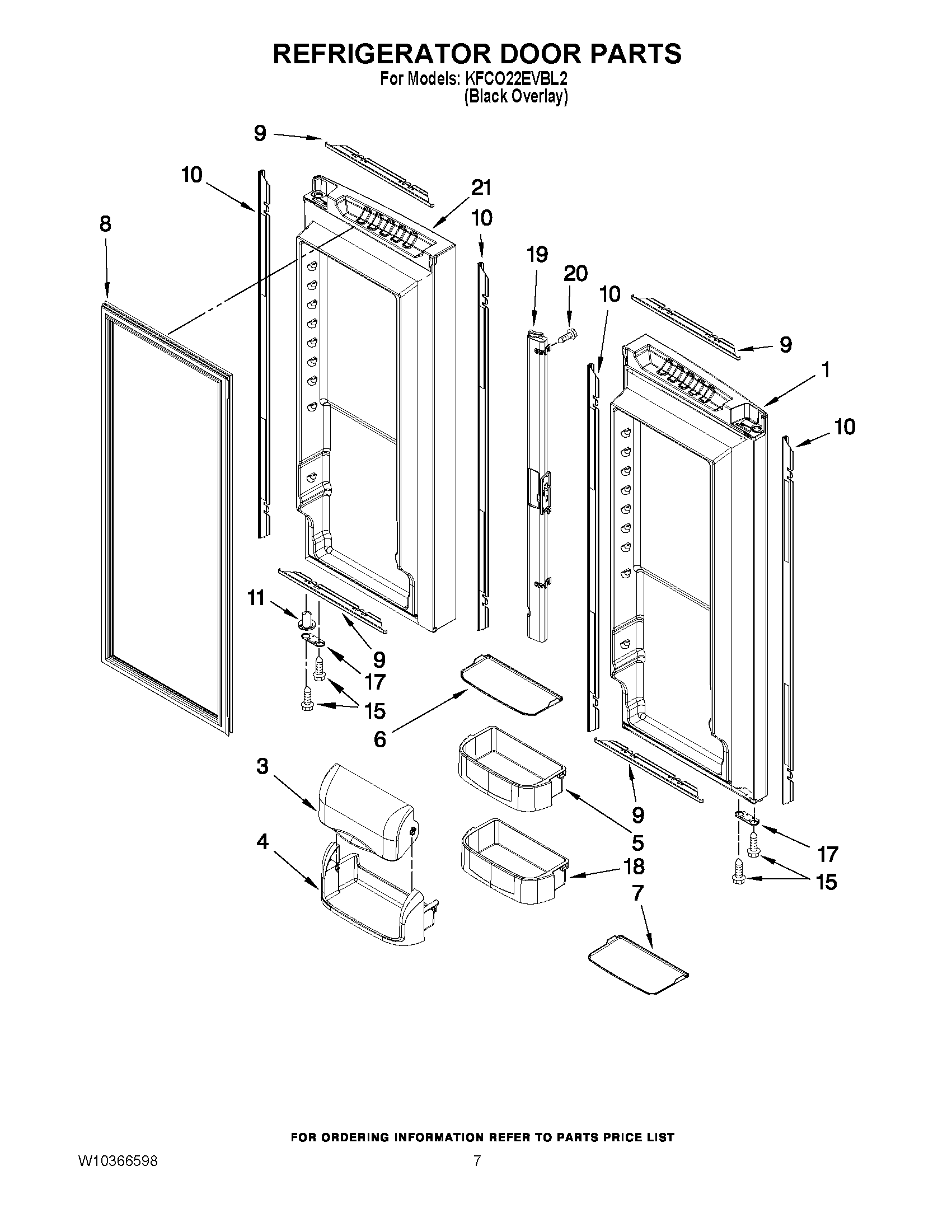

KFCO22EVBL2 04 – REFRIGERATOR DOOR PARTS

KFCO22EVBL2 04 – REFRIGERATOR DOOR PARTS

Written by

in

KFCO22EVBL2 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (BLACK, LH)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10119841 Whirlpool Cantilever Bin
6W11510593 Whirlpool Refrigerator Mat
7W11510594 Whirlpool Refrigerator Mat
8GASKET-FIP
9W10130132 Whirlpool Refrigerator Door Trim
10WPW10130136 Whirlpool Refrigerator Door Trim
11WP67003639 Whirlpool Refrigerator Closer
15WP98165 Whirlpool Screw
17W10153126 Whirlpool Refrigerator Door Stop
18WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
19W11177241 Whirlpool Refrigerator Mullion Rail
20W11311945 Whirlpool Refrigerator Screw
21DOOR, RIGHT (BLACK)
