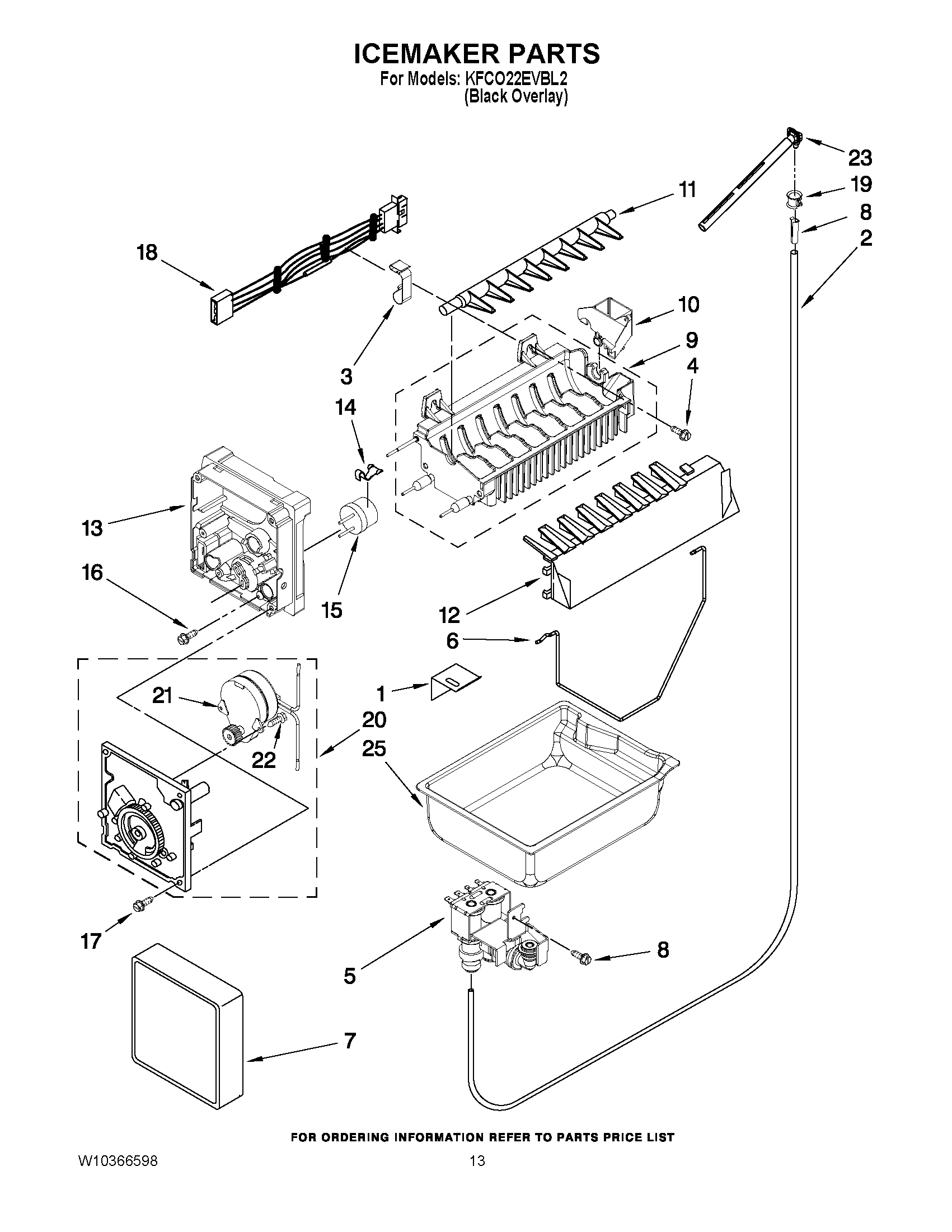

KFCO22EVBL2 07 – ICEMAKER PARTS

KFCO22EVBL2 07 – ICEMAKER PARTS

Written by

in

KFCO22EVBL2 07 – ICEMAKER PARTS

Products

PositionProduct
1WP2256087 Whirlpool Refrigerator Bracket
2W11120581 Whirlpool Refrigerator Water Tube
3Clamp
4WP681249 Whirlpool Screw Assembly
5WP12544124 Whirlpool Refrigerator Valve
6W11285509 Whirlpool Refrigerator Shut-Off Arm
7W10153710 Whirlpool Refrigerator Front Cover
8WPA3223101 Whirlpool Refrigerator Insert PL
9WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10W10122561 Whirlpool Refrigerator Cup Fill
11WP627843 Whirlpool Refrigerator Ejector Arm
12WP2182124 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP489464 Whirlpool Refrigerator Screw
18WPD7813010 Whirlpool Refrigerator Wire Harness
19WPM0114003 Whirlpool Microwave Speed Clip Clamp
208201515 Whirlpool Refrigerator Motor and Gear Module Kit
21CABINET (NOT A SERVICEABLE PART)
22489136 Whirlpool Refrigerator Screw
23W11176463 Whirlpool Refrigerator Water Tube
25W10120005 Whirlpool Refrigerator Ice Pan
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
