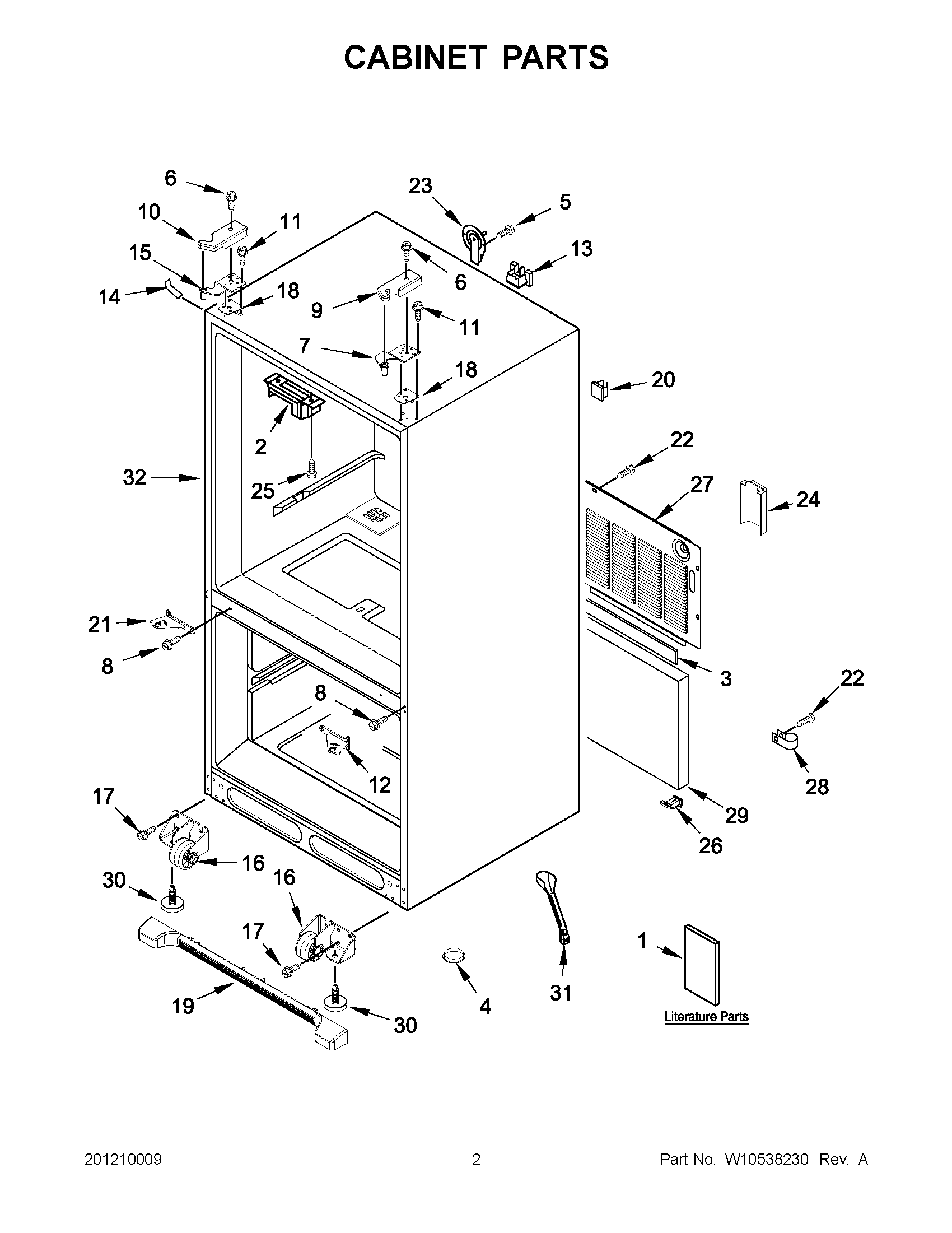

KFCO22EVBL5 01 – CABINET PARTS

KFCO22EVBL5 01 – CABINET PARTS

Written by

in

KFCO22EVBL5 01 – CABINET PARTS

Products

PositionProduct
1OWNERS MANUAL
1TECH SHEET
1TAG, ENERGY
2W11024160 Whirlpool Refrigerator Breaker Trim
3B5759655 Whirlpool Refrigerator Gasket
4A3076901 Whirlpool Refrigerator Plug
5WP98165 Whirlpool Screw
612992603 Whirlpool Refrigerator Screw
7W10210891 Whirlpool Refrigerator Door Hinge
8WP67006380 Whirlpool Screw
9W10153131 Whirlpool Refrigerator Cover
10W10892762 Whirlpool Refrigerator Cover
11WP489349 Whirlpool Refrigerator Screw
12W10210883 Whirlpool Refrigerator Door Hinge
13WP12777701 Whirlpool Refrigerator Filler Block
1467003485 Whirlpool Refrigerator Corner Cover (Black)
15W10892768 Whirlpool Refrigerator Door Hinge
16WPW10515762 Whirlpool Refrigerator Cabinet Roller
16WPW10515763 Whirlpool Refrigerator Cabinet Roller
1767006564 Whirlpool Refrigerator Screw
1812999501 Whirlpool Refrigerator Hinge Shim
1812999502 Whirlpool Refrigerator Hinge Shim
19WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
20WPM0104106 Whirlpool Refrigerator Clip
21W10210882 Whirlpool Refrigerator Door Hinge
2267006425 Whirlpool Refrigerator Screw
2312726003 Whirlpool Refrigerator Water Cover
24W10208593 Whirlpool Refrigerator Valve Cover
25W10854958 Whirlpool Refrigerator Screw
2612831101 Whirlpool Refrigerator Tube Clamp
27WPW10211855 Whirlpool Refrigerator Back Cover
28W11456069 Whirlpool Refrigerator Clamp
29INSULATION, SOUND
30WPW10141622 Whirlpool Leveler
31W10619951 Whirlpool Drain Tube with Grommet
32CABINET (NOT A SERVICEABLE PART)
