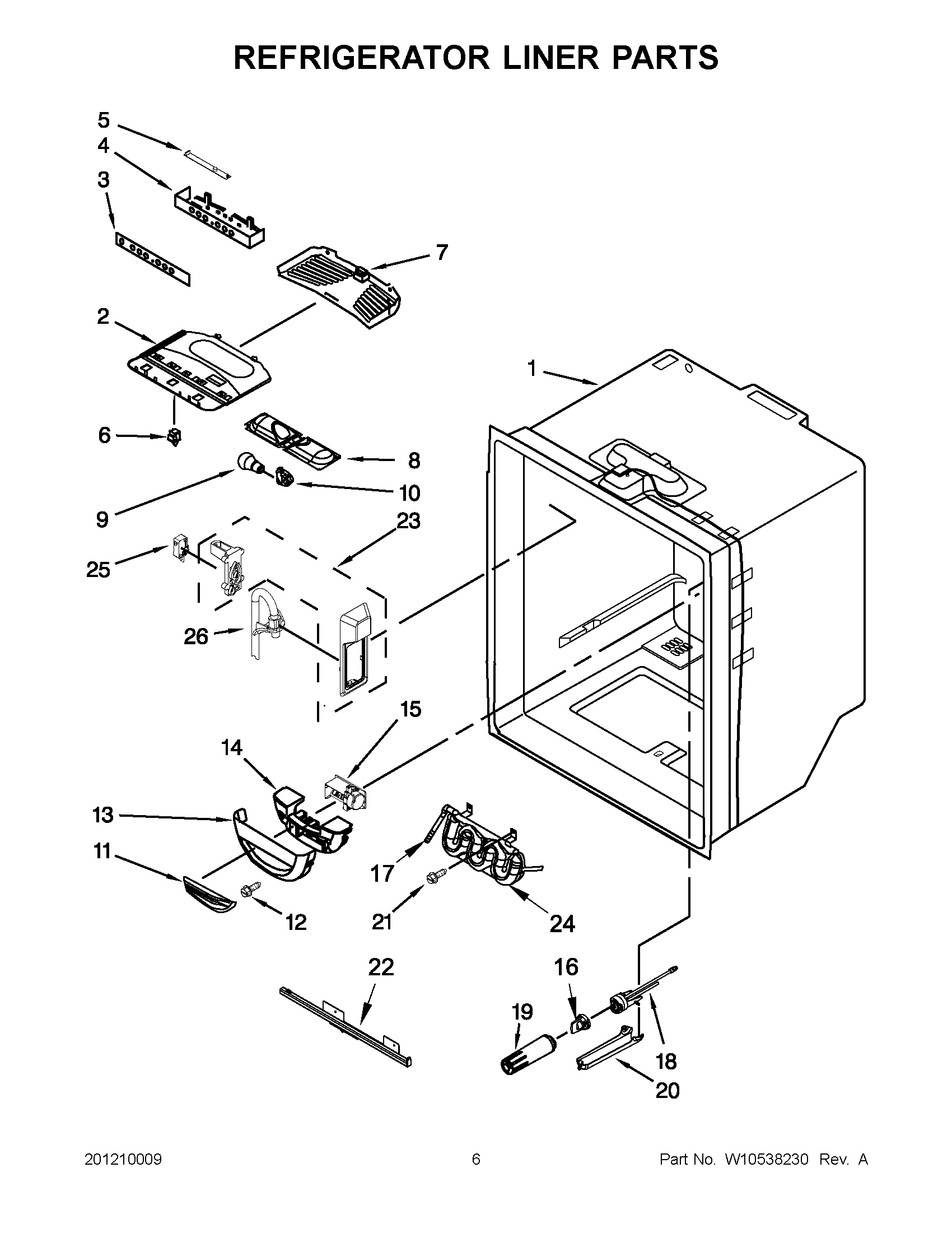

KFCO22EVBL5 03 – REFRIGERATOR LINER PARTS

KFCO22EVBL5 03 – REFRIGERATOR LINER PARTS

Written by

in

KFCO22EVBL5 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIW11084235 Whirlpool Refrigerator Wire Harness
NICABINET (NOT A SERVICEABLE PART)
2W10464766 Whirlpool Refrigerator Housing Assembly
3OVERLAY
4W11416469 Whirlpool Refrigerator Housing
5WPW10116216-includeCORE Whirlpool WPW10116216 Refrigerator Electronic Control Board + Core
6W11291138 Whirlpool Refrigerator Door Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL DAMPER
16W11395888 Whirlpool Refrigerator Bypass Filter Cap
17WP2300868 Whirlpool Refrigerator Fitting
18W11346623 Whirlpool Refrigerator Water Filter Head
19everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20WP67006331 Whirlpool Refrigerator Water Filter Cover
21WP98165 Whirlpool Screw
222302953 Whirlpool Refrigerator Slide
222302952 Whirlpool Refrigerator Slide
23W11243624 Whirlpool Refrigerator Cover
24W11361728 Whirlpool Reservoir Assembly
25WP12575502 Whirlpool Refrigerator Switch
26W10117324 Whirlpool Refrigerator Ice Guide
