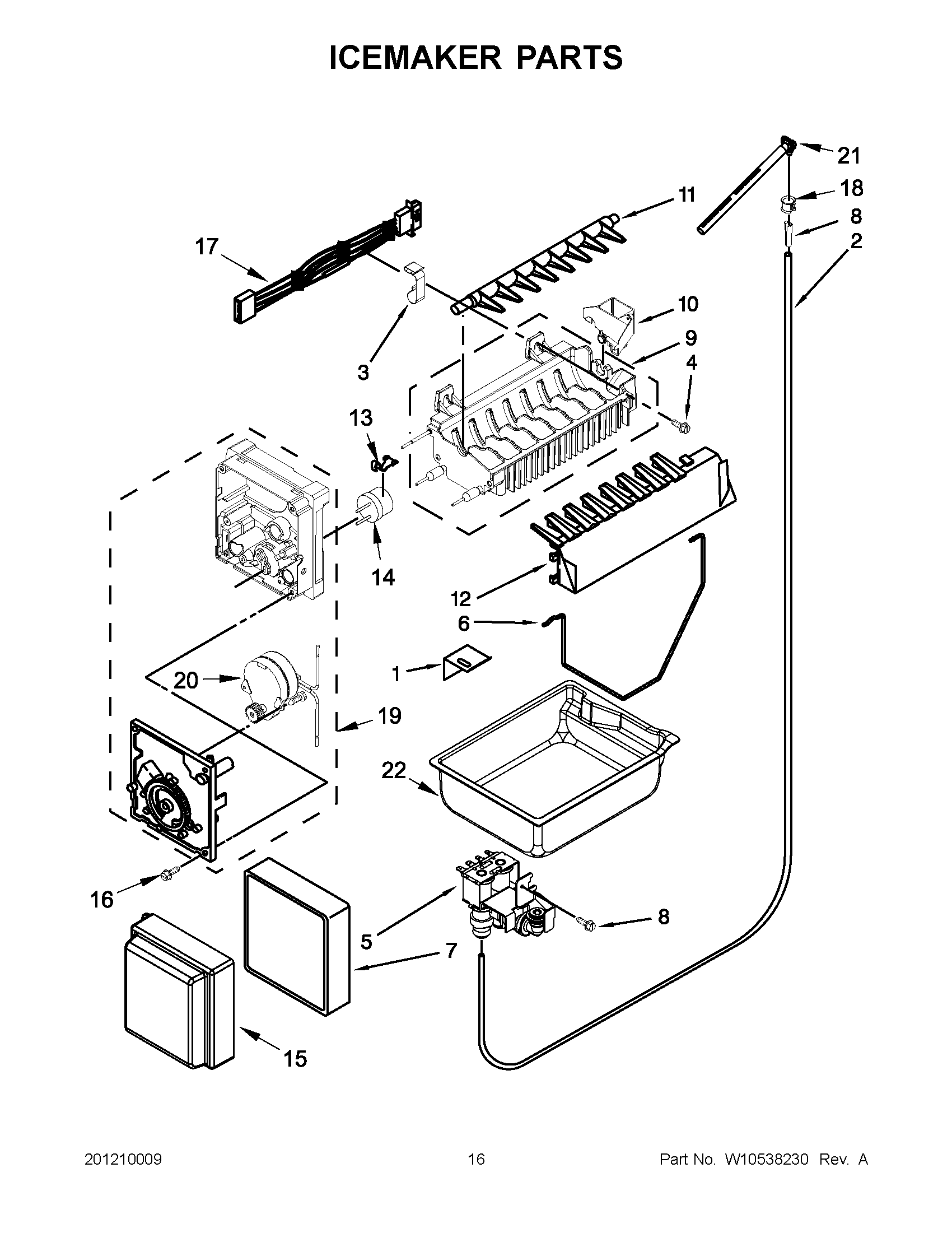

KFCO22EVBL5 08 – ICEMAKER PARTS

Products

Position	Product
1	WP2256087 Whirlpool Refrigerator Bracket
2	W11120581 Whirlpool Refrigerator Water Tube
3	Clamp
4	WPW10068250 Whirlpool Dishwasher Screw
5	VALVE-WATER INLET REFR
6	W11559683 Whirlpool Ice Level Arm
8	WPA3223101 Whirlpool Refrigerator Insert PL
9	WPW10300025 Whirlpool Refrigerator Ice Mold
10	W10410073 Whirlpool Fill Cup Assembly
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	WPW10122563 Whirlpool Refrigerator Stripper Arm
13	WP628379 Whirlpool Refrigerator Clip
14	WP627985 Whirlpool Icemaker Cycling Thermostat
15	W10377174 Whirlpool Refrigerator Front Cover
16	WP489464 Whirlpool Refrigerator Screw
17	WPW10458985 Whirlpool Wire Harness
18	WPM0114003 Whirlpool Microwave Speed Clip Clamp
19	WPW10281342 Whirlpool Refrigerator Motor Module
20	CABINET (NOT A SERVICEABLE PART)
21	W11176463 Whirlpool Refrigerator Water Tube
22	W10120005 Whirlpool Refrigerator Ice Pan
100	W10884390 Whirlpool Refrigerator Ice Maker Assembly
