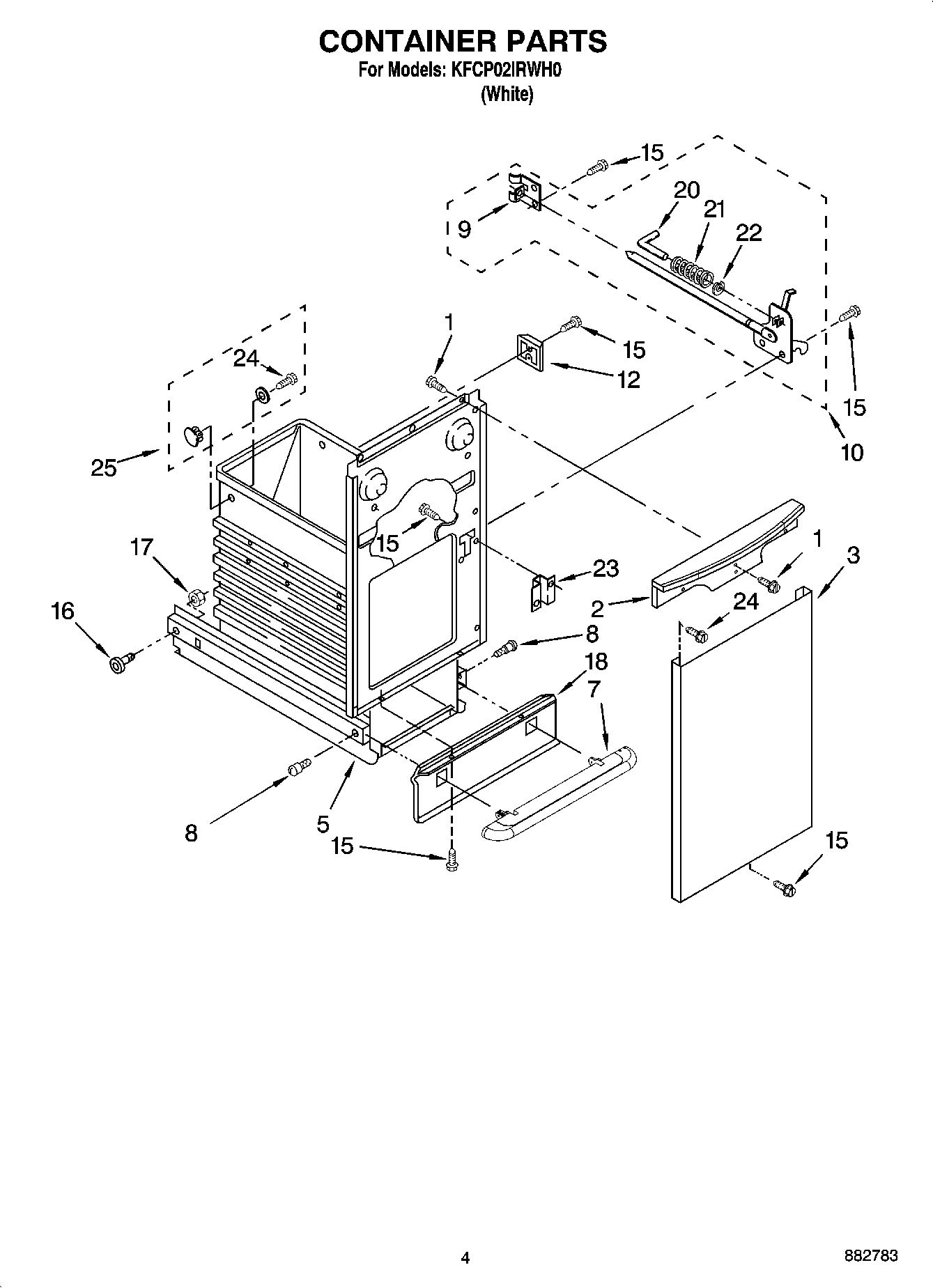

KFCP02IRWH0 04 – CONTAINER PARTS

Products

PositionProduct
1WP3400888 Whirlpool Compactor Screw
2HANDLE
3WP9871309 Whirlpool Compactor Panel
5WPW10451276 Whirlpool Compactor Container
79871989W Whirlpool Compactor Foot Pedal Assembly
8WP780263 Whirlpool Compactor Screw
9WP776395 Whirlpool Compactor Guide
10675379 Whirlpool Compactor Drawer Latch
129871125 Whirlpool Compactor Actuator
15WP489478 Whirlpool Refrigerator Screw
16WP9871602 Whirlpool Compactor Bearing
17WP776356 Whirlpool Compactor Nut
18W10917704 Whirlpool Compactor Guard
20Pin
21775736 Whirlpool Compactor Spring
22Ring, “E“
23775665 Whirlpool Compactor Plate Latch
24WP3196175 Whirlpool Screw
25RETAINER, BAG
