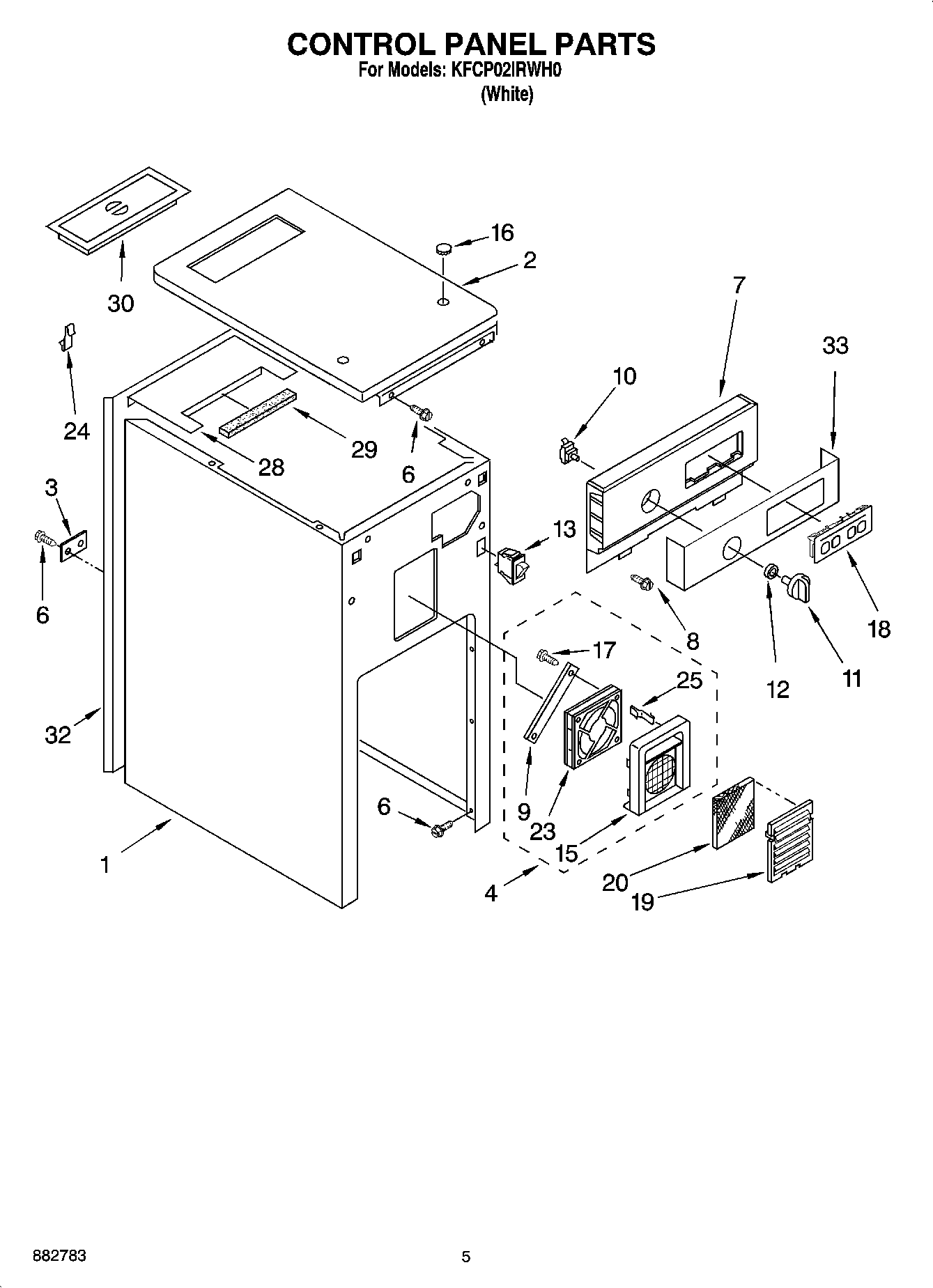

KFCP02IRWH0 05 – CONTROL PANEL PARTS

Products

Position	Product
1	WP9870913 Whirlpool Cabinet
2	Top, Cabinet (White)
3	Plate, Power Cord
6	WP489478 Whirlpool Refrigerator Screw
7	Escutcheon, Control (White)
8	Screw
9	4152703 Whirlpool Fan Strap
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	WP9871799 Whirlpool Compactor Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	WP4387911 Whirlpool Refrigerator Switch
15	9871893 Whirlpool Compactor Fan Filter
16	4151479 Whirlpool Compactor Button Plug
17	WP3351614 Whirlpool Screw
18	Switch Assembly (White)
19	Cover, Air Freshener (White)
20	WP4151750 Whirlpool Charcoal Air Filter
25	4151897 Whirlpool Compactor Clip
28	Plate, Bag Storage
29	Barrier, Glass
30	Lid, Bag Storage (White)
32	Panel, Back
33	Insert, Escutcheon (White)
