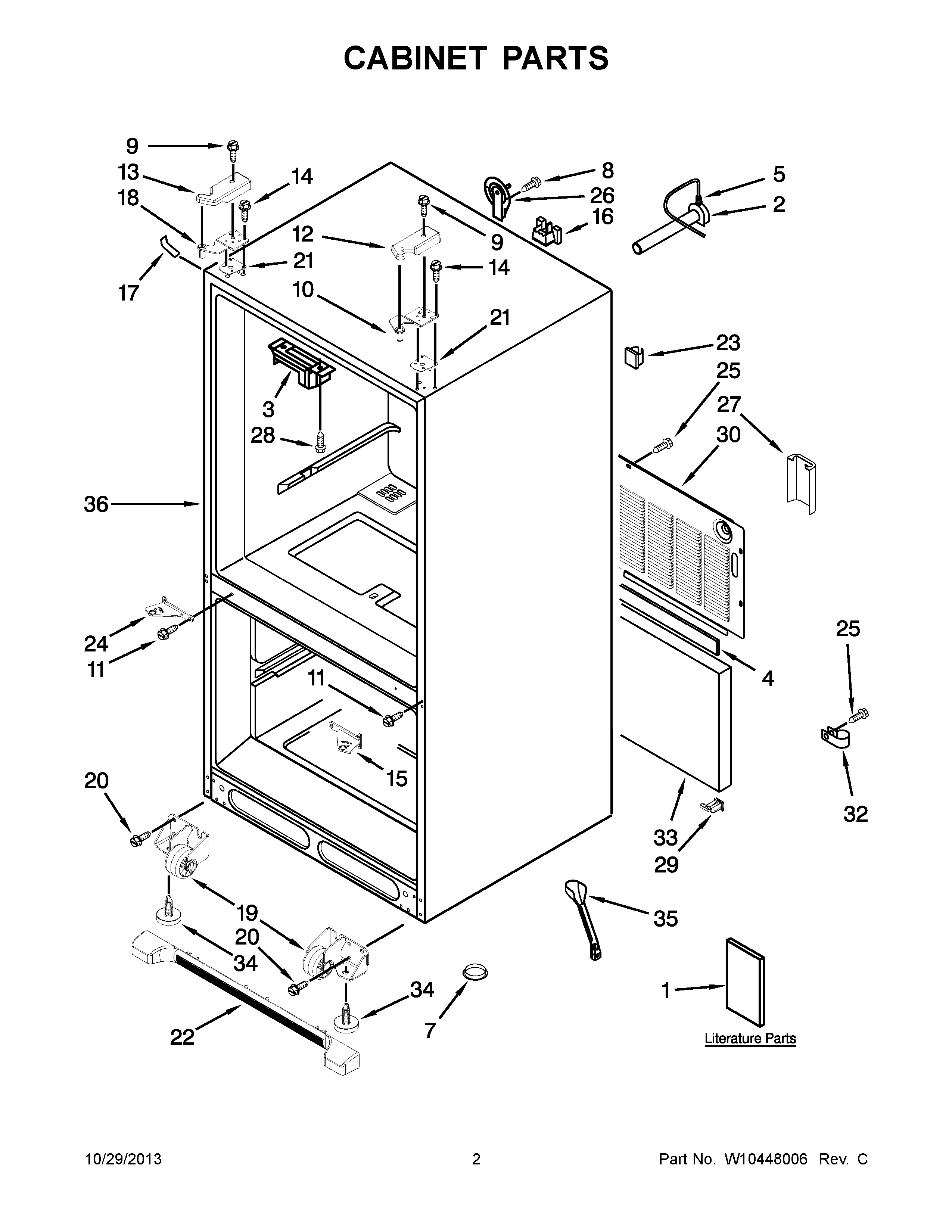

KFCP22EXMP2 02 – CABINET PARTS

KFCP22EXMP2 02 – CABINET PARTS

Written by

in

KFCP22EXMP2 02 – CABINET PARTS

Products

PositionProduct
1TAG, ENERGY
1TECH SHEET
1OWNERS MANUAL
2W11176463 Whirlpool Refrigerator Water Tube
3W11024160 Whirlpool Refrigerator Breaker Trim
4B5759655 Whirlpool Refrigerator Gasket
5WPM0114003 Whirlpool Microwave Speed Clip Clamp
7A3076901 Whirlpool Refrigerator Plug
8WP98165 Whirlpool Screw
912992603 Whirlpool Refrigerator Screw
10W10210891 Whirlpool Refrigerator Door Hinge
11WP67006380 Whirlpool Screw
12WPW10120103 Whirlpool Refrigerator Cover
13WPW10120102 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15HINGE-DOOR
16WP12777701 Whirlpool Refrigerator Filler Block
17WP12587703AP Whirlpool Refrigerator Filler
18W10892768 Whirlpool Refrigerator Door Hinge
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23WPM0104106 Whirlpool Refrigerator Clip
24W10861742 Whirlpool Refrigerator Door Hinge
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W10854958 Whirlpool Refrigerator Screw
2912831101 Whirlpool Refrigerator Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
32W11456069 Whirlpool Refrigerator Clamp
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35W10619951 Whirlpool Drain Tube with Grommet
36CABINET (NOT A SERVICEABLE PART)
