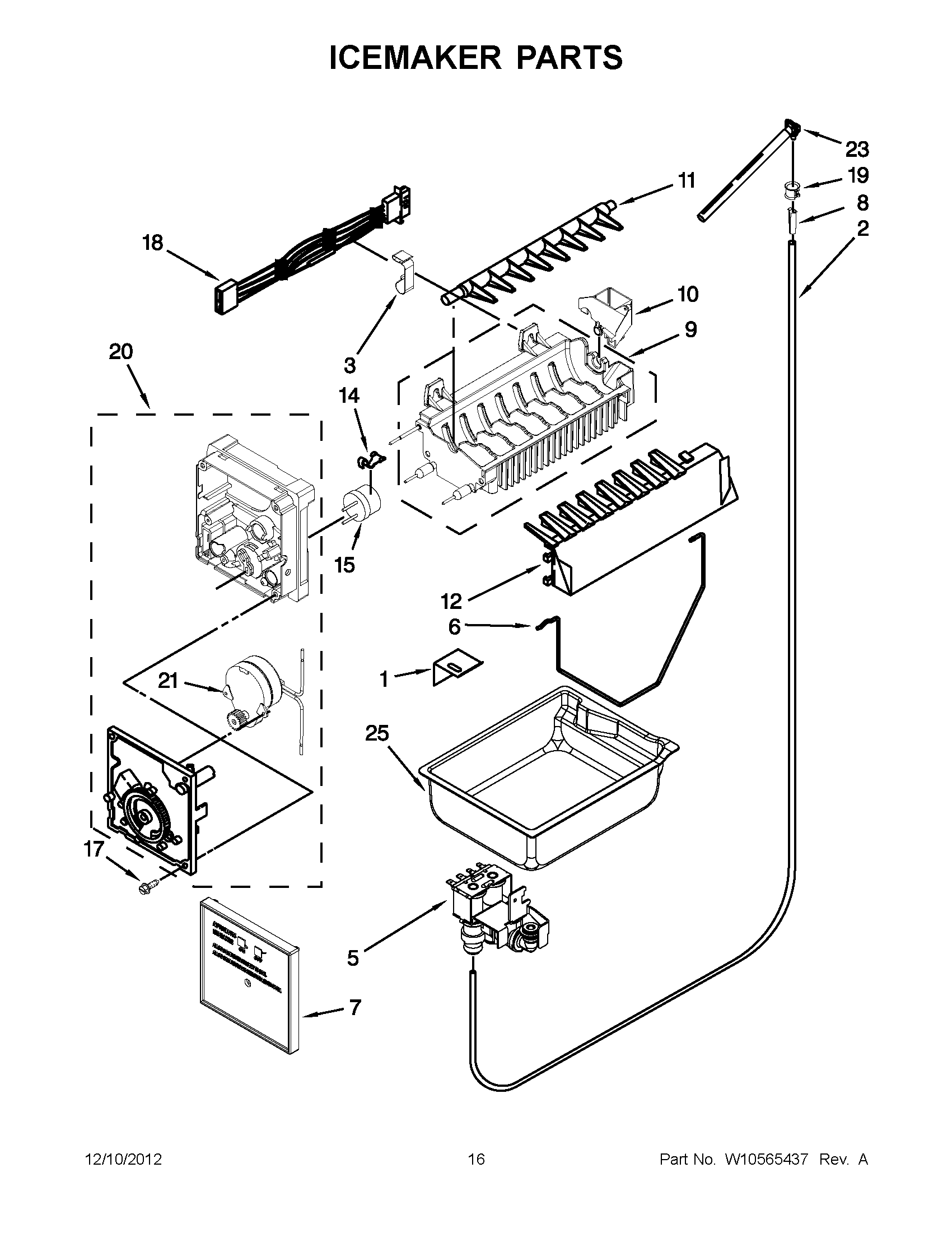

KFCP22EXMP5 08 – ICEMAKER PARTS

Products

Position	Product
1	WP2256087 Whirlpool Refrigerator Bracket
2	W11120581 Whirlpool Refrigerator Water Tube
3	Clamp
5	VALVE-WATER INLET REFR
6	W11559683 Whirlpool Ice Level Arm
7	W10377174 Whirlpool Refrigerator Front Cover
8	WPA3223101 Whirlpool Refrigerator Insert PL
9	WPW10300025 Whirlpool Refrigerator Ice Mold
10	W10410073 Whirlpool Fill Cup Assembly
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	WPW10122563 Whirlpool Refrigerator Stripper Arm
14	WP628379 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
17	WP489464 Whirlpool Refrigerator Screw
18	WPW10458985 Whirlpool Wire Harness
19	WPM0114003 Whirlpool Microwave Speed Clip Clamp
20	WPW10281342 Whirlpool Refrigerator Motor Module
21	CABINET (NOT A SERVICEABLE PART)
23	W11176463 Whirlpool Refrigerator Water Tube
25	W10120005 Whirlpool Refrigerator Ice Pan
100	W10884390 Whirlpool Refrigerator Ice Maker Assembly
