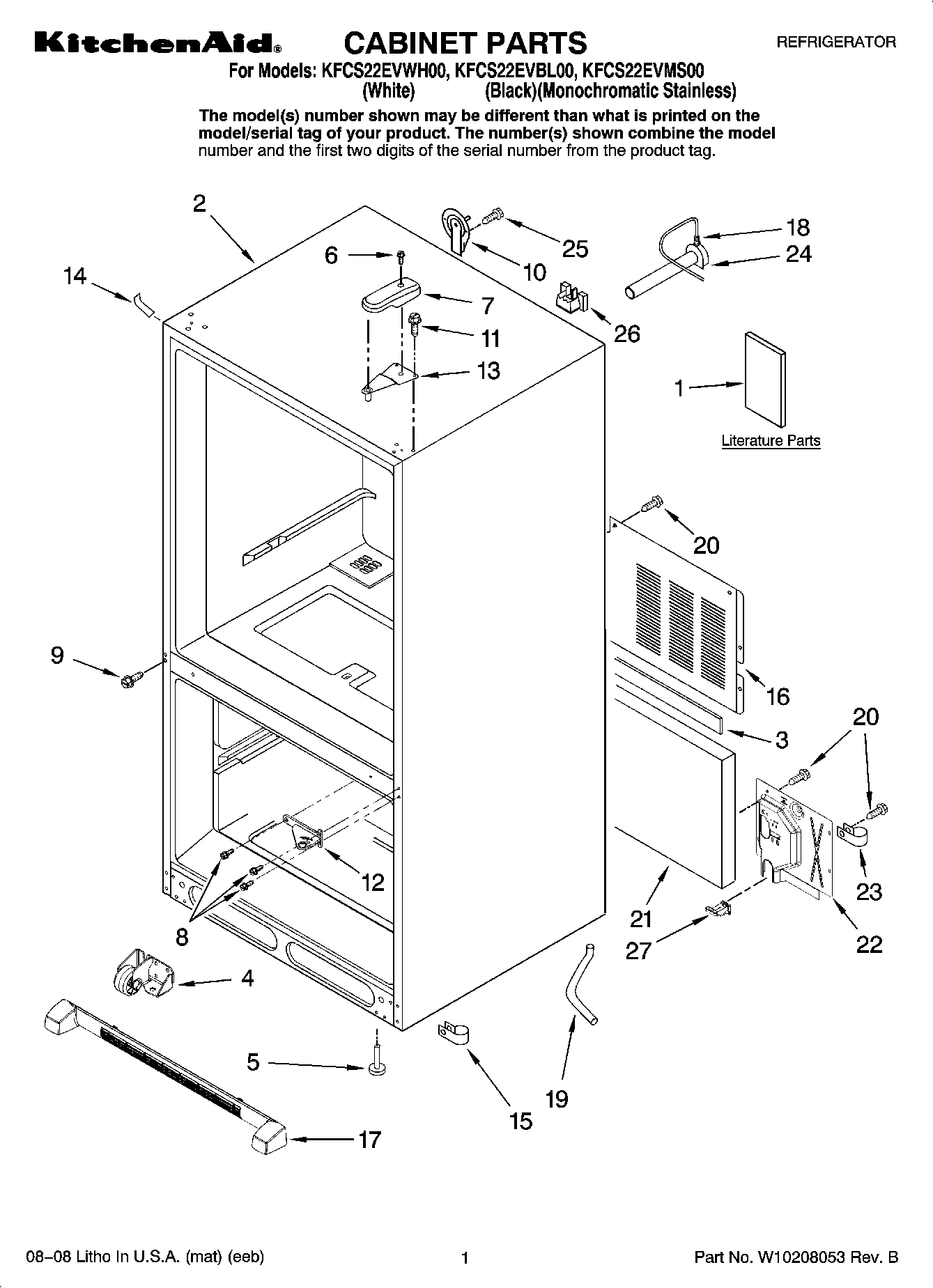

KFCS22EVBL00 01 – CABINET PARTS

KFCS22EVBL00 01 – CABINET PARTS

Written by

in

KFCS22EVBL00 01 – CABINET PARTS

Products

PositionProduct
1Tech Sheet
1TAG, ENERGY
1Use & Care Guide
2Cabinet (Not A Servicable Part)
3Gasket
4WPW10515763 Whirlpool Refrigerator Cabinet Roller
4WPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10141622 Whirlpool Leveler
6WP8281196 Whirlpool Screw
7W10892762 Whirlpool Refrigerator Cover
7W10153131 Whirlpool Refrigerator Cover
7W10163247 Whirlpool Cover
7W10892761 Whirlpool Cover
7WPW10120102 Whirlpool Refrigerator Cover
7WPW10120103 Whirlpool Refrigerator Cover
8WP67006380 Whirlpool Screw
967006425 Whirlpool Refrigerator Screw
1012726003 Whirlpool Refrigerator Water Cover
11WP489349 Whirlpool Refrigerator Screw
12HINGE-DOOR
12W10210882 Whirlpool Refrigerator Door Hinge
12W10210883 Whirlpool Refrigerator Door Hinge
12W10162695 Whirlpool Refrigerator Door Hinge
12W10861742 Whirlpool Refrigerator Door Hinge
12W10162694 Whirlpool Door Hinge
13W10892768 Whirlpool Refrigerator Door Hinge
13W10210891 Whirlpool Refrigerator Door Hinge
1467003485 Whirlpool Refrigerator Corner Cover (Black)
1467003484 Whirlpool Refrigerator White Corner Cover
15Clip, Drain Tube
16Cover, Unit
17Grille Assembly (Includes Clips) (White)
17WPW10131134 Whirlpool Refrigerator Front Grille
18WPM0114003 Whirlpool Microwave Speed Clip Clamp
19W10164397 Whirlpool Refrigerator Drain Tube
2167003796 Whirlpool Refrigerator Fiber Acoustic
22Cover, Water Valve
23W10833902 Whirlpool Refrigerator Clamp
24W11176463 Whirlpool Refrigerator Water Tube
25WP98165 Whirlpool Screw
26WP12777701 Whirlpool Refrigerator Filler Block
2712831101 Whirlpool Refrigerator Tube Clamp
