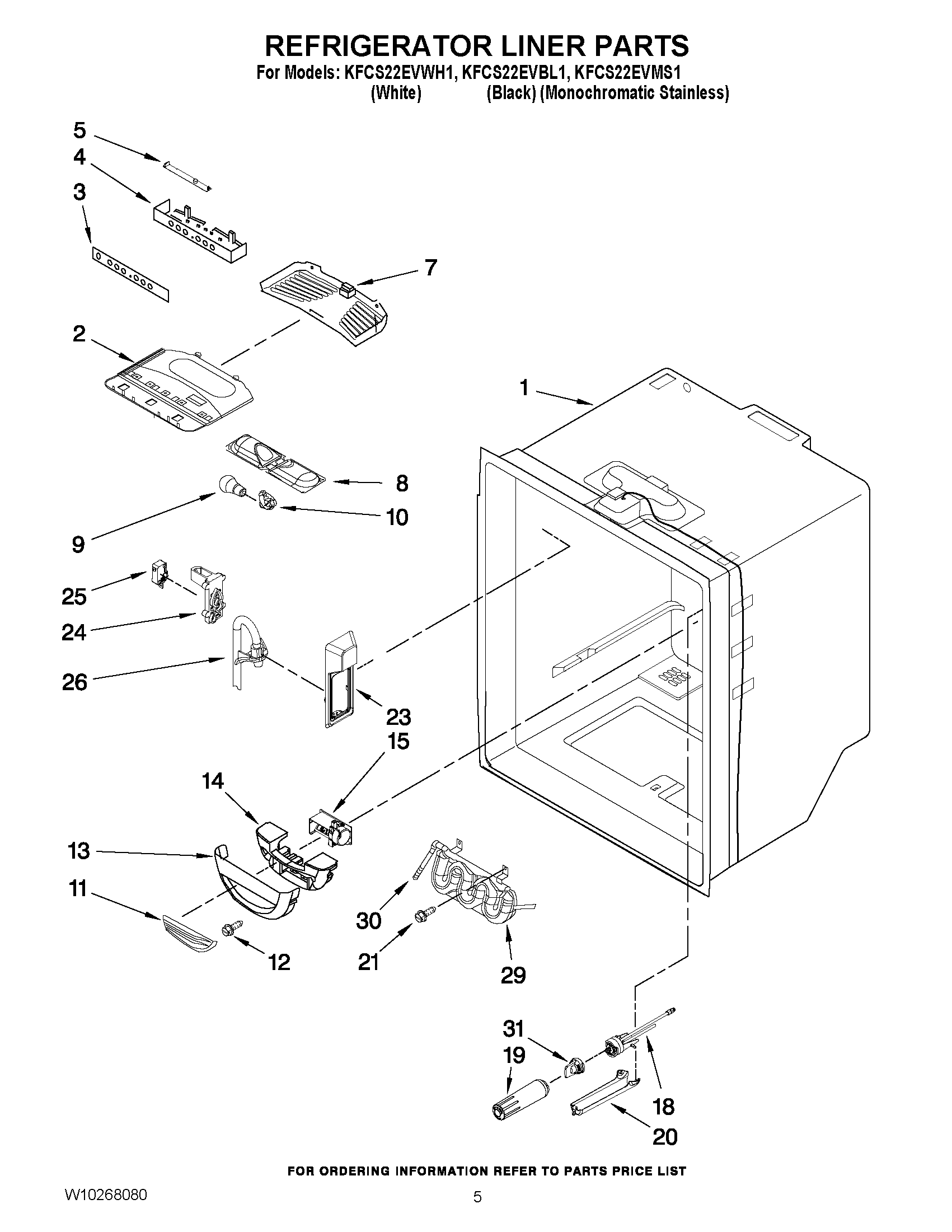

KFCS22EVBL1 03 – REFRIGERATOR LINER PARTS

KFCS22EVBL1 03 – REFRIGERATOR LINER PARTS

Written by

in

KFCS22EVBL1 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIWPW10119821 Whirlpool Refrigerator Wire Harness
1CABINET (NOT A SERVICEABLE PART)
2Module, Light
3OVERLAY
4W11416469 Whirlpool Refrigerator Housing
5WPW10116216-includeCORE Whirlpool WPW10116216 Refrigerator Electronic Control Board + Core
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL DAMPER
18W11346623 Whirlpool Refrigerator Water Filter Head
19everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20WP67006331 Whirlpool Refrigerator Water Filter Cover
21WP98165 Whirlpool Screw
24W11243624 Whirlpool Refrigerator Cover
25WP12575502 Whirlpool Refrigerator Switch
26W10117324 Whirlpool Refrigerator Ice Guide
29W11229977 Whirlpool Refrigerator Reservoir
30WP2300868 Whirlpool Refrigerator Fitting
31W11395888 Whirlpool Refrigerator Bypass Filter Cap
