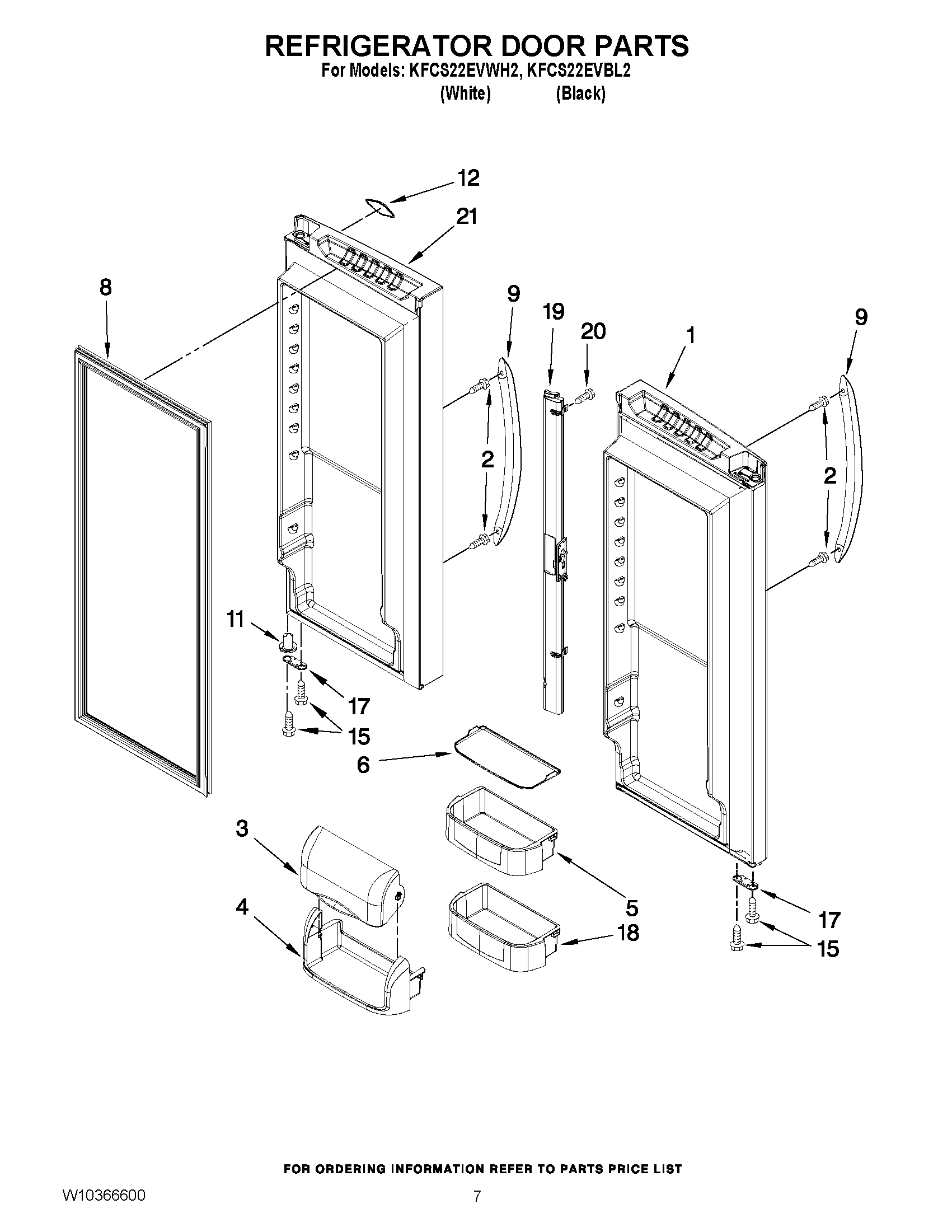

KFCS22EVBL2 04 – REFRIGERATOR DOOR PARTS

KFCS22EVBL2 04 – REFRIGERATOR DOOR PARTS

Written by

in

KFCS22EVBL2 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (WHITE)
1DOOR, LEFT (BLACK)
2WPW10661886 Whirlpool Refrigerator Door Handle Screw
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10119841 Whirlpool Cantilever Bin
6W11510594 Whirlpool Refrigerator Mat
6W11510593 Whirlpool Refrigerator Mat
8W11403914 Whirlpool Door Gasket
8GASKET-FIP
9WPW10314515 Whirlpool Refrigerator Handle
9HANDLE, DOOR (BLACK)
11WP67003638 Whirlpool Closing Cam
11WP67003639 Whirlpool Refrigerator Closer
12WPW10243393 Whirlpool Dishwasher Nameplate
12WPW10243392 Whirlpool Dishwasher Nameplate
15WP98165 Whirlpool Screw
17W10153126 Whirlpool Refrigerator Door Stop
17W10163249 Whirlpool Refrigerator Door Stop
18WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
19W11177241 Whirlpool Refrigerator Mullion Rail
19W11177230 Whirlpool Refrigerator Mullion Rail
20W11311945 Whirlpool Refrigerator Screw
2113094739BQ Whirlpool Refrigerator Black Foam In Place Doorack
2113094739WQ Whirlpool Refrigerator Foam Assembly
