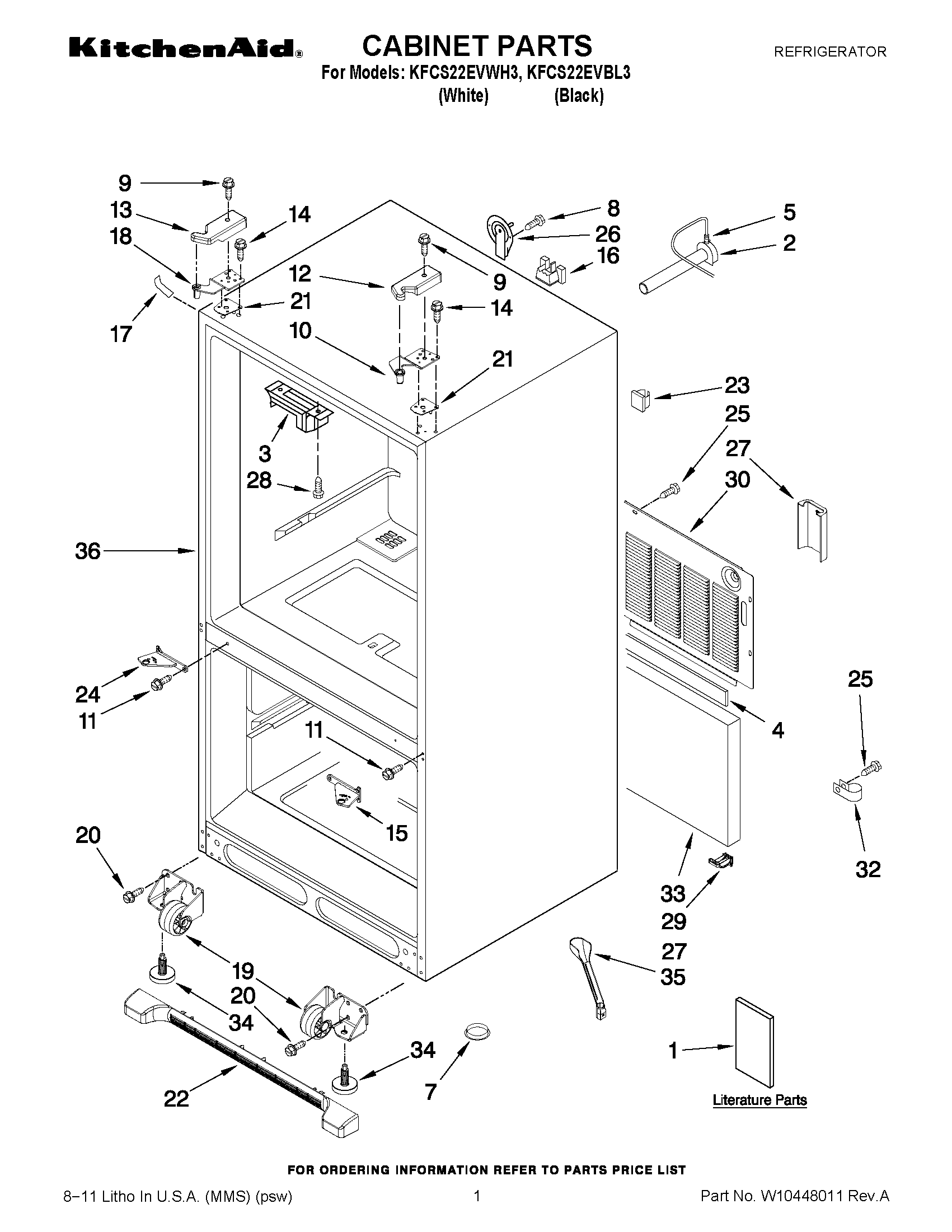

KFCS22EVBL3 01 – CABINET PARTS

Products

PositionProduct
1TAG, ENERGY
1OWNERS MANUAL
1TECH SHEET
2W11176463 Whirlpool Refrigerator Water Tube
3W11024160 Whirlpool Refrigerator Breaker Trim
4B5759655 Whirlpool Refrigerator Gasket
5WPM0114003 Whirlpool Microwave Speed Clip Clamp
7A3076901 Whirlpool Refrigerator Plug
8WP98165 Whirlpool Screw
912992603 Whirlpool Refrigerator Screw
10W10210891 Whirlpool Refrigerator Door Hinge
11WP67006380 Whirlpool Screw
12W10163247 Whirlpool Cover
12W10153131 Whirlpool Refrigerator Cover
13W10892762 Whirlpool Refrigerator Cover
13W10892761 Whirlpool Cover
14WP489349 Whirlpool Refrigerator Screw
15W10210883 Whirlpool Refrigerator Door Hinge
15W10162695 Whirlpool Refrigerator Door Hinge
16WP12777701 Whirlpool Refrigerator Filler Block
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18W10892768 Whirlpool Refrigerator Door Hinge
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534154 Whirlpool Refrigerator Front Grille
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23WPM0104106 Whirlpool Refrigerator Clip
24W10162694 Whirlpool Door Hinge
24W10210882 Whirlpool Refrigerator Door Hinge
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W10854958 Whirlpool Refrigerator Screw
2912831101 Whirlpool Refrigerator Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
32W10833902 Whirlpool Refrigerator Clamp
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35W10619951 Whirlpool Drain Tube with Grommet
36CABINET (NOT A SERVICEABLE PART)
