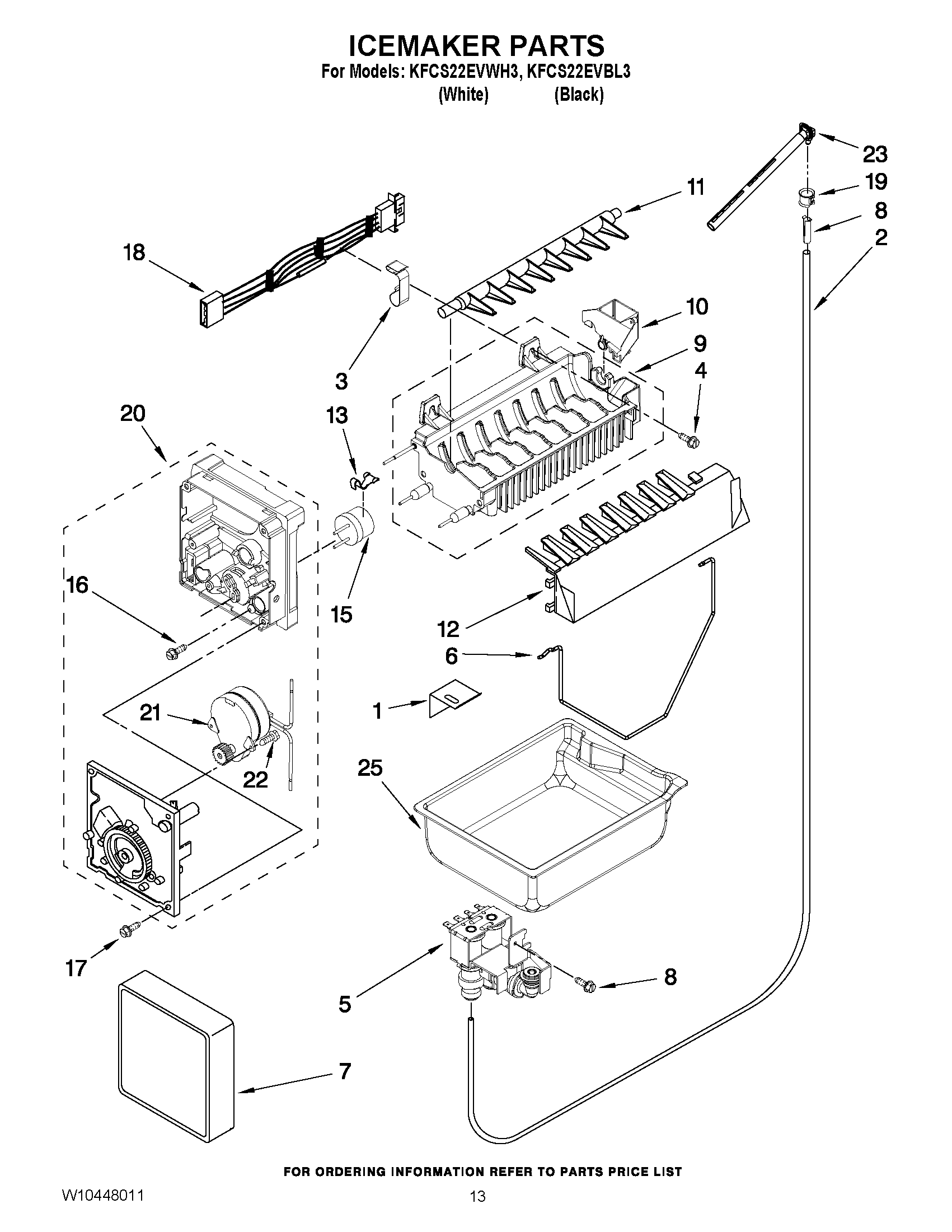

KFCS22EVBL3 07 – ICEMAKER PARTS

Products

PositionProduct
1WP2256087 Whirlpool Refrigerator Bracket
2W11120581 Whirlpool Refrigerator Water Tube
3Clamp
4WP681249 Whirlpool Screw Assembly
5VALVE-WATER INLET REFR
6WPW10378255 Whirlpool Refrigerator Shut Off Arm
7W10460383 Whirlpool Refrigerator Front Cover
8WPA3223101 Whirlpool Refrigerator Insert PL
9WPW10300025 Whirlpool Refrigerator Ice Mold
10W10410073 Whirlpool Fill Cup Assembly
11W10318914 Whirlpool Refrigerator Ejector Arm
12WPW10122563 Whirlpool Refrigerator Stripper Arm
13WP628379 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP489464 Whirlpool Refrigerator Screw
18WPW10458985 Whirlpool Wire Harness
19WPM0114003 Whirlpool Microwave Speed Clip Clamp
20WPW10281342 Whirlpool Refrigerator Motor Module
21CABINET (NOT A SERVICEABLE PART)
22W10001240 Whirlpool Refrigerator Screw
23W11176463 Whirlpool Refrigerator Water Tube
25W10120005 Whirlpool Refrigerator Ice Pan
100W10884390 Whirlpool Refrigerator Ice Maker Assembly
