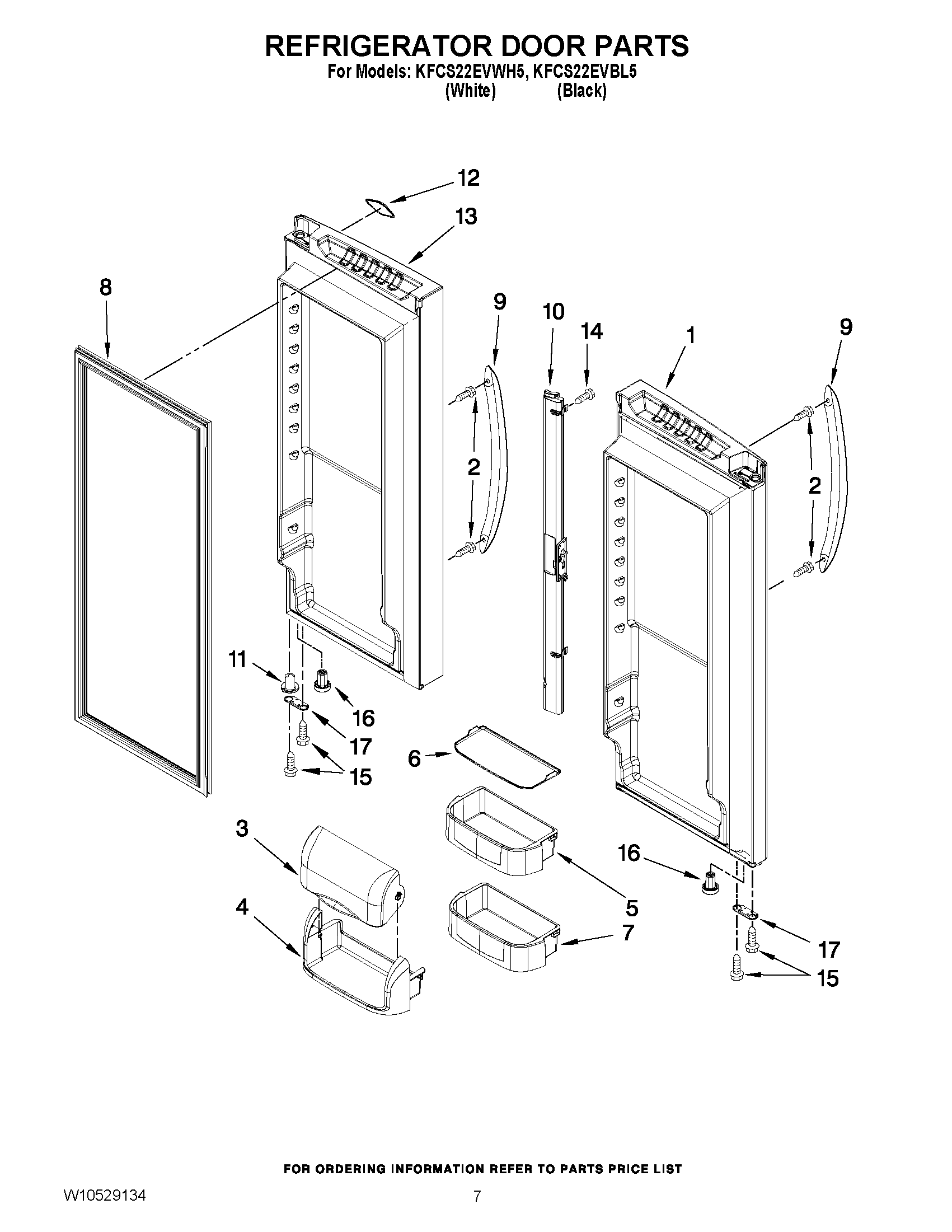

KFCS22EVBL5 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13094745WQ Whirlpool Refrigerator Door FIP White
1	DOOR, REFRIGERATOR (BLACK, LH)
2	WPW10661886 Whirlpool Refrigerator Door Handle Screw
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10119841 Whirlpool Cantilever Bin
6	W11510594 Whirlpool Refrigerator Mat
6	W11510593 Whirlpool Refrigerator Mat
7	WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
8	GASKET-FIP
8	W11403914 Whirlpool Door Gasket
9	WPW10314515 Whirlpool Refrigerator Handle
9	HANDLE, DOOR (BLACK)
10	W11177230 Whirlpool Refrigerator Mullion Rail
10	W11177241 Whirlpool Refrigerator Mullion Rail
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	WPW10243393 Whirlpool Dishwasher Nameplate
12	WPW10243392 Whirlpool Dishwasher Nameplate
13	13094739BQ Whirlpool Refrigerator Black Foam In Place Doorack
13	13094739WQ Whirlpool Refrigerator Foam Assembly
14	W11311945 Whirlpool Refrigerator Screw
15	WP98165 Whirlpool Screw
16	12028601W Whirlpool Refrigerator Hinge Bushing
16	WP67002731 Whirlpool Refrigerator Door Bushing
17	W10153126 Whirlpool Refrigerator Door Stop
17	W10163249 Whirlpool Refrigerator Door Stop
