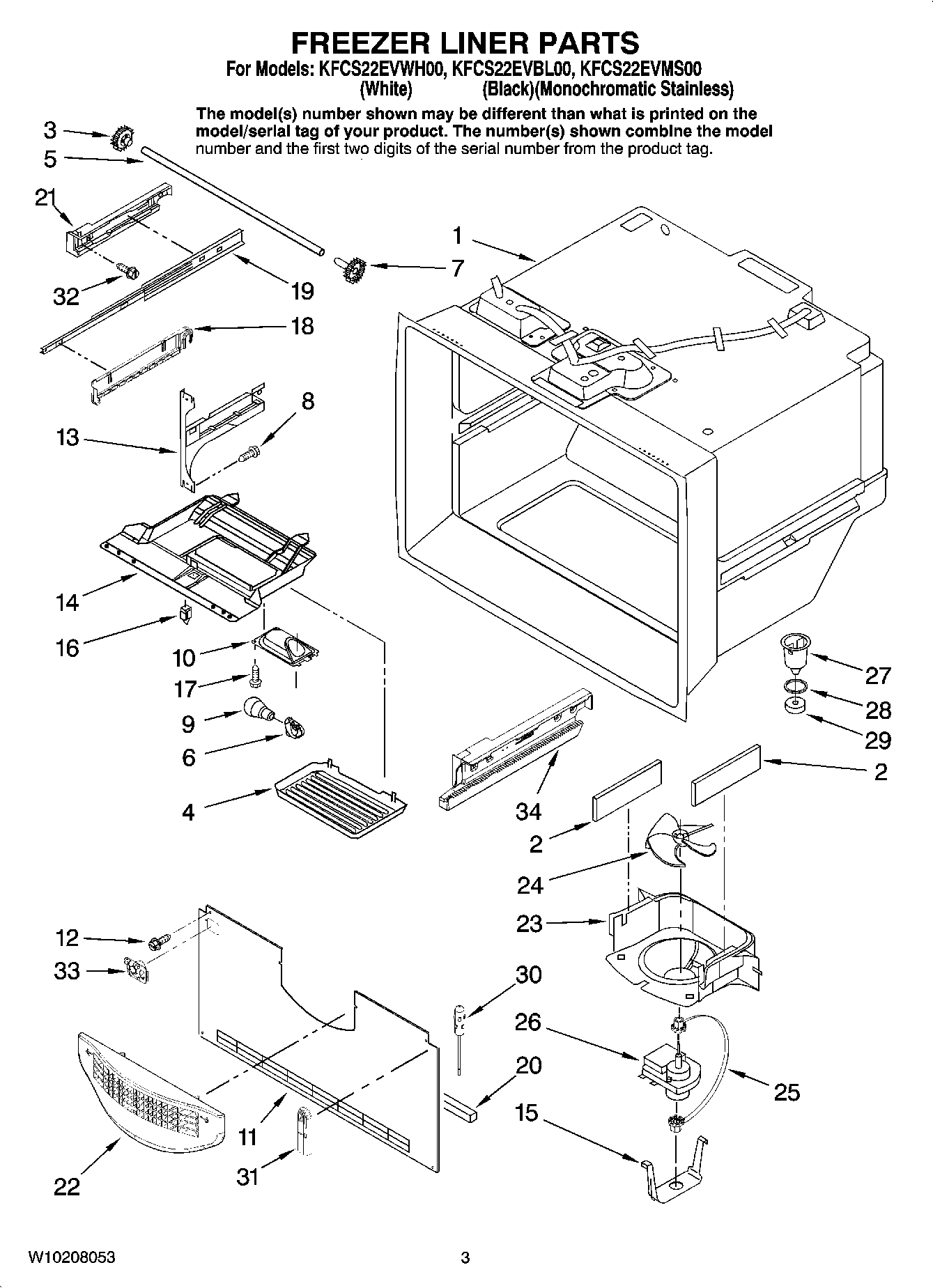

KFCS22EVMS00 02 – FREEZER LINER PARTS

Products

Position	Product
	Following Parts Not Illustrated
	W10196195 Whirlpool Refrigerator Wire Harness
1	Liner (Not A Seviceable Part)
2	W10856123 Whirlpool Refrigerator Gasket
4	Cover, Light
5	W11715937 Whirlpool Shaft
6	W11447232 Whirlpool Refrigerator Socket
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	WP98165 Whirlpool Screw
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	Housing, Light
11	W10308420 Whirlpool Refrigerator Evaporator Cover
12	67006425 Whirlpool Refrigerator Screw
13	WPW10330993 Whirlpool Refrigerator Bracket
13	WPW10330991 Whirlpool Refrigerator Bracket
14	W11712699 Whirlpool Housing
16	W11396033 Whirlpool Refrigerator Rocker Switch
17	W10709797 Whirlpool Refrigerator Screw
18	W10119849 Whirlpool Refrigerator Bracket Assembly
18	W10119848 Whirlpool Refrigerator Bracket
19	W11658403 Whirlpool Slide
20	W11159742 Whirlpool Refrigerator Gasket
21	W10163087 Whirlpool Refrigerator Bracket
21	W10163084 Whirlpool Refrigerator Bracket
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25	W11690160 Whirlpool Grommet
26	MOTOR-EVAP
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
30	W11132993 Whirlpool Wire Harness
31	WP67003924 Whirlpool Refrigerator Cover
32	WP489474 Whirlpool Refrigerator Screw
33	GUIDE-FILL TUBE
34	WPW10544404 Whirlpool Refrigerator Bracket
34	Adaptor, Shelf (Left Hand)
