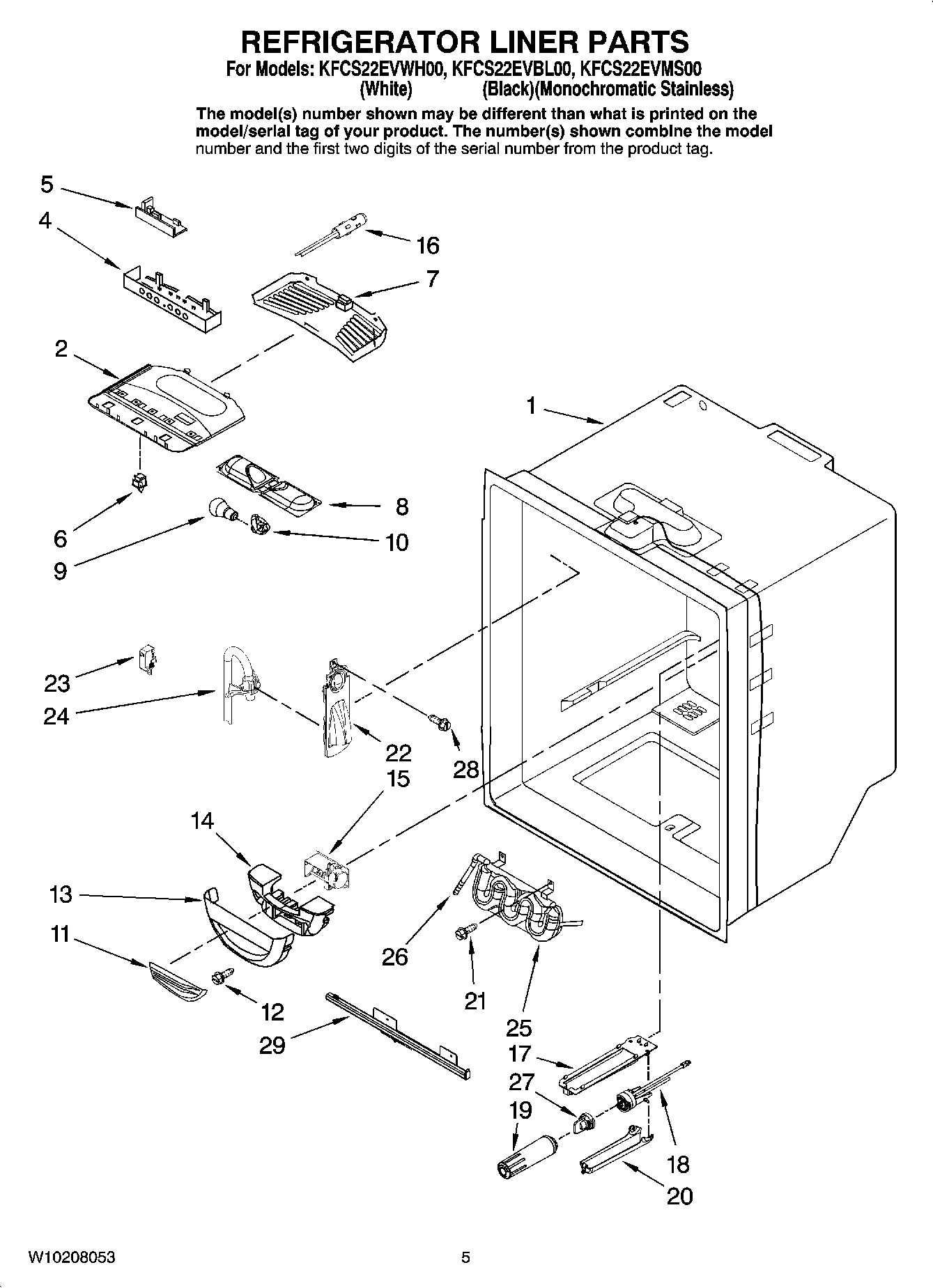

KFCS22EVMS00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
	Following Parts Not Illustrated
	WPW10119821 Whirlpool Refrigerator Wire Harness
1	Liner (Not A Serviceable Part)
2	Module, Light
4	Module, Control
5	WPW10116216-includeCORE Whirlpool WPW10116216 Refrigerator Electronic Control Board + Core
6	W11291138 Whirlpool Refrigerator Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	CONTROL DAMPER
16	W11690896 Whirlpool Thermistor
17	67006325 Whirlpool Filter Base Bracket
18	Head, Filter
19	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20	WP67006331 Whirlpool Refrigerator Water Filter Cover
21	WP98165 Whirlpool Screw
22	W11243624 Whirlpool Refrigerator Cover
23	WP12575502 Whirlpool Refrigerator Switch
24	W10117324 Whirlpool Refrigerator Ice Guide
25	W11361728 Whirlpool Reservoir Assembly
26	WP2300868 Whirlpool Refrigerator Fitting
27	Plug, Bypass
28	67006425 Whirlpool Refrigerator Screw
29	2302953 Whirlpool Refrigerator Slide
29	2302952 Whirlpool Refrigerator Slide
