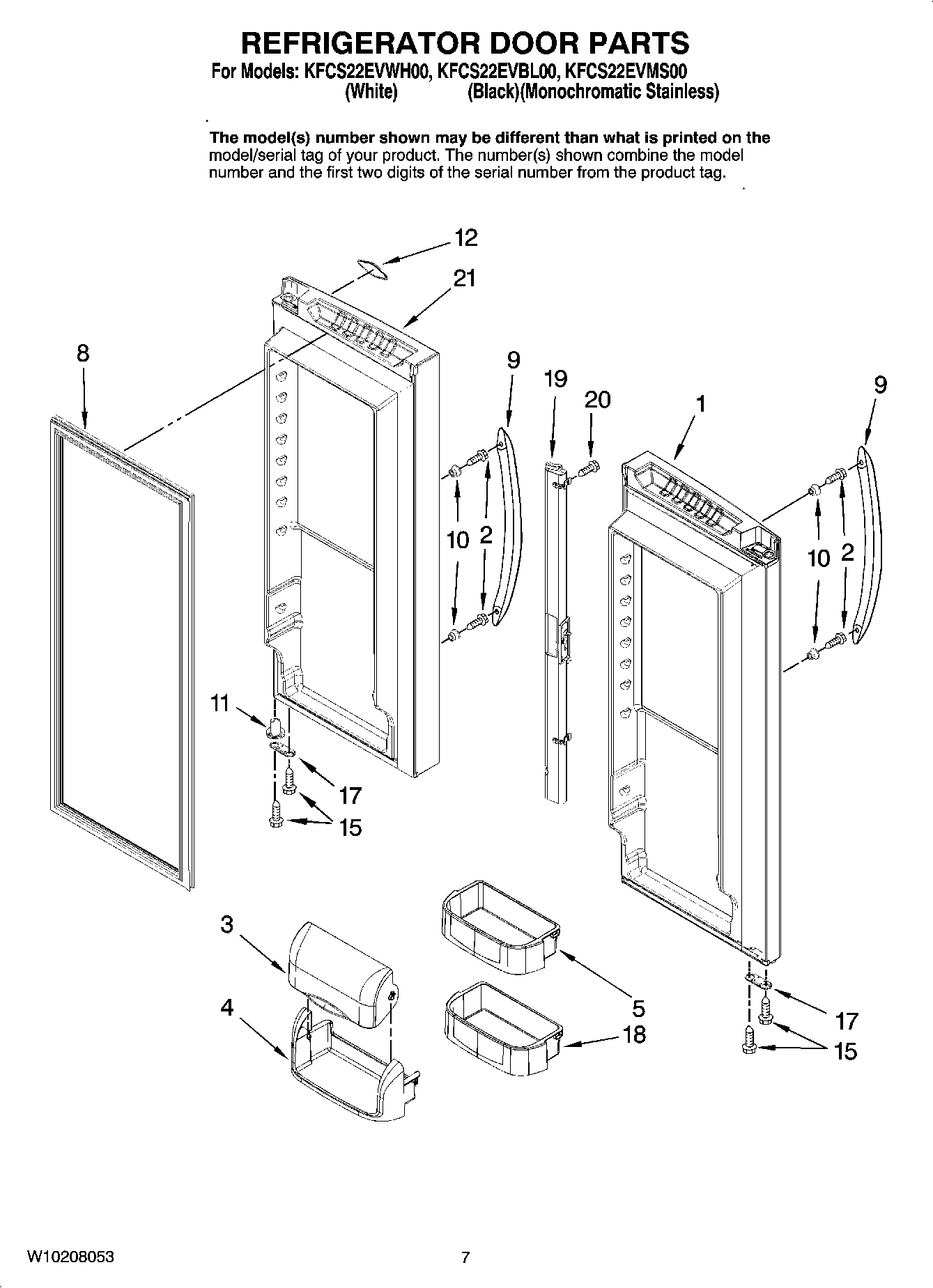

KFCS22EVMS00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (White, LH)
1	Door, Refrigerator (Black, LH)
1	Door, Refrigerator (Stainless, LH)
2	67006901 Whirlpool Refrigerator Screw
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10451453 Whirlpool Refrigerator Cantilever Bin
8	W11403914 Whirlpool Door Gasket
8	WPW10436248 Whirlpool Door Gasket
9	WP2319727B Whirlpool Refrigerator Handle
9	WP2319727W Whirlpool Refrigerator Handle
9	Handle, Door (Stainless Steel)
10	WP67006113 Whirlpool Stud Bolt
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	WPW10243392 Whirlpool Dishwasher Nameplate
12	NAMEPLATE
12	WPW10243393 Whirlpool Dishwasher Nameplate
15	WP98165 Whirlpool Screw
17	WPW10120097 Whirlpool Refrigerator Door Stop
17	W10153126 Whirlpool Refrigerator Door Stop
17	W10163249 Whirlpool Refrigerator Door Stop
18	WPW10451454 Whirlpool Refrigerator Cantilever Bin
19	W11177230 Whirlpool Refrigerator Mullion Rail
19	W11177241 Whirlpool Refrigerator Mullion Rail
19	W11177238 Whirlpool Refrigerator Mullion Rail
20	W11311945 Whirlpool Refrigerator Screw
21	Door, Right (Stainless)
21	Door, Right (Black)
21	Door, Right (White)
