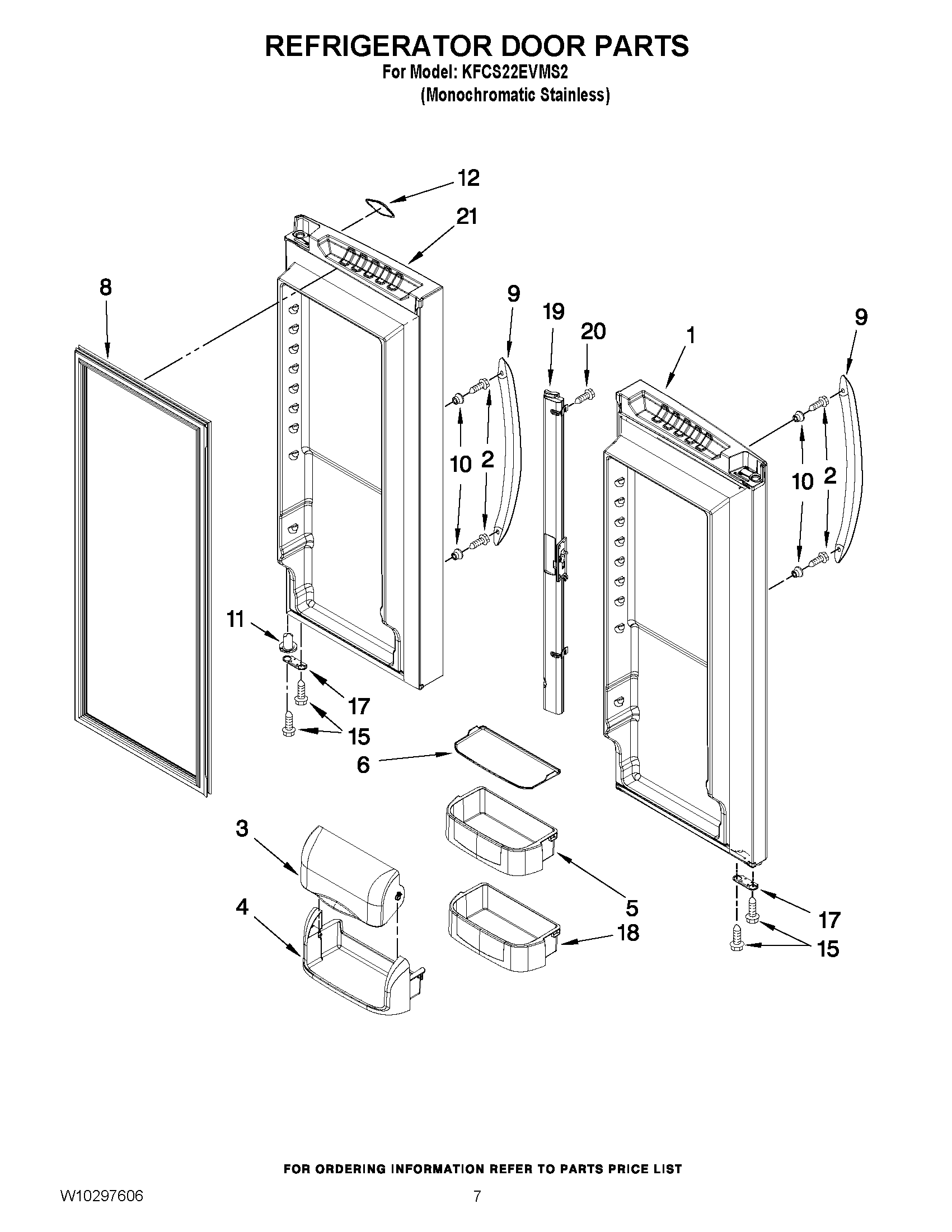

KFCS22EVMS2 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (STAINLESS, LH)
2	WP3387230 Whirlpool Screw
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10451453 Whirlpool Refrigerator Cantilever Bin
6	W11510593 Whirlpool Refrigerator Mat
6	W11510594 Whirlpool Refrigerator Mat
8	SEAL REFER
9	WPW10314517K Whirlpool Refrigerator Handle
10	MOUNT, HANDLE
11	WP12028505AP Whirlpool Closing Cam
12	NAMEPLATE
15	WP98165 Whirlpool Screw
17	WPW10120097 Whirlpool Refrigerator Door Stop
18	WPW10451454 Whirlpool Refrigerator Cantilever Bin
19	W11177238 Whirlpool Refrigerator Mullion Rail
20	W11311945 Whirlpool Refrigerator Screw
21	DOOR, RIGHT (STAINLESS)
