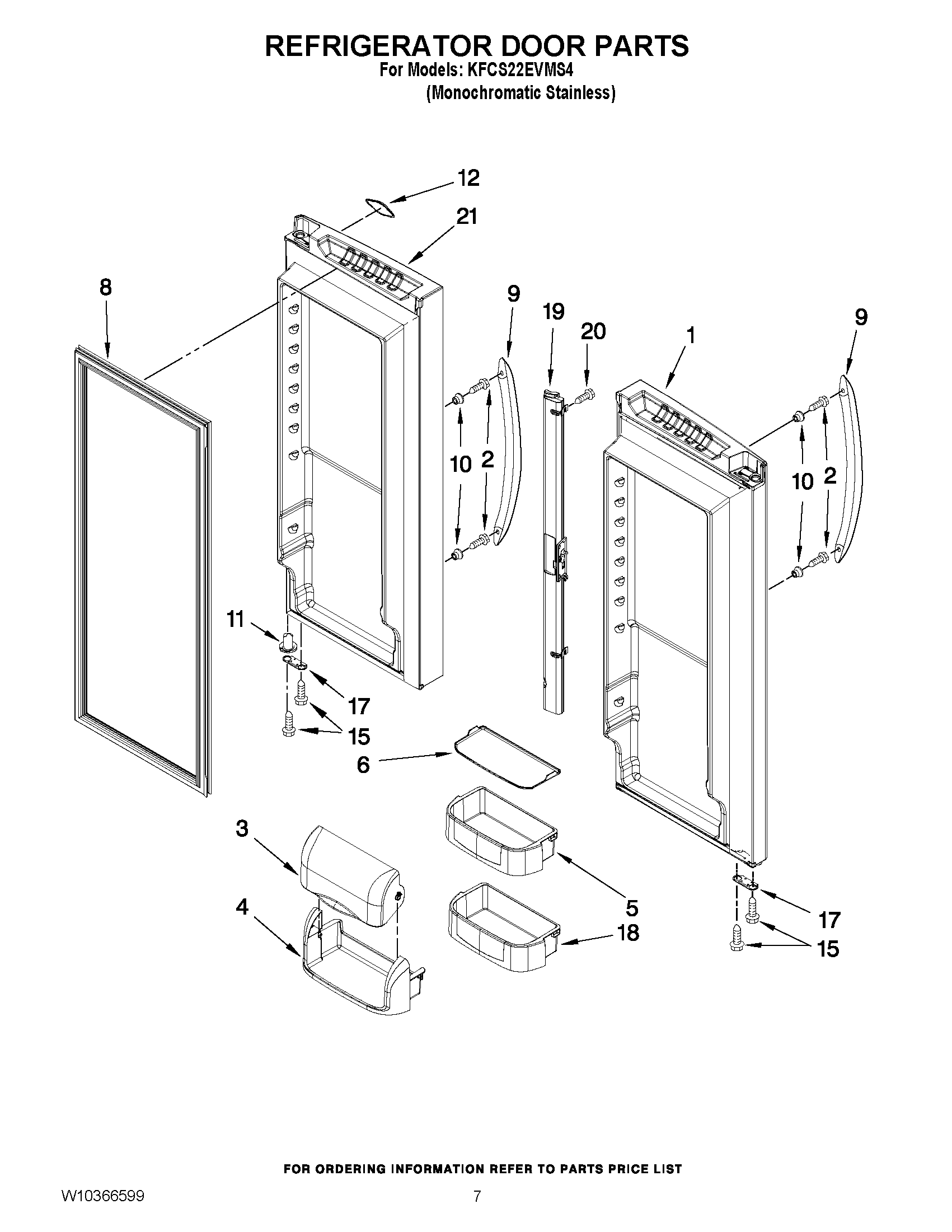

KFCS22EVMS4 04 – REFRIGERATOR DOOR PARTS

KFCS22EVMS4 04 – REFRIGERATOR DOOR PARTS

Written by

in

KFCS22EVMS4 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (STAINLESS, LH)
2SCREW
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10119841 Whirlpool Cantilever Bin
6W11510594 Whirlpool Refrigerator Mat
6W11510593 Whirlpool Refrigerator Mat
8SEAL REFER
9WPW10314517K Whirlpool Refrigerator Handle
10WP67006113 Whirlpool Stud Bolt
11WP12028505AP Whirlpool Closing Cam
12WPW10243391 Whirlpool Refrigerator Nameplate
15WP98165 Whirlpool Screw
17WPW10120097 Whirlpool Refrigerator Door Stop
18WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
19W11177238 Whirlpool Refrigerator Mullion Rail
20W11311945 Whirlpool Refrigerator Screw
21DOOR, RIGHT (STAINLESS)
