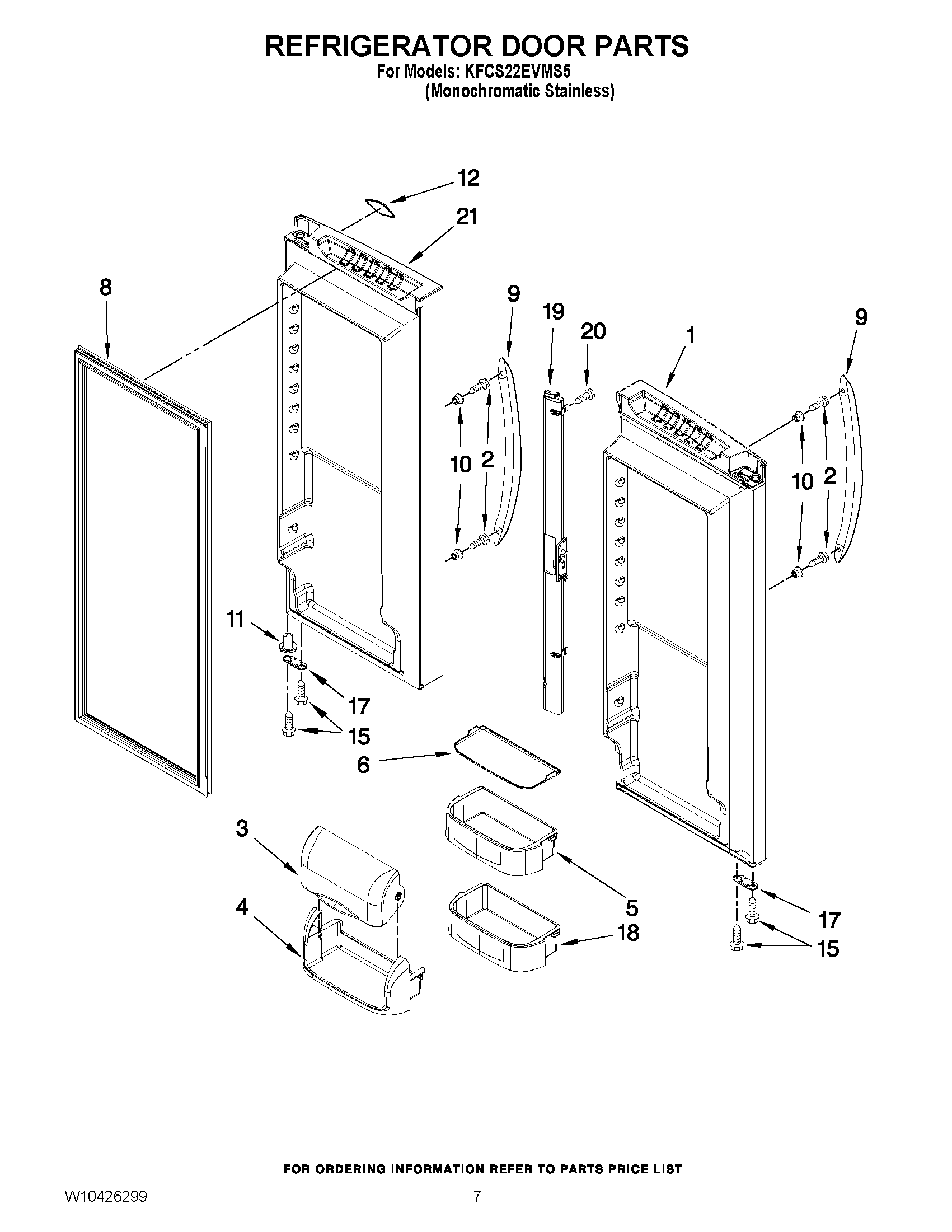

KFCS22EVMS5 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
2	SCREW
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10119841 Whirlpool Cantilever Bin
6	W11510594 Whirlpool Refrigerator Mat
6	W11510593 Whirlpool Refrigerator Mat
8	SEAL REFER
9	WPW10314517K Whirlpool Refrigerator Handle
10	WP67006113 Whirlpool Stud Bolt
11	WP12028505AP Whirlpool Closing Cam
12	WPW10243391 Whirlpool Refrigerator Nameplate
15	WP98165 Whirlpool Screw
17	WPW10120097 Whirlpool Refrigerator Door Stop
18	WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
19	W11177238 Whirlpool Refrigerator Mullion Rail
20	W11311945 Whirlpool Refrigerator Screw
21	DOOR, RIGHT (STAINLESS)
