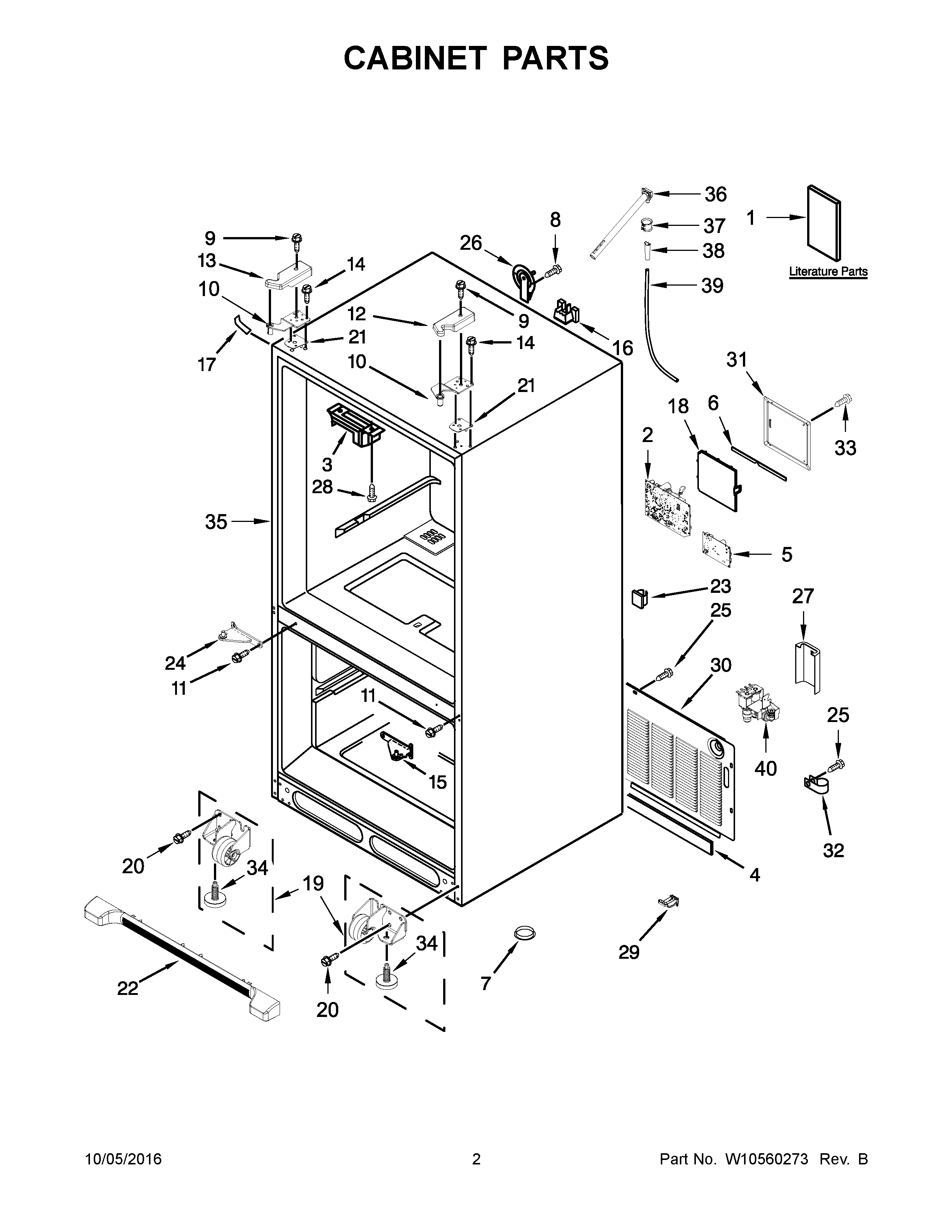

KFCS22EVMS8 02 – CABINET PARTS

Products

PositionProduct
1AOWNERS MANUAL
1BENERGY GUIDE
1TECH SHEET
2WPW10120827 Whirlpool Dryer Electronic Control Board + Core
3W11024160 Whirlpool Refrigerator Breaker Trim
4B5759655 Whirlpool Refrigerator Gasket
5WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
6GASKET, HV BOX
7A3076901 Whirlpool Refrigerator Plug
8WP98165 Whirlpool Screw
912992603 Whirlpool Refrigerator Screw
10AW10210891 Whirlpool Refrigerator Door Hinge
10W10892768 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12WPW10120103 Whirlpool Refrigerator Cover
13WPW10120102 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15HINGE-DOOR
16W11686793 Whirlpool Block
17WP12587703AP Whirlpool Refrigerator Filler
18W10296541 Whirlpool Refrigerator Wire Cover
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23WPM0104106 Whirlpool Refrigerator Clip
24W10861742 Whirlpool Refrigerator Door Hinge
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W10854958 Whirlpool Refrigerator Screw
29W10528513 Whirlpool Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
3112961602 Whirlpool Refrigerator Wire Cover
32W11456069 Whirlpool Refrigerator Clamp
33W11686675 Whirlpool Screw
34WPW10141622 Whirlpool Leveler
35CABINET (NOT A SERVICEABLE PART)
36W11176463 Whirlpool Refrigerator Water Tube
37WPM0114003 Whirlpool Microwave Speed Clip Clamp
38WPA3223101 Whirlpool Refrigerator Insert PL
39W11120581 Whirlpool Refrigerator Water Tube
40VALVE-WATER INLET REFR
