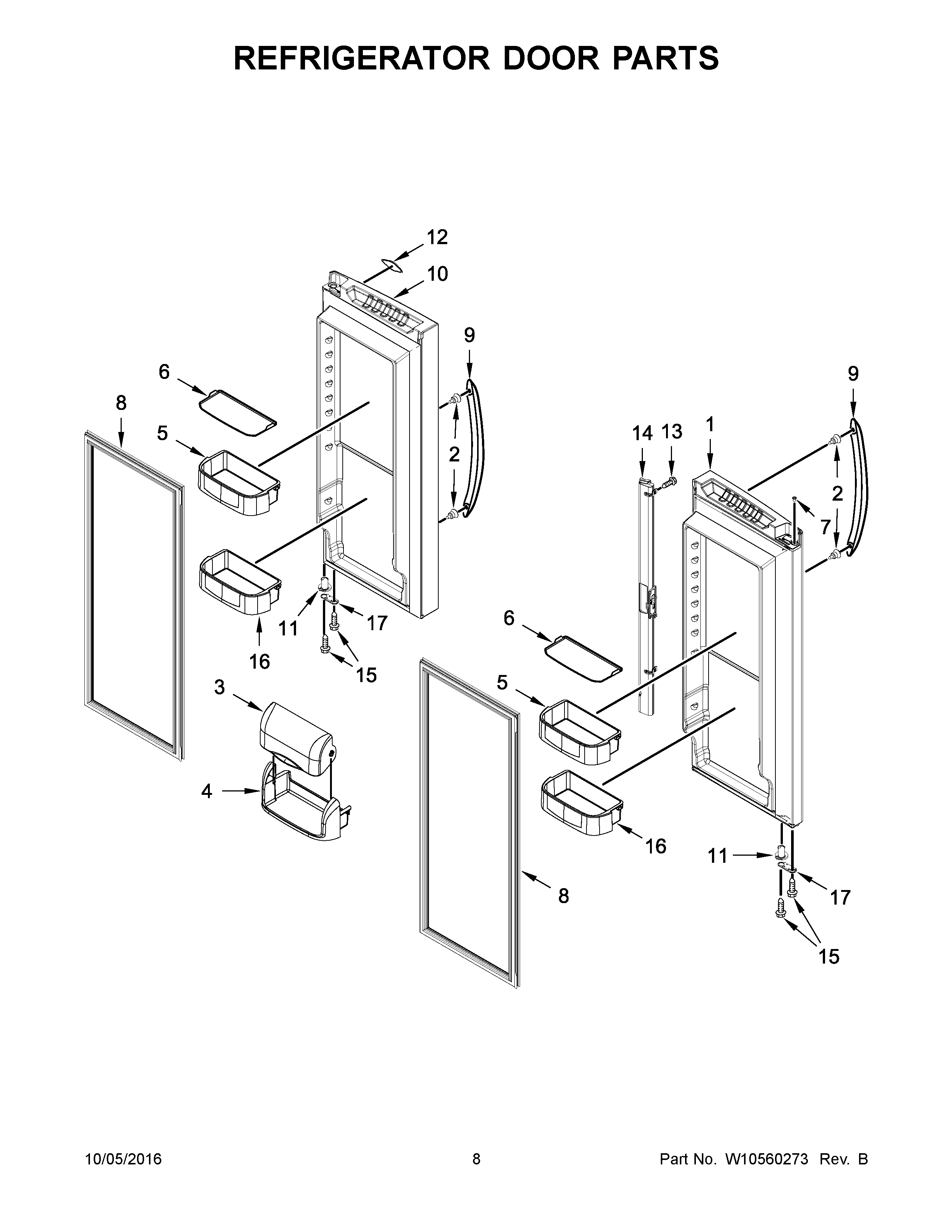

KFCS22EVMS8 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
2	WPW10661886 Whirlpool Refrigerator Door Handle Screw
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10119841 Whirlpool Cantilever Bin
6A	W11510594 Whirlpool Refrigerator Mat
6	W11510593 Whirlpool Refrigerator Mat
7	12996601 Whirlpool Refrigerator Bushing Clip
8	SEAL REFER
9	WPW10586526 Whirlpool Refrigerator Handle
10	13094742SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
11	WP12028505AP Whirlpool Closing Cam
12	WPW10243391 Whirlpool Refrigerator Nameplate
13	W11311945 Whirlpool Refrigerator Screw
14	W11177238 Whirlpool Refrigerator Mullion Rail
15	WP98165 Whirlpool Screw
16	WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
17	WPW10120097 Whirlpool Refrigerator Door Stop
